Installation Manual - TVH.2691

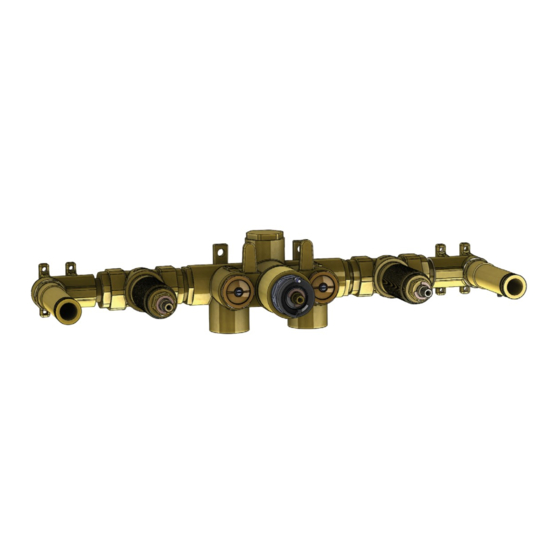

3/4" Thermostatic Tub Filler Valve With Two Volume Controls
Ver. 2.54
www.isenbergfaucets.com
Use With Trims Ending in *2691
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Advertisement
Table of Contents
Related Manuals for Isenberg TVH.2691
Summary of Contents for Isenberg TVH.2691

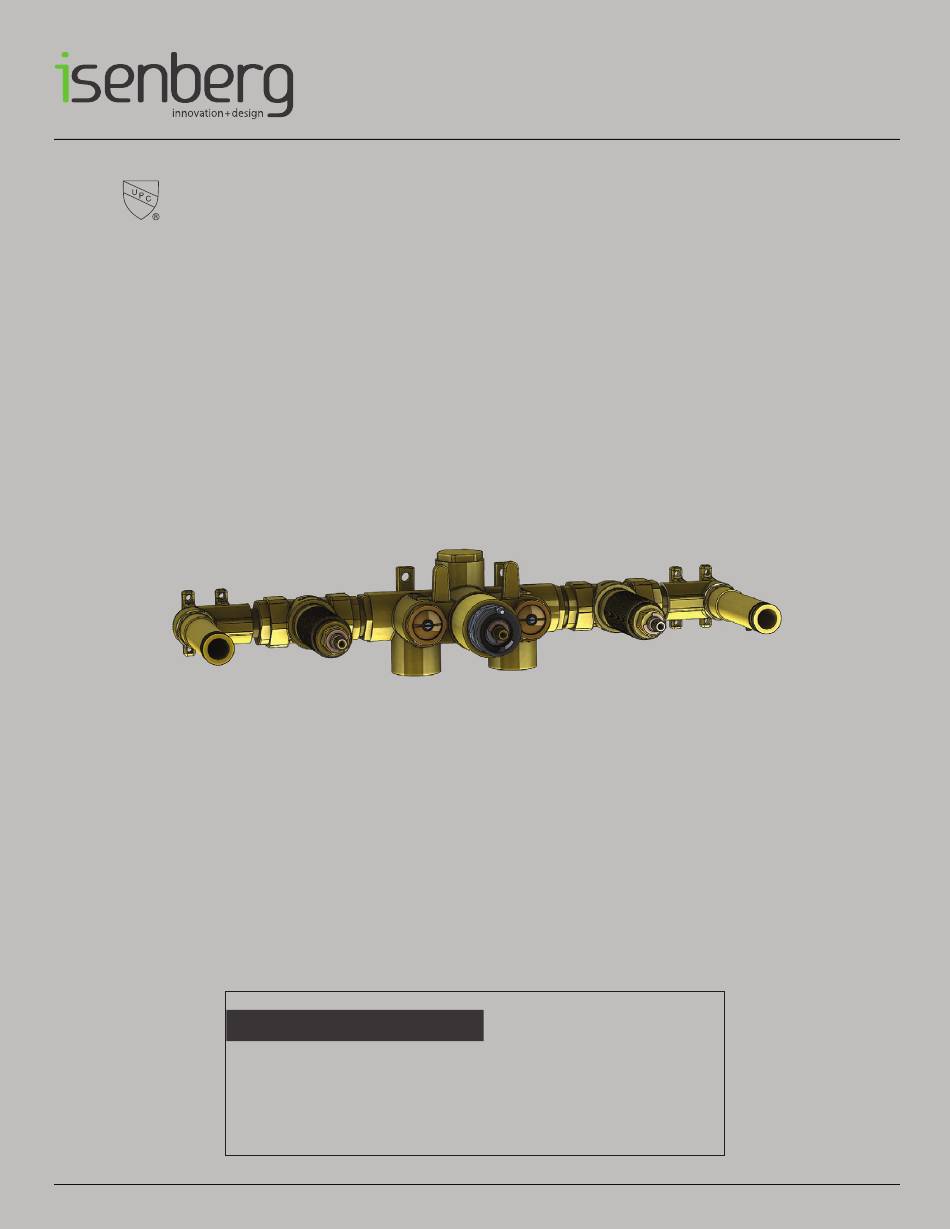

- Page 1 Installation Manual - TVH.2691 3/4” Thermostatic Tub Filler Valve With Two Volume Controls Use With Trims Ending in *2691 BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS • Operating Specifications . . . . . . . 1 • Valve Installation And Tolerance • Cut-Out Dimensions . . . . . . . • Rough In Specification . . . . . . • Connecting The Supply & Output Lines . . . . . ... -
Page 3: Operating Specifications
ONLY! If water pressure is greater than 80 PSI install a pressure reducing valve (PRV) This valve meets or exceeds ANSI A112.18.1 and ASSE 1016 This valve is certified by IAPMO CUT OUT DIMENSIONS Isenbergʼs TVH Series valves comes with a black pre-attached mud-guard. This mud-guard is not to be removed or discarded. Its purpose is to guide the installation professional on the proper cut-out dimensions of the drywall. Wall Cut Out Dimensions From Center Point of Valve: TVH.2691 X = 47mm / 1.85” Y = 417mm / 16.41” www.isenbergfaucets.com... -
Page 4: Rough In Specification
ROUGH IN SPECIFICATION Maximum = 88mm [3,46"] Minimum = 69mm [2,71"] The distance between back of the valve to the nished tile surface should be between 2.71” and 3.46” inches. Finished tile should fall between Min & Max. If valve is installed too deep into the wall, extensions are available. -
Page 5: Connecting The Supply & Output Lines
CONNECTING THE SUPPLY & OUTPUT LINES Fix Valve on wooden plank Level Valve Attach Hot/Cold Lines www.isenbergfaucets.com... -
Page 6: Trim Markings / Water Output
FINISH TILE POSITION Install Drywall and Tile. Ensure finished tile surface is between the min and max marks on the mud guards. TRIM MARKINGS / WATER OUTPUT The below diagram shows the markings on the trim plate and the outputs on the valve. This will help the installation professional to connect the appropriate accessories to the valve output ports OUTPUT1 OUTPUT2 www.isenbergfaucets.com... -
Page 7: Using The Supply Stops
USING THE SUPPLY STOPS Turn Clock-wise 7 times to stop water flow. FLUSHING THE VALVE In order to clear dirt in the lines - you must flush the valve before the wall is closed and water is turned on for the first time. 1) Remove the 2 supply stops by turning with a spanner 2) Remove thermostatic cartridge by turning with a spanner 3) Remove volume control cartridge by turning with a spanner 4) Turn on water supply and let water flow removing any dirt in the lines. www.isenbergfaucets.com... -
Page 8: Installing The Trim
INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Remove mud guards Install 42mm ring The 42mm ring must be flush. Otherwise the handle A hard push may be required will not fit properly www.isenbergfaucets.com... - Page 9 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Insert trim plate Align Trim plate till it is straight Insert adapter base and tighten Insert centering knob & screws www.isenbergfaucets.com...
- Page 10 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Insert volume handle. Tighten hex screw & insert Remove anti-scald temperature ring and reinsert cover button in correct position - see next image Caliberate cartridge before inserting temperature Correctly re-insert anti-scald temperature ring in the handle. Red marks must align. right position www.isenbergfaucets.com...
- Page 11 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Insert temperature handle. Tighten hex screw & Slide on tub spout and tighten hex screw insert cover button Slide on hand held holder and tighten hex screw Attach hose and hand shower. This photo shows a completely installed trim www.isenbergfaucets.com...
-
Page 12: Replacing The Thermostatic Cartridge
REPLACING THE THERMOSTATIC CARTRIDGE 1. Remove Anti-Scald Ring 2. The temperature cartridge can be removed easily in one operation by using a spanner. 1. Remove Threaded Rod using a spanner 2. Remove diverter flange 3. Remove cartridge by turning with a span- ner and pulling out with a pair of pliers. REPLACING THE VOLUME CARTRIDGE www.isenbergfaucets.com... -
Page 13: Replacing Supply Stops
REPLACING THE SUPPLY STOPS Use a spanner to twist in the shown position and remove supply stop www.isenbergfaucets.com... -
Page 14: Installing The Extension Kit
INSTALLING EXTENSIONS TO THE VALVE - OPTIONAL Install volume extension kit - 3 Pieces as shown Remove anti scald temperature ring above Install thermostatic handle extension and reinsert Remove output rods anti scald temperature ring www.isenbergfaucets.com... - Page 15 INSTALLING EXTENSIONS TO THE VALVE - OPTIONAL Install longer output rods Complete Extension Assembly www.isenbergfaucets.com...
-
Page 16: Cartridge Maintenance
CARTRIDGE CLEANING & MAINTENANCE Thermostatic Cartridge: Clean Filters Check For Dirt Inspect O-rings Volume Control Cartridge: Check For Dirt www.isenbergfaucets.com...
