ORIGINAL OPERATING INSTRUCTIONS

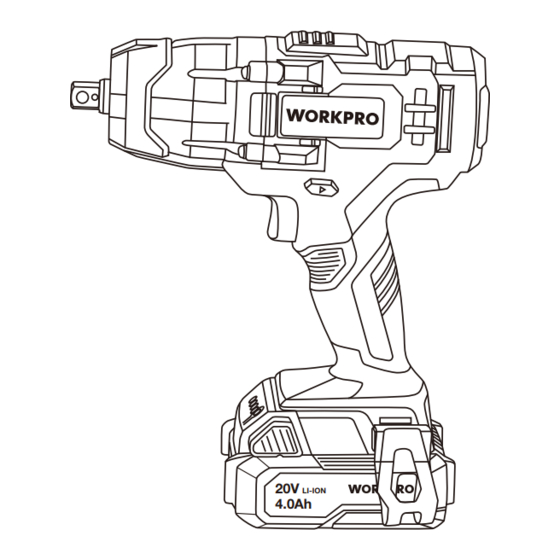

CORDLESS IMPACT WRENCH
Thank you for buying a WORKPRO cordless impact wrench. Your new impact wrench has been engineered and
manufactured to WORKPRO's high standard for dependability, ease of operation, and operator safety. Properly cared
for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual.
SAVE THIS MANUAL FOR FUTURE REFERENCE
20V
LI-ION
4.0Ah
W125063AU
P0B-WYT01-18Li
Distributed by
Hangzhou GreatStar Industrial Co., Ltd.
No.35 Jiuhuan Road, Jiubao Town,
Hangzhou 310019, China
www.greatstartools.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WorkPro W125063AU
Summary of Contents for WorkPro W125063AU
- Page 1 LI-ION 4.0Ah Thank you for buying a WORKPRO cordless impact wrench. Your new impact wrench has been engineered and manufactured to WORKPRO's high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction General power tool safety warnings Symbols Know your product Technical data Before starting the equipment Operation 9-10 Cleaning and maintenance Storing Disposal Charger indicator UKCA-Declaration of Conformity INTRODUCTION This equipment is suitable for loosening and tightening screws and nuts. The equipment is to be used only for its prescribed purpose. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS 3. Personal safety GENERAL SAFETY RULES a. Stay alert, watch what you are doing and use WARNING! common sense when operating a power tool. Do not use a power tool while you are tired or under the Read and understand all instructions. - Page 4 GENERAL POWER TOOL SAFETY WARNINGS 6. Service reduce the risk of starting the power tool acciden- tally. a. Have your power tool serviced by a qualified repair d. Store idle power tools out of the reach of children person using only identical replacement parts. This and do not allow persons unfamiliar with the power will ensure that the safety of the power tool is maintained.
- Page 5 BATTERY SAFETY charger Use only the WORKPRO batteries supplied with the Do not plug anything other than your tool into the WORKPRO Tool or WORKPRO-approved charger, as other objects may touch dangerous voltage points or short out parts, which could result replacements.
- Page 6 GENERAL POWER TOOL SAFETY WARNINGS Do not charge the battery in a place where static Stop using the battery if it exhibits abnormal heat, electricity is generated nor let the battery touch odour, colour, deformation, or is in an abnormal something that is statically charged.
-
Page 7: Symbols
SYMBOLS Danger notices and information are clearly marked Risk of injury when instructions are not followed throughout these instructions for use. The following symbols are used: Risk of electric shock Hazard symbols with information on prevention of personal injury and property Protect the tool from the damp and never damage. -
Page 8: Know Your Product
KNOW YOUR PRODUCT Fig. 1 LI-ION 4.0Ah Layout (Fig. 1) Items supplied CARTON CONTENTS 1. ½"external square drive mount Cordless Impact Wrench 2. Battery capacity indicator Battery 3. Changeover switch Charging unit 4. On/Off switch Original safety and operating instructions 5. -
Page 9: Technical Data
TECHNICAL DATA MODEL NO W125063AU CORDLESS IMPACT WRENCH Idling speed 0-2100 min Impact speed 0-3200 min Clockwise/counter-clockwise Tool chuck 12.7 mm (½") Weight(without battery 1.8 Kg Noise output level (L 107,8 dB(A), K=3 dB(A) 96,8 dB(A), K=3 dB(A) Noise pressure level(L... -
Page 10: Operation
OPERATION 2. Changeover switch (Fig. 4/Item 3) The slide switch above the ON/OFF switch is for setting the direction of rotation of the cordless impact wrench and for preventing the cordless impact wrench from 1. Charging the Li battery pack (Fig. 2-3) being switched on inadvertently. - Page 11 OPERATION Fig. 7 Fig. 5 5. LED lamp (Fig. 6/Item 7) 7. Working with the impact wrench The LED lamp (7) can be used in poor lighting Loosening: conditions to illuminate the area where you want to Mount a drive socket insert on the impact wrench screw.
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Danger! Always remove the battery pack before making adjustments to the equipment. Cleaning Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure. ... -
Page 13: Charger Indicator
CHARGER INDICATOR Indicator Status Explanations and Actions Red LED Green LED Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger. Low-current charging Quick As the battery pack voltage is under 15V, the charger is in gentle Blink charging mode, the charging current is below 0.5A.This can maximum (2Hz) -
Page 14: Ukca-Declaration Of Conformity
UKCA-DECLARATION OF CONFORMITY Herewith we, NINGBO WEILDER ELECTRIC APPLIANCE CO., LTD NO.47 DONGFENG ROAD, FENGHUA, 315500 NINGBO, ZHEJIANG, P.R.C. Declare that the following Appliance complies with the appropriate basic safety and health require- ments of the UKCA Directives(see item 4) based on its design and type, as brought into circulation by This declaration relates exclusively to the machinery in the state in which it was placed on the market, and excludes components which are added and/or operations carried out subsequently by the final user.
