Summary of Contents for WorkPro W004516A

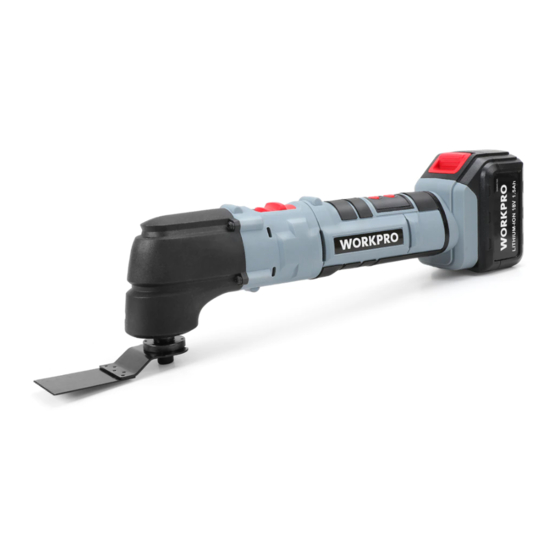

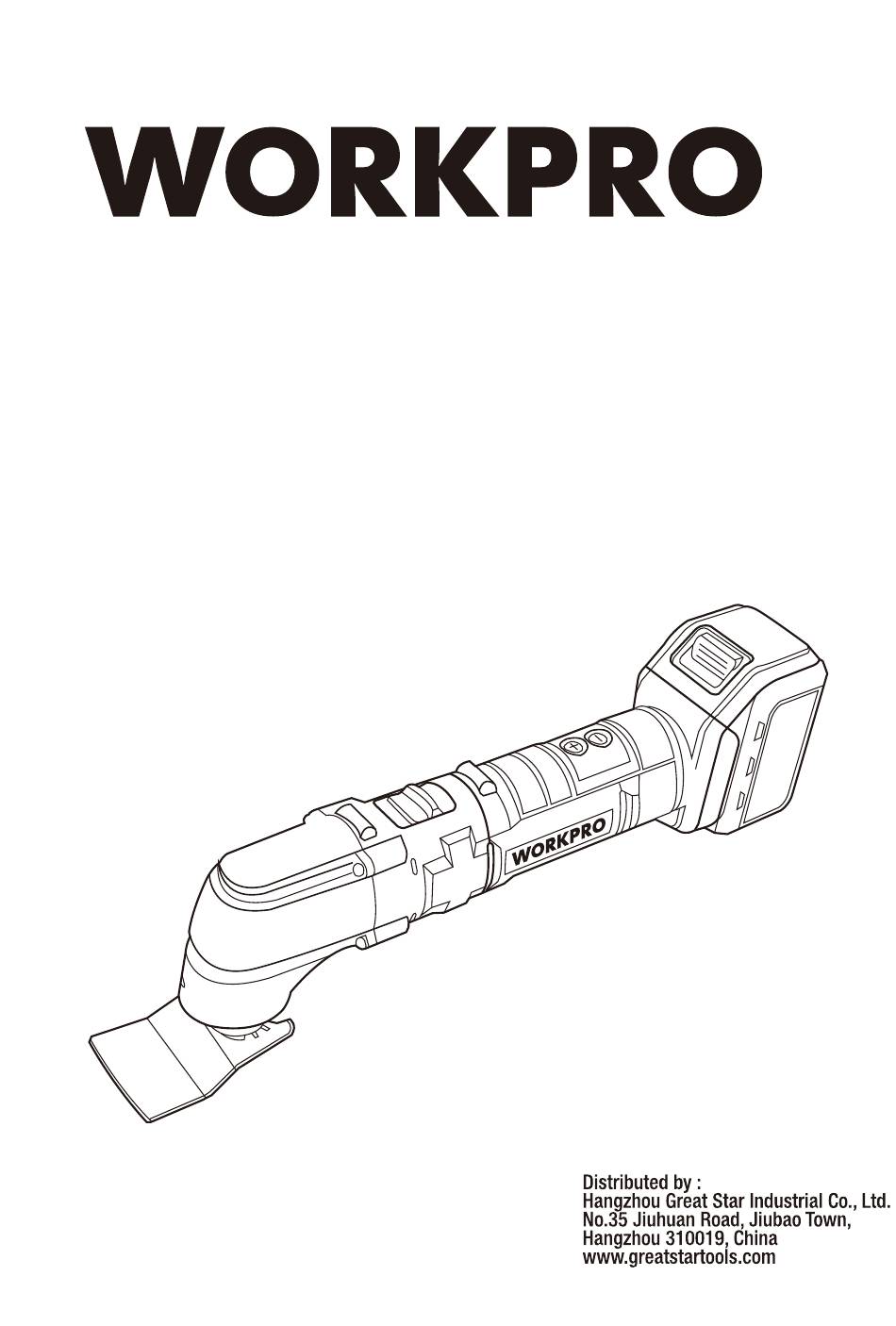

- Page 1 W004516A Multi-Function Tool...
-
Page 2: Table Of Contents
CONTENTS Caution..................Environmental protection............... Description of symbols..............General safety rules..............Additional safety instructions............Additional safety instructions for the charger........ Additional safety instructions related to the battery pack and battery safety ............... When to charge the battery............Unpacking ..................Know your product ............... Battery charging ................. -
Page 3: Caution
Manual before using your new Workpro Power Tool. Take special care to heed the Cautions and Warnings. Your Workpro power tool has many features that will make your job faster and easier. Safety, performance, and dependability have given top priority in the development of this tool, making it easy to maintain and operate. -
Page 4: General Safety Rules
GENERAL SAFETY RULES WARNING. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1) Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flamma- ble liquids, gases or dust. - Page 5 g) If devices are provided for the connection of dust extraction and collection facili- ties, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
-
Page 6: Additional Safety Instructions
ADDITIONAL SAFETY INSTRUCTIONS Wear ear protectors. Exposure to noise can cause hearing loss. Loss of control can cause personal injury. • If possible, always use clamps or a vice to hold your work piece. • Always switch off before you put the tool down. •... -
Page 7: Additional Safety Instructions For The Charger
• DANGER. If the battery pack is cracked or damaged in any other way, do not insert it in the charger • Do not plug anything other than your Workpro tool into the charger, as other objects may touch dangerous voltage points or short out parts, which could result in fire or electric shock. -
Page 8: Additional Safety Instructions Related To The Battery Pack And Battery Safety
• Use only the Workpro batteries supplied with the Workpro Tool or Workpro-approved replacements. • Do not use the battery to power any device other than the Workpro tool it was sold with. • Charge the battery only with the Workpro charger supplied with the tool or Workpro-ap- proved replacements and according to the instructions in the Workpro Instruction Manual. -
Page 9: When To Charge The Battery
UNPACKING Due to modern mass production techniques, it is unlikely that your Workpro Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate the tool until the parts have been replaced or the fault has been rectified. Failure to do so could result in... -
Page 10: Know Your Product
KNOW YOUR PRODUCT This cordless multi-function tool is designed to sand, cut or strip wood, plasterboard, plastics and metals by using accessories designed for the machine. TECHNICAL SPECIFICATIONS Multi-function tool: •No-load speed: 0-16000/min •Battery 20V Li-ion •Charging time: 3-5 hours. Noise values: •Acoustic power level:LWA=85 dB(A) Vibration value (m/s2):... -
Page 11: Battery Charging
CHARGING THE BATTERY 1. Hold the battery 9 from underneath, press on the locking clips 8 and pull the battery backwards. Batteries are sensitive to impact. Handle with care. 2. Insert battery 9 into the charger 5. 3. Plug the transformer into a standard 120V wall socket. •... -
Page 12: Fitting Sander
FITTING SANDPAPER • Fit the sandpaper support 3 onto the blade support us- ing the attachment screw and washer 6. • Position the sandpaper 4 onto the support 3. Turn off the machine before fitting an accessory. -
Page 13: Fitting A Blade
FITTING A BLADE • Fit the blade 10 on the blade support using the attach. ment screw and washer 6. • The blade should never be pointing towards the back of the machine. Stop the machine before fitting an accessory. Never point the blade towards the back of the machine. -
Page 14: Powering Up
POWERING UP • The multi-function tool is powered up by pressing switch 1 forwards, to position “ I”. • To stop the multi-function tool, press the switch to the rear, to position “O”. When powering up, keep firm hold of the machine with both hands. SPEED SELECTION •... -
Page 15: Recommendation For Use
RECOMMENDATIONS FOR USE • The machine should always be used in a covered, dry location. The ambient tempera ture should be between 40°F and 104°F. The level of humidity should be less than 60%. • The item on which you are working must be correctly secured and held in place using a suitable attachment system-especially if it is a small item or a sheet of metal.
