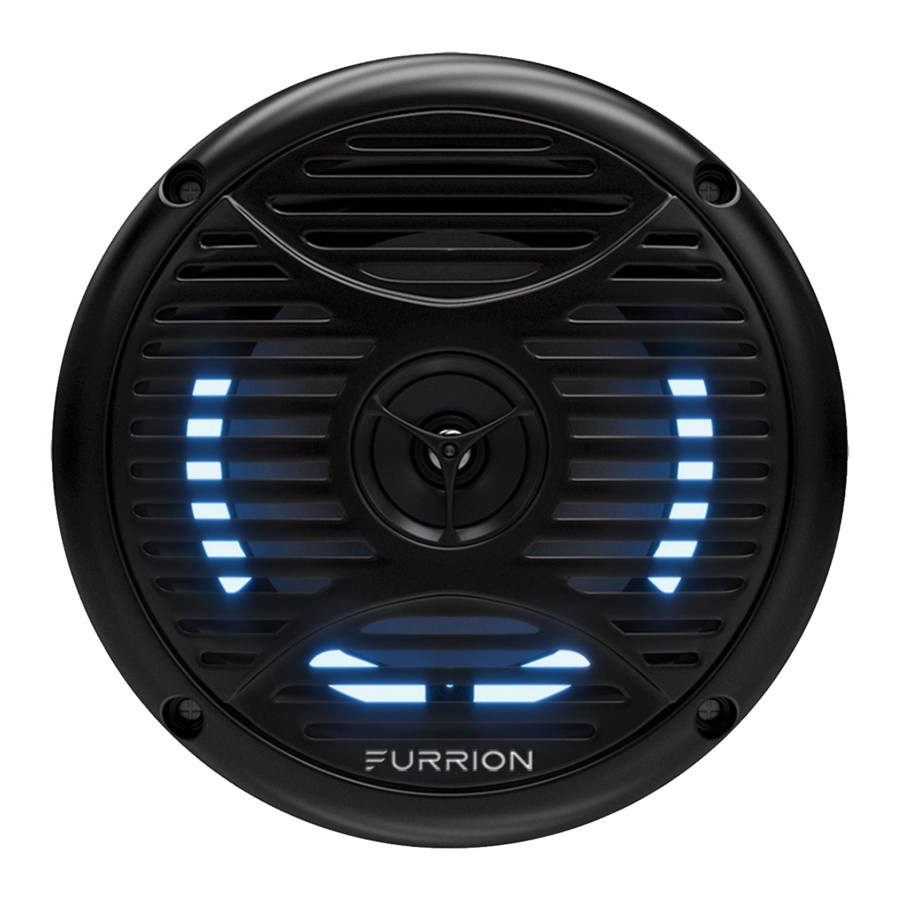

Furrion FMS5L2A-BL, FMS5L2A-PS, FMS5L2-BL, FMS5L2-Marine Speaker Manual

For your safety, please read all instructions in this manual carefully before installation and use. Keep this instruction manual for future reference. This will ensure safe use and reduce the risk of injury. If you have any further questions regarding our products, please contact us at support@furrion.com

We've organized this manual to make your installation as simple and trouble-free as possible. Please read it thoroughly before proceeding. Remember to keep your sales receipt and this manual in a safe place so both are available for future reference.

Installation

1. Select a suitable position that is not susceptible to moisture.
2. Mark and cut an opening in the wall according to the dimensions outlined in the illustration below. (Fig. A)

3. Connect the speaker LED wire to a 12V DC power supply and insulate the joints with twist caps. (Fig. B)

4. Twist the speaker LED wires and LED ring wires together and connect to a 12V DC power supply (for FMS5L2A-BL/PS only). (Fig. C)

5. Follow the + and - polarity symbols molded on the speaker to connect the speaker to the amplifier. (Fig. D)

6. Fit the speaker or speaker with LED ring in the hole and secure with 4 screws (not included). (Fig. E)

   NOTE: Make sure the Furrion logo is facing up when installing.

Circuit Diagram

Care and Maintenance

The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaner or solvents on the grilles or the speaker cones.
This product is designed for mobile applications and is not intended for connection to the mains.
