Gallagher

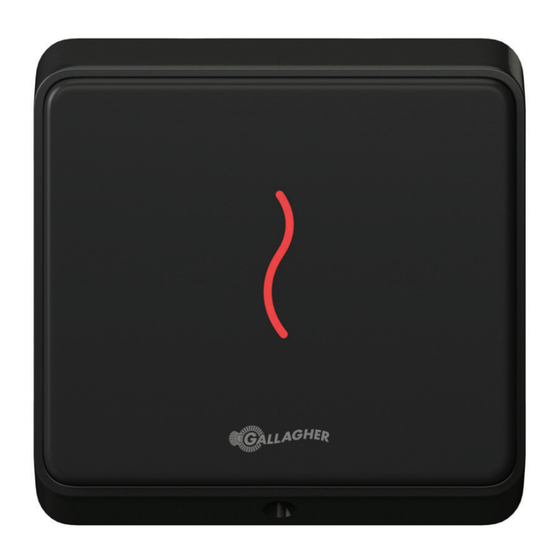

T12 Reader
Installa on Note
T12 MIFARE® Reader, Black: C300420
T12 MIFARE® Reader, White: C300421
T12 Mul Tech Reader, Black: C300440
T12 Mul Tech Reader, White: C300441
High Sec T12 Reader, Black: C305420
High Sec T12 Reader, White: C305421
T12 Mul Tech Reader, Black Not Po ed: C300440-01
3E4720 Gallagher T12 Reader | Edi on 12 | May 2023
Copyright © Gallagher Group Limited
Page 1
Advertisement
Table of Contents
Related Manuals for Gallagher T12
Summary of Contents for Gallagher T12
- Page 1 T12 Mul Tech Reader, White: C300441 High Sec T12 Reader, Black: C305420 High Sec T12 Reader, White: C305421 T12 Mul Tech Reader, Black Not Po ed: C300440-01 3E4720 Gallagher T12 Reader | Edi on 12 | May 2023 Copyright © Gallagher Group Limited Page 1...
- Page 2 Although every commercially reasonable eff ort has been taken to ensure the quality and accuracy of the informa on, Gallagher Group makes no representa on as to its accuracy or completeness and it should not be relied on as such. To the extent permi ed by law, all express or implied, or other representa ons or warran es in rela on to the informa on are expressly excluded.
-
Page 3: Table Of Contents
Moun ng dimensions ........................12 Introduc on The Gallagher T12 Reader is a smart card and Bluetooth® low energy technology reader. It can be installed as either an entry reader or exit reader. It can be mounted on a BS 4662 Bri sh Standard square fl... -
Page 4: Before You Begin
4 x 40 mm No.6 self tapping, pan head, Phillips drive fi xing screws Power supply The Gallagher T12 Reader is designed to operate at a supply voltage of 13.6Vdc measured at the reader terminals. The opera ng current draw is dependant on the supply voltage at the reader. - Page 5 Controller 6000 HBUS HBUS HBUS HBUS Device Device Device Device HBUS Module Terminate Terminate HBUS HBUS Device Device Terminate Terminate 3E4720 Gallagher T12 Reader | Edi on 12 | May 2023 Copyright © Gallagher Group Limited Page 5...
-
Page 6: Distance Between Readers
When moun ng a proximity reader on an internal wall, check that any reader fi xed to the other side of the wall is not less than 200 mm (8 in) away. 200 mm 3E4720 Gallagher T12 Reader | Edi on 12 | May 2023 Copyright © Gallagher Group Limited Page 6... -
Page 7: Installa On
The Gallagher T12 Reader is designed to be mounted on a standard Bri sh electrical fl ush box, or any solid fl at surface. However installa on on metal surfaces, par cularly those with a large surface area will reduce read range. - Page 8 An HBUS Reader connects to a Gallagher Controller 6000, Gallagher 4H/8H Module (a ached to a Controller 6000) or a Gallagher HBUS Door Module (connected to a Controller 6000). A Cardax IV Reader connects to a Gallagher Controller 6000, Gallagher 4R/8R Module (a ached to a Controller 6000) or a Gallagher GBUS Universal Reader Interface (Gallagher GBUS URI).
-
Page 9: Led Indica Ons
T12 Spacer, Black, Pk 10 C300304 T12 Spacer, White, Pk 10 C300305 T11/T12 Protec ve Cover Spacer C300311 T11/T12 Protec ve Cover C300271 3E4720 Gallagher T12 Reader | Edi on 12 | May 2023 Copyright © Gallagher Group Limited Page 9... -
Page 10: Technical Specifi Ca Ons
The reader is idle. Maximum reader current during creden al read. Gallagher T Series readers are UL humidity tested and cer fi ed to 85% and have been independently verifi ed to 95%. Reader currents verifi ed by UL are provided in the document "3E2793 Gallagher Command Centre UL Confi... - Page 11 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera on. Note: Changes or modifi ca ons not expressly approved by Gallagher Limited could void the user's authority to operate this equipment.
-
Page 12: Moun Ng Dimensions
40 mm (1.57") 35 mm (1.38") 25 mm (1") 86 mm (3.39") IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E4720 Gallagher T12 Reader | Edi on 12 | May 2023 Copyright © Gallagher Group Limited Page 12...
