Savant SHA-B8CR 00 Series Quick Reference Manual

Savant® Shade Corner Drive Right (SHA-B8CRxx-00)
Quick Reference Guide
The shade mount in the SHA-B8CRxx corner shade mount kit is a floating/outside type mount for the drive (motor) side of a Savant shade
installation. The mount has a 45° bevel with a slot cut in the bevel so it can be joined together with any of the other corner type mounts using
the angled bracket included (angled bracket is included in the SHA-B7CRxx and SHA-B8CRxx shade mount kits). The shade mounts from the
SHA-B7 and SHA-B8 shade corner mounts kits are typically installed where two windows meet each other to form either an inside or outside 90°
angle. The shade mount in the SHA-B8CRxx kit is a floating/outside type mount and is installed using the included shade mount sleeve and 2
inch hanger bolt. Savant recommends that the drive side shade mount be installed first. Once mounted, it can then be used as a reference point
for mounting the idler side (SHA-B7CLxx).

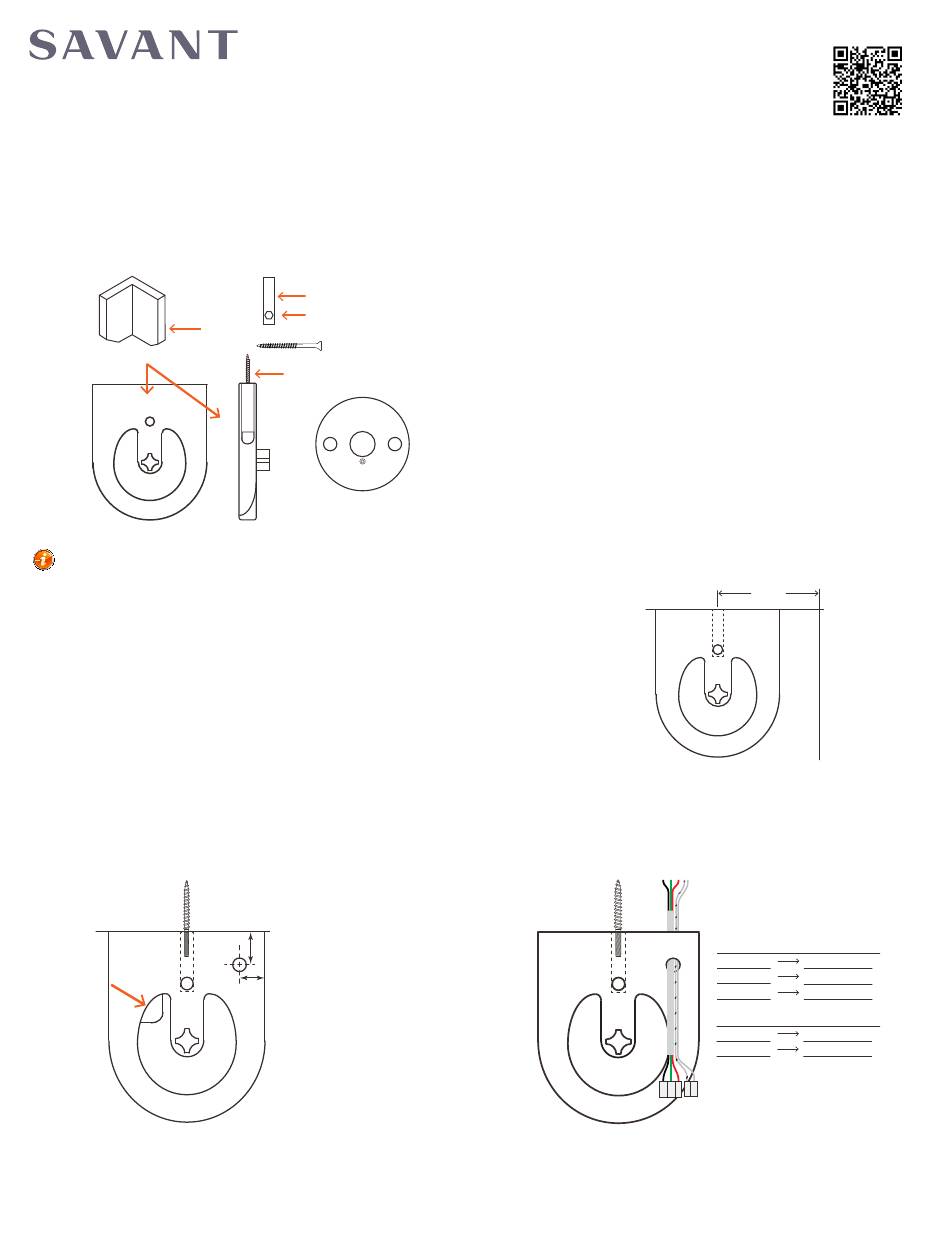

Box Contents

90° Angled
Joiner Bracket
Shade Mount
Front View
HELPFUL! Before starting the mounting process, review the diagram below to ensure a trouble free install.
– Install the shade mount so the center point of the mount is installed at least
1 ³/ ₄
inch (minimum) from any obstructions.
– To aid in the installation of the SHA-B8CRxx shade mount, a template (SHA-
INSTEMP-xx) is available. This template contains all the holes and spacing
required to mount any Savant shade mount.
– To reduce marking up the walls, it is recommended that painters tape be
used whenever drilling is involved.

Drill Hole for Shade Motor Wires

Before installing onto ceiling, a hole must be drilled into the side of the mount to feed the wires for the shade motor through. Because this is a
corner type mount, two shade mounts are assembled together. Therefore, the hole for the shade motor wires must be drilled opposite the 45°
bevel of the mount. Follow instructions below for where to drill the hole.
1. Mark where to drill the hole in the shade mount using the diagram below.
Hole should be positioned opposite the 45° bevel on side of mount.
Ceiling
Angle
Bracket
Installed
11/32
2. Drill an inch hole into the side of the mount. Do not drill all the way
through. Drill so wires can be fed into opening in rear of mount.
SHA-B8CRxx-00 | 009-1671-00 | 180504
Copyright 2018 Savant Systems, LLC
Shade Mount Sleeve
3/32 in. Hex Screw
Flat Head Screw
Hanger Bolt
Shade Motor
Replacement Cover
SHA-B8CRxx
Drill 11/32 in.
hole into mount
1/2 in.
3/8 in.
(1) Shade Mount - Floating/Outside Type Corner Mount
(1) 90° Angled Joiner Bracket
(1) 2-inch Hanger Bolt
(1) 1 inch Shade Mount Sleeve
1/2
(1) #6 x 1 in. Flat Head Screw
(1) Shade Motor Replacement Cover
(1) Quick Reference Guide (this document)
3. Feed the control and power wires for the shade motor
through the hole just drilled and out the rear of the mount.
4. Connect the control and power wires exiting the rear of the
mount to the wires exiting the ceiling. Use table when mak-
ing connections. Savant recommends splicing the wires using
Dolphin type crimp connectors or similar.
1 of 2
For Product Info
1.75 in.
(minimum)
To Wires
In Ceiling
Control Wire SHA-W1000-00
Red Orange/White
Green Brown
Black Orange
Power Wire SHA-W1000-00
White Black
White/Black Red
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
