Savant® Shade Double Drive (SHA-B6xx-00)
Quick Reference Guide
When mounted, the Shade Double Drive mount allows for a shade motor to be installed on both sides. A typical installation would have the dou-
ble drive mount installed in the middle of a wide window. In this installation, the shades on either side are driven independent of each other. The
SHA-B6xx shade mount can be used with both the floating/outside type and inside/jamb type shade mounts and is installed using the included
shade mount sleeve and 2 inch hanger bolt. The SHA-B6xx should be the first mount installed and once it is mounted, it can then be used as a
reference for mounting the idler side mounts.
Box Contents
Shade Mount
Front View
Side View

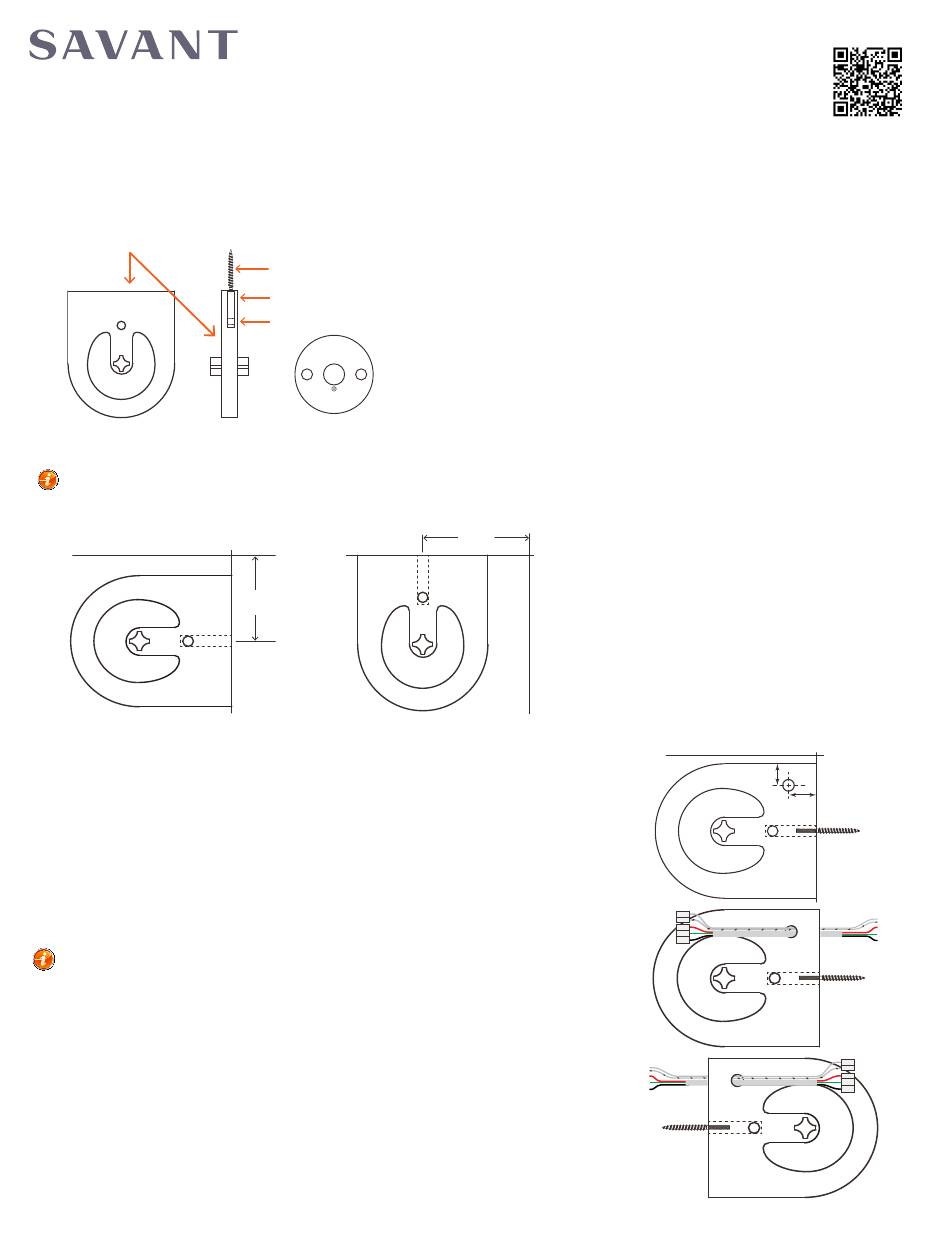

HELPFUL! Before starting the mounting process, review the Horizontal and Vertical mount diagrams below to ensure a trouble free install.
Horizontal Mount
Mounting Instructions
1.
Mark the wall or ceiling where the hanger bolt will be mounted. Ensure the following:
–
The center point of the mount must be at least 1
Refer to Horizontal and Vertical mount diagrams above.
–
When installing, the mount should be positioned so the control and power wires for
each motor exiting the wall/ceiling will exit near the hole that will be drilled in step 3
below.
2.
Place the mount on the wall where it will be installed. With a pencil, scribe a mark on the
mount in the general location where the hole for the control and power wires in step 3
below will be drilled.
HELPFUL! For reference of where the wires should exit the wall, see the diagrams to the
right.
3.
Using the general area selected in step 2 above, measure down from the top edge of the
3/8
mount
inch and measure over
11/32
the mark made, drill an
4.
Feed the control and power wires for each shade motor through the hole just drilled,
and out the rear of the mount (Wires for each motor should be fed through hole on both
sides of the shade mount). Refer to diagrams to the right.
SHA-B6xx-00 | 009-1650-01 | 180530
Copyright 2018 Savant Systems, LLC
Hanger Bolt
Shade Mount Sleeve
3/32 in. Hex Screw
Shade Motor
Replacement Cover
Vertical Mount
1.75 in.
(minimum)
3/4
inches from any obstructions.
1/2
inch from rear edge of mount and scribe a mark. On
inch hole so it goes through both sides of the coupler.
(1)
Shade Mount - Floating Outside Double Drive Mount
(1)
2-inch Hanger Bolt
(1)
1 inch Shade Mount Sleeve
1/2
(1)
#6 x 1
in. Flat Head Screw
(2) Silver Aluminum Shade Motor Replacement Covers (B6SA versions only)
(1)
Quick Reference Guide (this document)
Note: Additional documentation on installing this shade mount as well as
information on all phases of shade installation, is available on the Savant Cus-
tomer Community.
– Shade Installation and Wiring Guide (009-1532-xx)
1.75 in.
– Install the SHA-B6xx so the center point of the
(minimum)
coupler is installed at least
from any obstructions.
– To aid in the installation of the shade mounts,
a template (SHA-INSTEMP-xx) is available. This
template contains all the holes and spacing re-
quired to mount any of the shade mounts.
– To reduce marking up the walls, it is recommend-
ed that painters tape be used whenever drilling
is involved.
1
of
2
For Product Info
1 ³/₄
inch (minimum)
3/8 in.
Drill Hole through
the coupler mount
1/2 in.
To Wires
In Wall
To Wires
In Wall
