Emerson Fisher 64 Series Instruction Manual

64 and 67C Series Regulators Instruction Manual
WARNING
!
Failure to follow these instructions or to properly
install and maintain this equipment could result in
an explosion and/or fire causing property damage
and personal injury or death.
®
Fisher equipment must be installed, operated,
and maintained in accordance with federal,
state, and local codes and Emerson Process
Management Regulator Technologies, Inc.
instructions. The installation in most states must
also comply with NFPA No. 54 and 58 standards.
Only personnel trained in the proper procedures,
codes, standards, and regulations of the
LP-Gas industry should install and service
this equipment.
THINGS TO TELL THE GAS CUSTOMER:
1. Point out the regulator's vent to the customer (or vent
assembly or vent tube), and stress that this opening must
remain unobstructed at all times. Tell the customer to be
sure to check the vent opening after a freezing rain, sleet
storm, or snow to make sure ice has not formed in the vent.
2. Show the customer the shutoff valve on the container. The
customer should close this valve immediately if gas is
smelled, appliance pilot lights fail to stay on or appear higher
than usual, or any other abnormal situation occurs.
3. Tell the customer to call your company to service the
regulator if the regulator vents gas or a leak develops in the
system. Only a qualified gas service person should
install or service the regulator.
Introduction
Scope of the Manual
This manual provides instructions and maintenance for the
following high-pressure regulators: Types 64, 64KB, 64SR,
67CW, 67CH, 67CD, and 67CN regulators.
Description

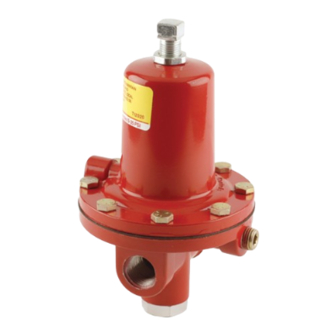

The 64 and 67C Series direct-operated regulators (Figure 1) are
designed for high-pressure (pounds per square inch) service and can
be used on either vapor applications in LP-Gas, Natural Gas, and Air
or liquid LP-Gas applications. Depending upon type, outlet pressure
ranges from 3 to 135 psig (0,21 to 9,3 bar). Type 64SR can be used
as a First Stage LP-Gas regulator–reducing tank pressure to
10 psig (0,69 bar) for a Second Stage regulator. Type 64KB is the
only regulator in this series suitable for anhydrous ammonia (NH
service. The regulators are normally painted red.
44 ซ.บรมราชชนนี 70 ถ.บรมราชชนนี ศาลาธรรมสพน์ ทวี ว ั ฒ นา กทม. 10170.
website: https://www.add-furnace.com/
Line ID: @add11 e-mail: add028883472@gmail.com
W8810
P1027
Do not use the 67C, 64, or 64SR Series regulators
in anhydrous ammonia (NH
contain brass materials that are not compatible
with anhydrous ammonia (NH
TYPE
64
64SR
64KB
67CW
67CH
67CD
67CN
)
3
www.fisherregulators.com/lp
โทร: 02-888-3472
67C SERIES REGULATORS
64 SERIES REGULATOR

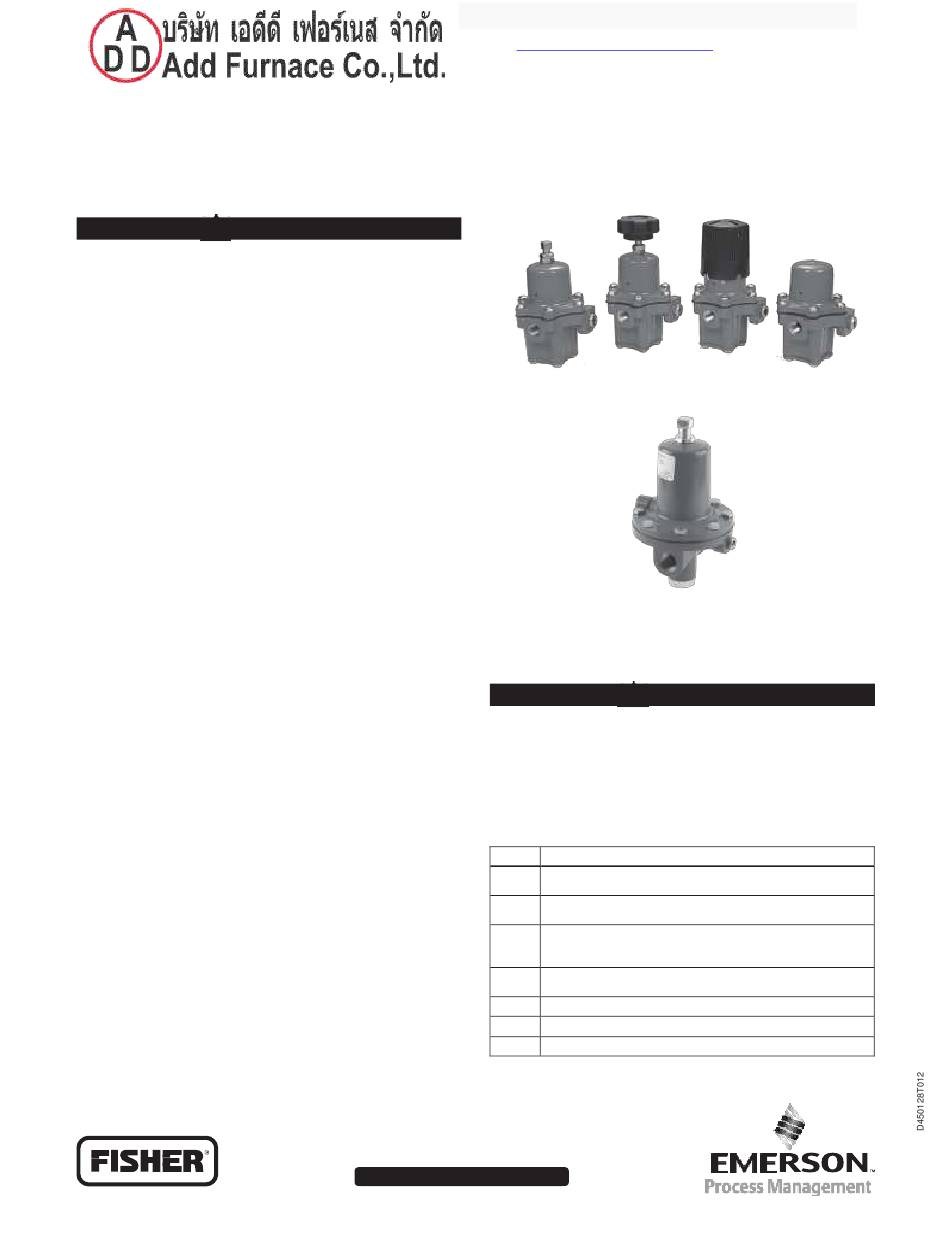

Figure 1. 64 and 67C Series Regulators
CAUTION
) service. They
3
).
3
Table 1. Available Configurations
DESCRIPTION
Basic regulator with four spring ranges from 3 to 100 psig
(0,21 to 6,9 bar).
Internal relief version with three spring ranges from 3 to 35 psig
(0,21 to 2,4 bar).
For use with anhydrous ammonia (NH
adjustment and five spring ranges from 3 to 100 psig
(0,21 to 6,9 bar). Includes a special diaphragm protector.
Basic regulator with wrench adjustment and four spring ranges
from 3 to 135 psig (0,21 to 9,3 bar); no relief.
Basic regulator with handwheel adjustment.
Basic regulator with dial cap adjustment.
Basic regulator, factory set with no field adjustment.
) with handwheel
3
