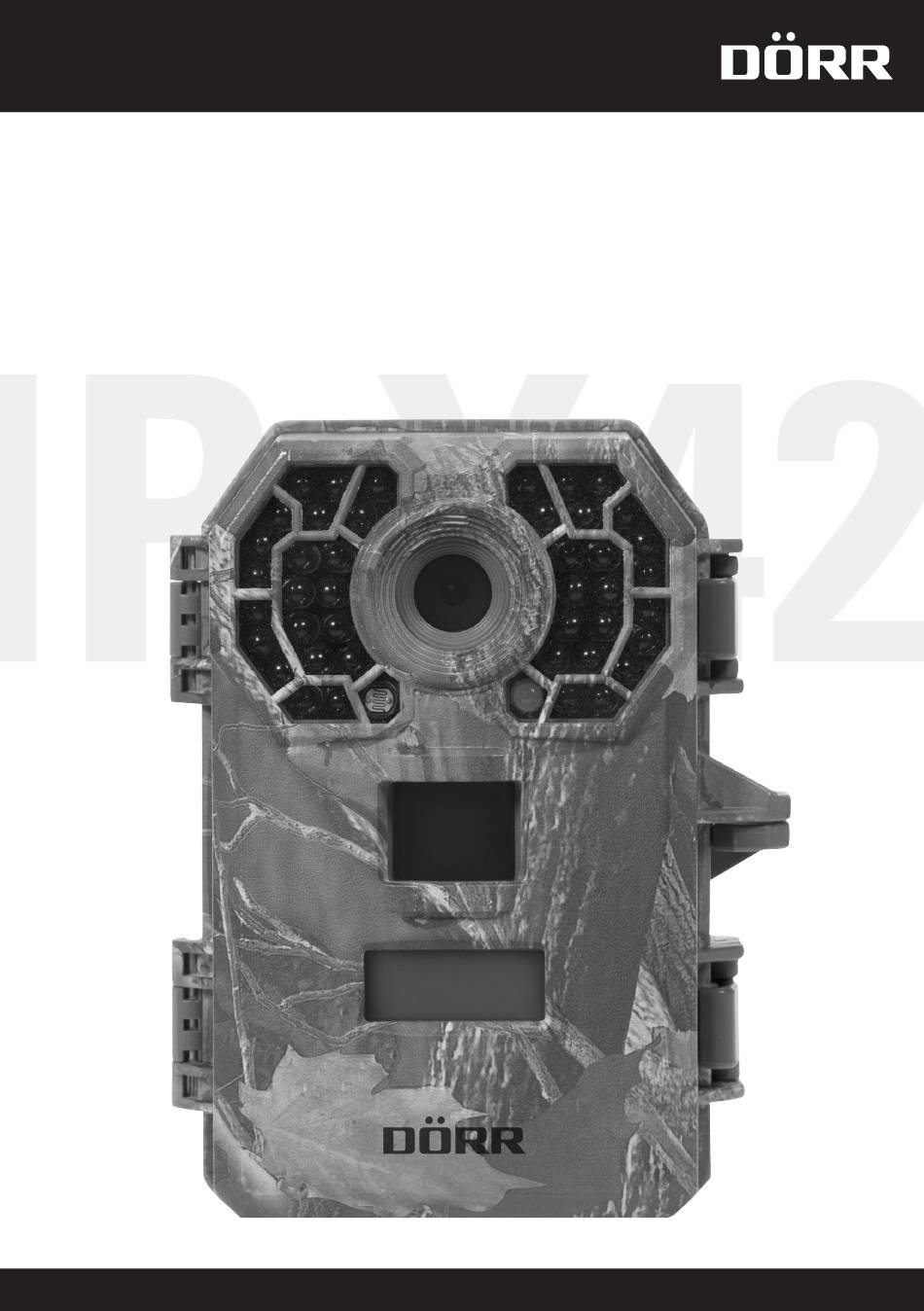

- Page 1 WildCam Black IR X42 InstRuCtIon manual Game and Surveillance camera Wildcam Black ir X42 www.doerrfoto.de...
- Page 2 InstRuCtIon manual DÖRR WildCam IR X42 Game and surveillance Camera ImpoRtant notes Before starting to use the camera, please note the following safety hints: • Your camera is fitted with a weatherproof housing according to protection class IP54 (dust and splash waterproof). Therefore the camera can be used outdoors.
- Page 3 CameRa DesCRIptIon anD oVeRVIeW Closures twilight sensor Black IR leDs Camera lens motion sensor in test mode motion sensor lead through for u-lock scroll Bar for selection of operation mode Display Control panel Battery Compartment opener Display Input socket for external Battery microphone tripod socket mini usB...
- Page 4 QuICk staRt GuIDe Choose one of the two available energy sources Insert 8 AA batteries into the battery compartment making sure to respect the correct polarity or connect the camera to a 12 V battery using the socket DC 12 V located at the camera bottom. AA batteries and 12 V battery are not included in the packaging.
- Page 5 off: This setting switches the camera off . Qset1: Quick-set 1 Quick-set program 1 With this setting, the screen shows the desired settings and starts a 30 s countdown. Thereafter the camera is activated. The display also shows a chart indicating the battery status and the number of picture saved on the SD card.In case the camera does not notice any movements, the display will switch off...
- Page 6 The following settings can be changed using the same navigation tools: • Date • Time • Time Format 24 hours/12 hours AM - PM • camera mode: photo, video, continuous shooting When the 3 settings are made, the menu choice changes as follows: •...
- Page 7 memoRy CaRD sD/sDHC Installation Open the camera’s protective housing. The SD card slot is located at right-hand housing side. Insert the SD memory card as shown on the sketch at the housing. Make sure to format the memory card and that the card is not write-protected. The display will indicate a missing or false SD memory card.
- Page 8 speCIfICatIons Number and Type of LEDs 42 high performance infrared leds Infrared Flash IR 940 nm Trigger Time approx. 0,5 s resolution of camera Sensor 2 MP Sensor of latest generation/Photos interpolated up to 10 MP/Video HD 1280 x 720/720 x 480 Video Sequence Length 10 to 180 s in 5 s steps selectable No.
