Summary of Contents for DÖRR SNAPSHOT CLOUD 4G

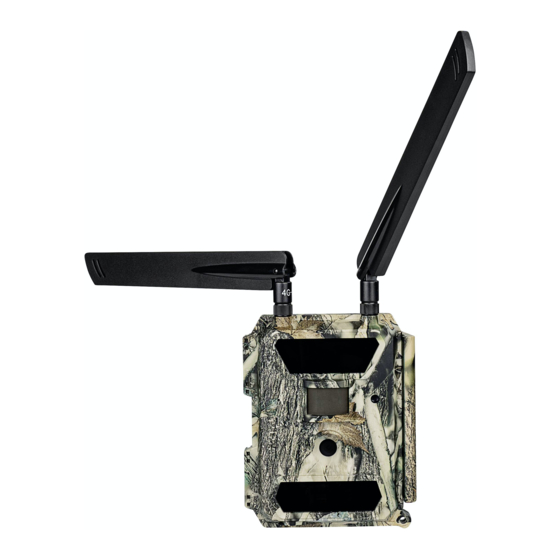

- Page 1 GAME & SURVEILLANCE CAMERA INSTRUCTION MANUAL SNAPSHOT CLOUD 4G doerr-outdoor.de...
-
Page 3: Table Of Contents
Registration in the DÖRR APP and connecting camera 11.5 APP settings 12 | APP FUNCTIONS 13 | DÖRR SNAPSHOT CLOUD 4G HOMEPAGE 14 | SUBSCRIPTION FOR MORE STORAGE AND FULL HD QUALITY 15 | DELETE/RE-REGISTERING A CAMERA/THEFT 15.1 Delete/Re-registering a camera 15.2... -
Page 4: Safety Hints
02 | SAFETY HINTS FOR BATTERIES/ACCUMULATORS Only use high-quality batteries/accumulators of popular brands. When inserting the batteries/ accumulators, please respect the correct polarity (+/-). Do not insert THANK YOU for choosing this DÖRR quality product. batteries of different types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. -
Page 5: Product Description
05 | PRODUCT DESCRIPTION 08.1 MOUNTING THE ANTENNAS The DÖRR SnapShot CLOUD 4G especially meets the requirements of surveillance. Remove the protective caps from the antenna connections (01) and screw on the Use it versatilely during day and night time. With the fast 4G LTE connection recor- two supplied antennas. -
Page 6: Unlocking Sd Card
10 | CAMERA DISPLAY SYMBOLS 08.5 UNLOCKING SD CARD Remaining Battery Camera Image Photo(s) per Signal storage capacity Mode resolution release strength Status of SD card 0000/0000 Remaining Video Battery Camera Image Signal storage capacity Mode resolution strength resolution Status of SD card 08.6 INSERTING THE SIM CARD 0000/0000... -
Page 7: Downloading The Dörr App
11.3 DOWNLOADING THE DÖRR APP To install the DÖRR APP, scan the corresponding QR code for Android or iOS from the inside of the colour box with your smartphone or download directly in the Play Store for Android or in the APP store for iOS. 11.4 REGISTRATION IN THE DÖRR APP AND CONNECTING CAMERA Register with your email address and a password. -
Page 8: App Settings
11.5 APP SETTINGS CAMERA Choose the camera mode: Photo The camera will record photos according to the settings image size + Multi shot. The camera will record a picture(s) followed up by a video according to the settings Image Camera mode Size + Multi-Shot + Video Size + Video Length. -
Page 9: App Functions
PIR MOTION DETECTOR The Passive Infrared Sensor (PIR) triggers upon motion and temperature changes recog- nised within the detection range. PIR switch On/Off CAUTION: Camera will not work on motion. Mind to set Time Lapse function ON! Set the PIR sensitivity: (Recommended): the camera recognises even smallest motion and temperature change. - Page 10 MENU Images Gallery of all images made. Use the fi lter function to search specifi c images. Add image to favourites/save/share/delete Touch the desired image. To add the image to your favourites, tap (to deselect, tap star again to save or share the image e.g. by WhatsApp or Email. Confi rm Delete to erase the image.
-
Page 11: Dörr Snapshot Cloud 4G Homepage
13 | DÖRR SNAPSHOT CLOUD 4G HOMEPAGE You may also register or login by PC/Laptop/Tablet on our homepage: camera.doerr-outdoor.de. We recommend using Google Chrome Browser . You will fi nd all the functions as in the APP described above. 14 | SUBSCRIPTION FOR MORE STORAGE AND FULL HD QUALITY Per registered camera the basic contingent is 1000 images in standard quality, as well as 200 favourite images. -
Page 12: Camera Operation (Offline Without Sim Card)
16 | CAMERA OPERATION (OFFLINE WITHOUT SIM CARD) If you want to use the camera without SIM card, do all settings directly in the camera. Images and videos are saved onto the SD card. 16.1 CAMERA REGISTER CAM (Default value is marked in green) Enter a name for the camera. -
Page 13: Camera Register Pir
16.2 CAMERA REGISTER PIR (Default value is marked in green) Turn on or off the PIR sensor: CAUTION: Camera will not work on motion. Mind to set Time Lapse function ON! PIR Switch The Passive Infrared Sensor (PIR) triggers upon motion and temperature changes recognised within the detection range. -
Page 14: Camera Register 4G
16.3 CAMERA REGISTER 4G (Default value is marked in green) Auto APN: Enter the APN (Access Point Name) of your SIM card SIM Auto Match Manual User Name: Enter User Name of the APN Password: Enter Password of the APN NOTE For Data like APN, User Name and Password please contact your telephone provider. -
Page 15: Camera Register Other
16.4 CAMERA REGISTER OTHER (Default value is marked in green) German English French Italian Language Choose your desired menu language. Russian Polish Hungarian Czech Set date and time. NOTE We recommend setting date and time manually in offline mode to prevent from malfunction. Auto Time Zone Not available in offline mode. -
Page 16: Viewing Images And Videos On The Screen
16.6 DELETE IMAGES + FORMAT SD CARD Item No. 204463 DÖRR Metal Housing GH-4 for SnapShot Cloud 4G In order to delete an image or format SD card, press MENU button (12) while viewing an image. Choose "Del" and confirm to delete only one or all images. -
Page 17: Technical Specifications
19 | TECHNICAL SPECIFICATIONS Recording capability Photo / Photo+Video with audio Combined picture and video recording Number of LEDs 57 (27 top + 30 bottom) LED Type Invisible Black Vision Infrared LEDs, 940 nm Flash range max. approx. [m] Detection range motion sensor approx. 20 m / 50°... -
Page 18: Disposal, Ce Marking, Simplified Eu Declaration Of Conformity
21 | DISPOSAL, CE MARKING, SIMPLIFIED EU DECLARATION OF CONFORMITY 21.1 DISPOSAL OF BATTERIES/ACCUMULATORS Batteries are marked with the symbol of a crossed out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. - Page 19 GAME & SURVEILLANCE CAMERA SNAPSHOT CLOUD 4G Item No 204440 DÖRR GmbH Messerschmittstr. 1 · D-89231 Neu-Ulm · Fon +49 731.970 37 69 · info@doerrfoto.de · doerr-outdoor.de doerr-outdoor.de...
