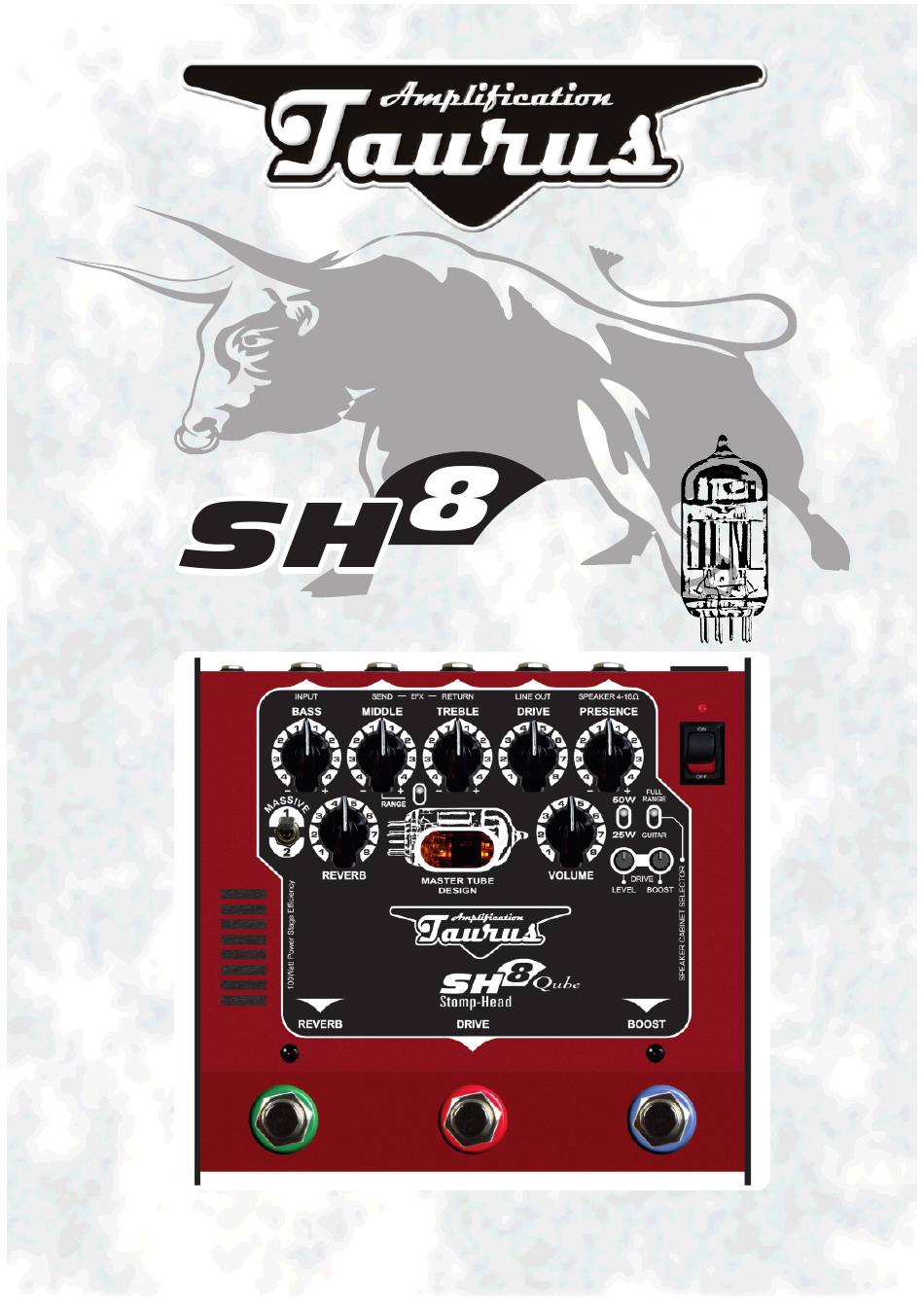

- Page 1 GUITAR AMPLIFIER OWNER’ S MANUAL Qube Stomp-Head DESIGNED BY MUSICIANS FOR MUSICIANS...
- Page 2 Thank you for trust and choosing our amplifier. In 2011, Taurus was the first that introduce to the amp's world a new type of a professional guitar amplifier designed in a compact shape, especially dedicated for pedalboards. Since then, eight different models of Stomp-Head have been produced under Taurus logo.
- Page 3 Front panel - BASS control [2] - MIDDLE control [2A] - MID-RANGE switch - changes range of MIDDLE control parameters. [3] - TREBLE control [4] - DRIVE gain control [5] - PRESENCE control [6] - REVERB control [7] - VOLUME control [8] - Power selector: 50Watt/25Watt [9] - Speaker cabinet selector - two options to choose from: guitar or full range cabinet...
- Page 4 Rear panel - AC POWER input. Range: 90-240V / 50-60Hz [2] - Speakers output: 4-8-16ohm (auto detect. impedance) [3] - LINE OUTPUT with speaker cabinet simulation. Signal can be lead in different ways: with simulation, without simulation or both. [4] - Effect-loop RETURN (or PA input) [5] - Effect-loop SEND [6] - INPUT [7] - BLUETOOTH wireless communication switch...
- Page 5 MASSIVE The MASSIVE option that's a unique feature of the amp, which makes the guitar sound very saturated with a great sustain. MASSIVE is activated by a switch (12-front). In the middle position MASSIVE is OFF, in positions 1 and 2 two different saturation levels are to choose from.
- Page 6 SH-8 as a preamp The SH-8 Qube can also be used as a preamp alone, connected to an external PA system or mixer via the LINE-OUT, without speaker connection necessity. If a speaker wire is not connected to the amp's speaker OUT the amp's power stage is inactive. DC supply for effect pedals The amp is designed with output that allows powering external sound effects.
- Page 7 Connection configuration The amplifier can be powered with 90-240Voltage range. It makes easy to use the amp in different regions of the world without additional voltage converters. BLUETOOTH wireless connection. Playback option. Mixer EFX-2 EFX-1 -9V/DC supply connection Mixer Speaker cabinet 4-8-16ohm...
- Page 8 Allows you to connect a guitar speaker or full-range PA or Hi-Fi cabinet. Foot Controller Allows you to quickly switch guitar sounds using the following options: Reverb, Clean/Drive, Boost, RoHS Box Electronics ul. Leśna 15 , 81-876 Sopot, Poland e-mail info@taurus-amp.pl / www.taurusamps.pl...
