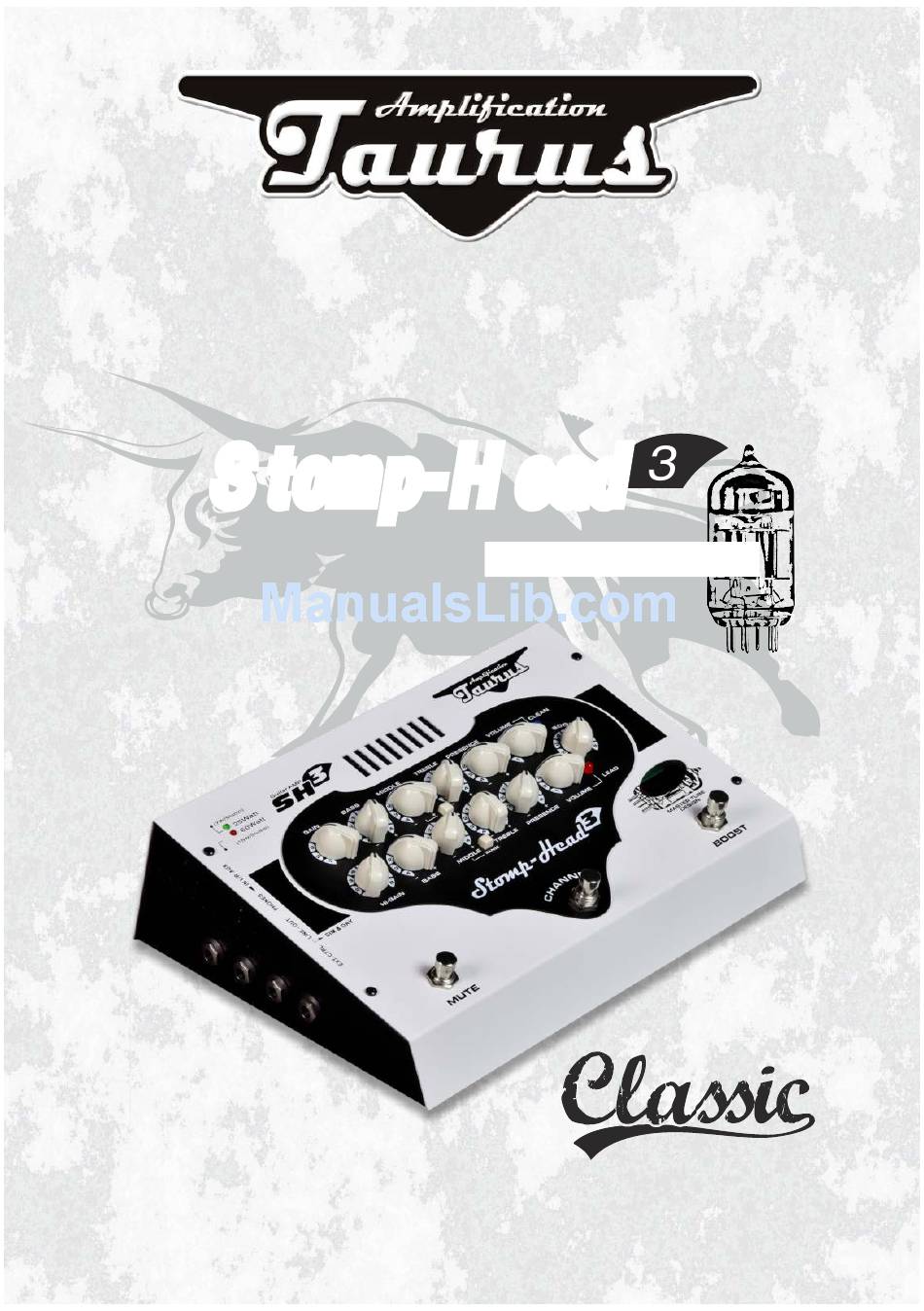

- Page 1 GUITAR AMPLIFIER OWNER’ S MANUAL Stomp-Head Master Tube Design DESIGNED BY MUSICIANS FOR MUSICIANS...
- Page 2 The Stomp-Head 3 is an ultra light, very compact floor amplifier with integrated foot- switch, designed to be set on the pedal board, along with effects or, placed directly on the stage floor. It greatly benefits the player with immediate access to all amps potentiometers and options.
- Page 3 4-8-16ohm WARNING! IN. GAIN SEND TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, SERIAL NO: DO NOT EXPOSE THIS PRODUCTS TO RAIN OR MOISTURE Made in EU Taurus Amplification (7W/Studio) Guitar AMP 25Watt 60Watt (15W/Studio) GAIN BASS MIDDLE TREBLE...
- Page 4 TONE CONTROLS Each channel is equipped with a regular 4-point equalizer: BASS, MIDDLE, TREBLE and PRESENCE. The MID-RANGE switch changes the range of frequency of the MIDDLE potentiometer. This option is very useful in the proper setting of the guitar’s sound in an overall band mix depending on the style of music played and type of guitar used.
- Page 5 ADDITIONAL EXTERNAL CONNECTION 1. The graph below shows how the external foot-switch should be connected in order to control amplifier functionalities. If the external foot switch is connected, therefor, the internal amp foot-switches become disconnected. Note: external controller should be implemented with bistable switches type 0FF- [ON]. 2.
- Page 6 EFFECT AND MIXER CONNECTION The external effects may be connected between both preamps (CLEAN and LEAD) and the MASTER section through the parallel EFFECT LOOP. This type of connection is recommended when the Volume pedal or Delay, Reverb, Flanger type of effects are used. When the mixer or the external amplifier is connected, the LINE-OUTPUT with integrated cabinet simulator must be used.
- Page 7 EXTERNAL DEVICES CONNECTION External devices such as a preamp or a guitar DSP can be connected to the Stomp Head. Both devices may be set-up by two different method. 1. To the amp input – in this configuration all potentiometers and foot-switches will be active. 2.
- Page 8 For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product. RoHS Box Electronics ul. Cieszyńskiego 4, 81-881 Sopot, Poland e-mail info@taurus-amp.pl / www.taurus-amp.pl...
