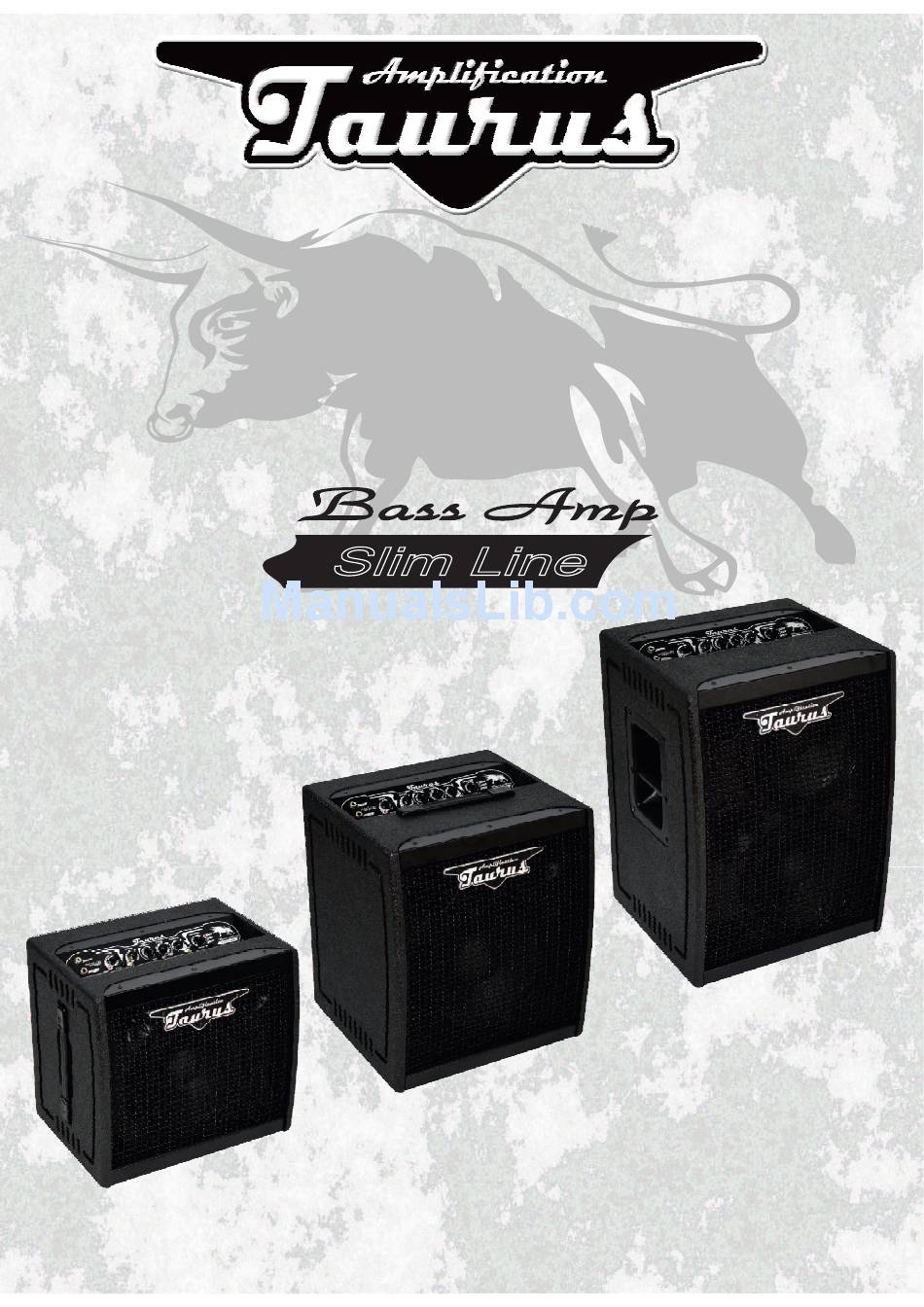

- Page 1 OPERATING MANUAL TS-10, TS12, TS-1010 Slim Line TS-1010 TS-12 TS-10 DESIGNED BY MUSICIANS FOR MUSICIANS...
- Page 2 The TAURUS Slim Line bass amp is designed with special regards towards the most important features for musicians in mind − perfect sound, wide range possibilities of tone creation, good monitoring on stage, reliability and easy handling. The TS−series is equipped with all essential tools to obtain complete control over selective bass sound, suitable middle as well as treble tones.
- Page 3 MAIN FEATURES Power output: 3 50W RMS / 4ohm 00W RMS / 8ohm Speakers configutarion −10 − 10”/8ohm + switchable ceramic tweeter −12 − 1x 12”/8ohm + switchable ceramic tweeter TS 010 −1 − 1 ” /8ohm + switchable ceramic tweeter INPUT −...
- Page 4 FRONT PANEL Slim Line GAIN BASS MIDDLE FREQ TREBLE VOLUME 1.2k Active PROT 2.0k CLIP 3.0k SYSTEM True 4.0k Passive Slim Line MUTE Peak Punch 15 18 Active INPUT [JACK 6.3mm]. Passive INPUT [JACK 6.3mm]. PEAK indicator in preamp section. PUNCH button −...
- Page 5 REAR PANEL POWER POST LIFT HORN Speaker simulation WARNING! CAUTION! Fuse: 2.5A−230V 5.0A−120V series TO REDUCE THE RISK OF FIRE TO REDUCE THE RISK OF 1010 OR ELECTRIC SHOCK, DO NOT ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCTS REMOVE COVER.REFER 10-001 TO RAIN OR MOISTURE SERVICING TO QUALIFIED...
- Page 6 GETTING STARTED Set every front panel potentiometer and switch in following positions: BASS,GAIN, TREBLE, LEVEL and VOLUME in 12 O’clock position, − − keep PRESENCE, PARAMETRIC EQUALIZER and DBS in “OFF” position. Set the HORN switch on the combo's back panel according to your needs. Connect your bass guitar to amplifier's INPUT, then switch power ON .
- Page 7 PARAMETRIC EQUALIZER The PARAMETRIC EQUALIZER is based on 2 potentiometers − LEVEL and FREQUENCY. The EQ is set to work in range between 120Hz and 4KHz . The LEVEL potentiometer is responsible for amplifying or cutting out selected frequences chosen by FREQUENCY pot. When LEVEL pot. is set in 12 O’clock position the EQ is “flat”...
- Page 8 For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product. RoHS Box Electronics ul. Cieszyńskiego 4, 81-881 Sopot, Poland e-mail info@taurus-amp.pl / www.taurus-amp.pl...
