21-pin Euro-scart And 21-pin Audio/video - Sharp 28KF-84H Operation Manual

Sharp 28kf-84h: operation manual.
Hide thumbs
  • Contents

Advertisement

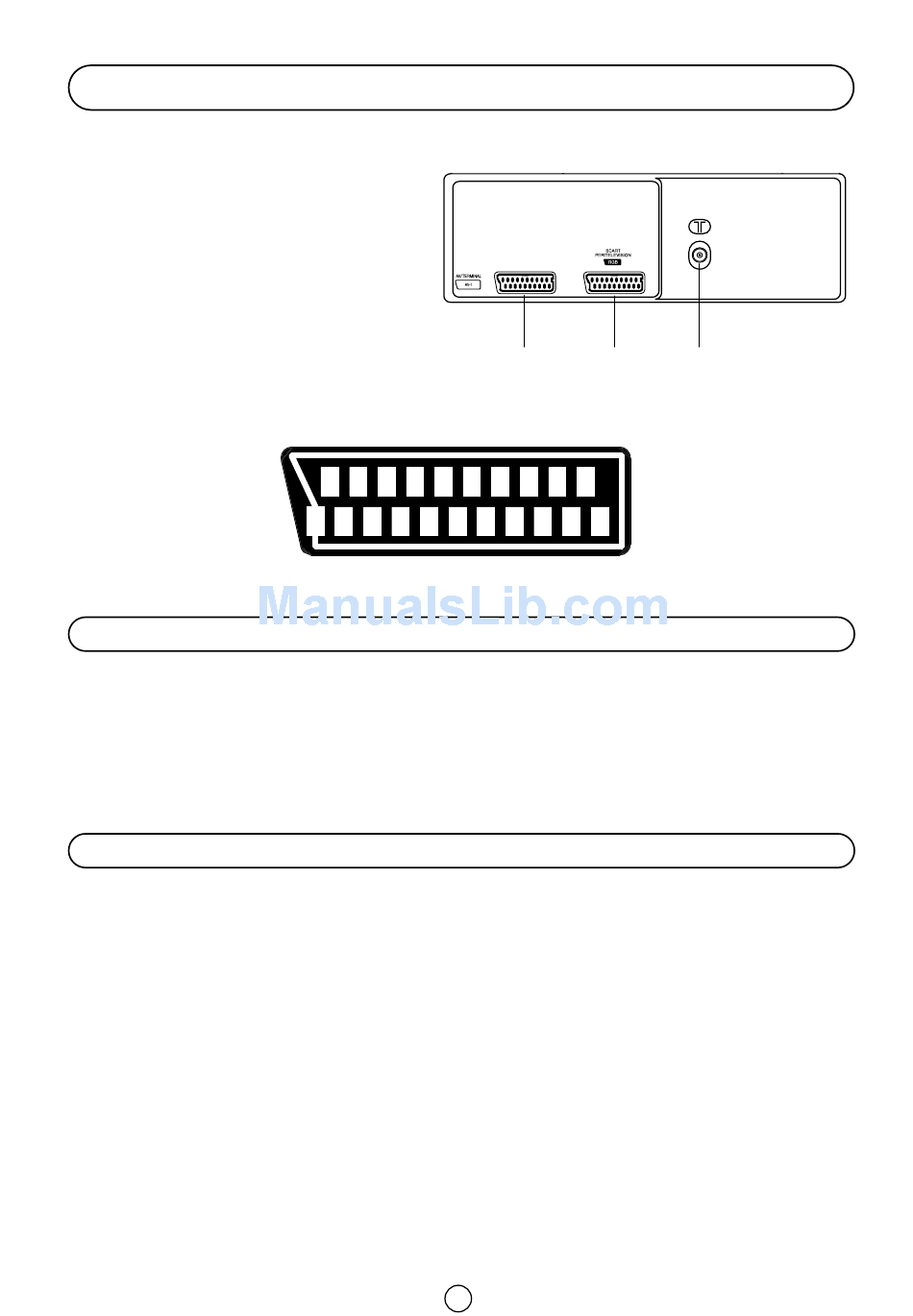

21-pin Euro-SCART and 21-pin Audio/Video

REAR TV
21-pin In/Out
1. 21-pin Audio/Video (AV-1) With
PAL/SECAM/NTSC/S-Video Input
2. 21-pin Euro SCART (RGB) With
PAL/SECAM/NTSC Video Input
RF Input
3. Aerial terminal
21-pin Euro-SCART (RGB)
1.
Audio right output
2.
Audio right input
3.
Audio left output
4.
Common earth for audio
5.
Earth for blue
6.
Audio left input
7.
Blue input
21-pin Audio/Video (AV-1) with S-Video Input
1.
Audio right output
2.
Audio right input
3.
Audio left output
4.
Common earth for audio
5.
Earth
6.
Audio left input
7.
Not used
20 18 16 14 12 10
21 19 17 15 13 11
8.
Audio-video control
9.
Earth for green
10.
Not used
11.
Green input
12.
Not used
13.
Earth for red
14.
Not used
8.
Audio-video control
9.
Earth
10.
Not used
11.
Not used
12.
Not used
13.
Earth
14.
Not used
39
1
2
8
6
4
2
9
7
5
3
1
21
15.
Red input
16.
Red/Green/Blue control
17.
Earth for video
18.
Earth for Red/Green/Blue control
19.
Video output
20.
Video input
21.
Plug shield
15.
Chroma S-Video input
16.
Not used
17.
Earth for video
18.
Earth
19.
Video output
20.
Video input / S-Video input
21.
Plug shield
