Summary of Contents for Verizon TX-230

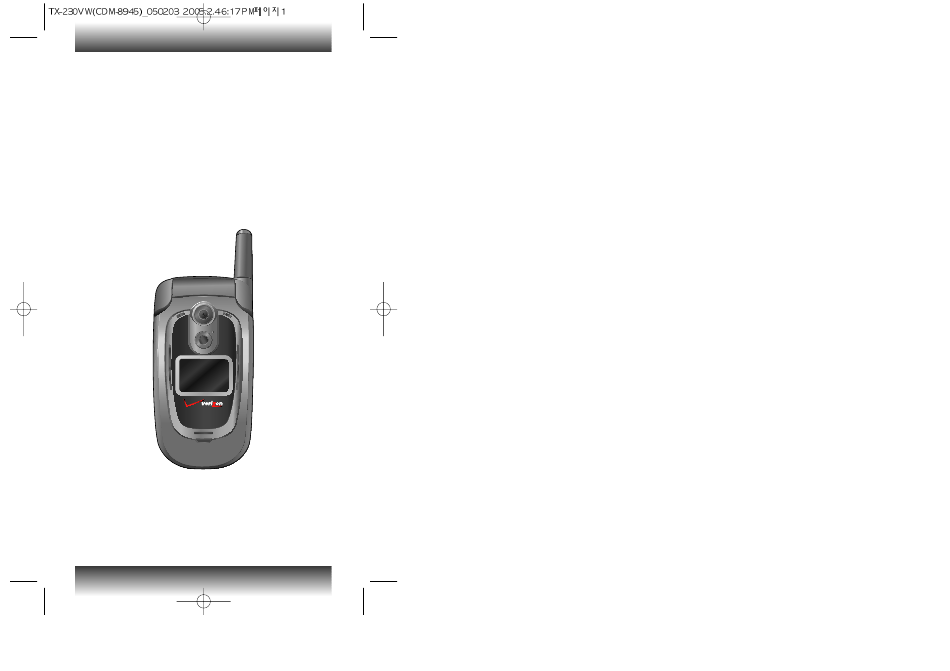

- Page 1 User’s Guide TX-230...
-
Page 2: Table Of Contents
WELCOME TABLE OF CONTENTS Thank you for choosing the up-to-date TX-230, our new CHAPTER 1. BEFORE USING YOUR PHONE .........5 INSIDE THE PACKAGE ..................6 model, developed by top researchers to support the HANDSET DESCRIPTION.................7 THE FUNCTION KEYS.....................8 CDMA2000 1X system through Qualcomm-manufactured DISPLAY INDICATORS ...................9... - Page 3 TABLE OF CONTENTS TABLE OF CONTENTS ADD NEW GROUP .....................40 CHAPTER 5. GET IT NOW..............87 ASSIGN PHONE NUMBER TO GROUP..............40 GET IT NOW ....................88 CHANGE GROUP NAME ..................41 GET TUNES & TONES ..................88 SEND TXT MSG. GROUP ...................41 DOWNLOADING NEW TUNES & TONES ............88 SEND PIX MSG.
- Page 4 SAR INFORMATION..................132 FDA CONSUMER UPDATE ................134 PROTECT YOUR WARRANTY ..............138 12 MONTH LIMITED WARRANTY...............139 This chapter provides important information about using the TX-230 including: INSIDE THE PACKAGE HANDSET DESCRIPTION BATTERY USAGE BATTERY HANDLING INFORMATION “Licensed by QUALCOMM Incorporated under one or more of the following Patents : U.S.Patent No.
-
Page 5: Inside The Package
HANDSET DESCRIPTION INSIDE THE PACKAGE This package should include all items pictured below. The TX-230 weighs 3.7oz. The dimensions are 1.83” x 4.48” x 0.97”. If any are missing or different, immediately contact the retailer where you purchased the phone. -
Page 6: The Function Keys
HANDSET DESCRIPTION HANDSET DESCRIPTION Display Indicators DISPLAY INDICATORS See page 9 for a list of icons. Signal Strength - Current signal strength: the Text & Graphic area more lines, the stronger the signal. Roaming Soft Key Indicators Phone is out of home area. Shows the functions currently assigned to each soft key and Phone is in the 1x service area. -
Page 7: Battery Usage
HANDSET DESCRIPTION BATTERY USAGE Alarm Only BATTERY INSTALLATION Phone will Alarm Only when call is received. Vibrte On Place the battery on the back of the handset Phone will vibrate when call is received. and slide into place. Push the battery down until it locks into place. -
Page 8: Battery Charging
BATTERY USAGE BATTERY USAGE PCS AND 1X BATTERY TIMES BATTERY CHARGING The operating time is subject to your handset usage and configuration. POWER CONNECTION Battery Capacity Plug the AC Charger into a standard outlet. STD 1000 mAh Up to 162 m Up to 160 m Plug the other end of the AC Charger into the Up to 282m... -
Page 9: Battery Handling Information
BATTERY HANDLING INFORMATION Only use the battery and charger approved by the manufacturer. Only use the battery for its original purpose. Try to keep batteries in a temperature between 41ºF (5ºC ) and 95ºF (35ºC). Chapter 2 If the battery is stored in temperatures above or below the recommended range, give it time to warm up or cool down before using. -
Page 10: Turning The Phone On / Off
TURNING THE PHONE ON / OFF ACCESSING THE MENU Your phone can be customized via the menu. Each function can be TURNING THE PHONE ON accessed by scrolling with the Navigation Key or by pressing the number that corresponds with the menu item. Press and hold until your “Power On”... -
Page 11: Menu Summary
MENU SUMMARY MENU SUMMARY 3. Displays 1. Banner 1. Personal Get It Now 1. Get Tunes & 1. Get New 2. ERI Banner Tones 2. Record New 1. LCD 2. Get Fun & 2. Backlight 2. Keypad Games 3. Contrast 3. -
Page 12: Basic Functions
BASIC FUNCTIONS BASIC FUNCTIONS MAKING A CALL ANSWERING CALLS Enter a phone number. When your phone rings or vibrates, press to answer the incoming call. (Depending on your phone’s settings, you may To modify the phone number you have entered : also answer incoming calls by opening the •... -
Page 13: Wait/Pause Feature
BASIC FUNCTIONS BASIC FUNCTIONS WAIT/PAUSE FEATURE 3-WAY CALLING Pauses are used for automated systems (i.e., voice mail, calling cards). With Three-Way Calling, you can talk to two people at the same time. Insert a pause after a phone number then enter another group of When using this feature, the normal airtime rates will be applied for numbers. -
Page 14: Adjusting Volume
BASIC FUNCTIONS DURING A CALL To display menu options during a call, press [Options]. ADJUSTING VOLUME Adjusts the volume of the ringer, key beep and speaker. MUTE (UNMUTE) The caller cannot hear you or any sounds from your side but you can Press [MENU], then select “Settings &... -
Page 15: Send Dtmf
DURING A CALL MAKING AN EMERGENCY CALL The 911 feature puts the phone in the Emergency Call Mode SEND DTMF when you dial the preprogrammed emergency number, 911. Automatically transmits your phone number to a pager during a call. It also operates in the lock mode and out of the service area. (Dependent on pager service) 911 IN LOCK MODE Press... -
Page 16: Using The Mini Sd Card
USING THE MINI SD CARD INSTALLING THE MINI SD CARD Open the card hole cover, and insert the mini SD like the arrow indicates. Chapter 3 Please keep mini-SD slot closed at all times whether mini-SD card MEMORY FUNCTION is inserted or not to prevent possible damages. REMOVING THE MINI SD CARD To remove the mini SD card, press and release the card... -
Page 17: Storing A Phone Number
STORING A PHONE NUMBER ENTERING LETTERS, NUMBERS & SYMBOLS The phone book stores up to 500 entries. The input mode (Alpha editor) will automatically be activated when necessary to enter letters and numbers. As shown below, there are 4 available modes ; Standard input mode (Abc), T9 input mode Enter phone # then press [SAVE] then (T9Word), Numeric mode (123), and Symbol mode (Symbols). -
Page 18: Standard Input Mode
ENTERING LETTERS, NUMBERS & SYMBOLS ENTERING LETTERS, NUMBERS & SYMBOLS STANDARD INPUT MODE T9 INPUT MODE Use the digit keys to enter letters, numbers and characters. The T9 input mode incorporates a built-in-dictionary to determine a word based on the entered characters. A word can be entered more quickly by pressing a key once per character. -
Page 19: Numeric Mode
ENTERING LETTERS, NUMBERS & SYMBOLS MAKING A CALL THROUGH THE PHONE BOOK NUMERIC MODE ONE-TOUCH/TWO-TOUCH DIALING Allows you to enter numbers. Ideal for frequently dialed numbers, this feature allows phone book entries to be dialed via the keypad with only one or two key presses. Press [Abc] and scroll to the input mode to ONE-TOUCH DIALING:... -
Page 20: Chapter 4. Menu Function
MEMO Chapter 4 MENU FUNCTION This chapter addresses accessing the menu and using its functions and features to customize your phone. CONTACTS RECENT CALLS SETTINGS TOOLS... -
Page 21: Contacts
CONTACTS CONTACTS Stores up to 500 entries, each of which can be assigned to a group. CONTACT LIST Entries can be retrieved by name or group. Retrieves an entry by name and calls by simply pressing You can review all the entries stored in your phone book list or NEW CONTACT quickly find an entry by entering a name or its character string. -
Page 22: Groups
CONTACTS CONTACTS CHANGE GROUP NAME GROUPS Allows you to classify phone entries into groups. Existing groups Press [MENU], then select “Contacts” menu, include FAMILY, WORK. A maximum of 30 groups is allowed. then press “Groups”. Predefined group that can’t rename or Erase. User can add group max 28 group. -
Page 23: Send Pix Msg. Group
CONTACTS CONTACTS SEND PIX MSG. GROUP SPEED DIALS In idle mode, calls can be placed to numbers stored in speed dial by Press [MENU], then select “Contacts” menu, pressing & holding the location number on the key pad. For a 2-digit then press “Groups”. -
Page 24: Recent Calls
RECENT CALLS RECENT CALLS MISSED RECEIVED Displays information about the 20 most recently answered calls. Displays information about the 20 most recently missed calls. Place a call to a received call by simply pressing Place a call to a missed call number by simply pressing To see a list of the 20 most recently answered To see a list of the 20 most recently missed calls, press... -
Page 25: Dialed
RECENT CALLS RECENT CALLS DIALED Displays information about the most recent incoming, outgoing and Displays information about the 20 most recently dialed numbers. missed calls. Place a call to a dialed call by simply pressing To see a list of the 20 most recently dialed To see a list of the 60 most recent incoming, numbers, press [MENU], then select... -
Page 26: View Timers
RECENT CALLS SETTINGS Customizes your phone and optimizes performance through a variety VIEW TIMERS of settings. Checks the usage time and manages your calls within the limit you set. The 11 timers include (Last Call, All Calls, Received Calls, SOUNDS Dialed Calls, Roaming, Transmit Kilobytes, Received Kilobytes, Total Kilobytes, Last Reset, Lifetime Calls, Lifetime Data Counter): MASTER VOUME... -
Page 27: Call Sound
SETTINGS SETTINGS CALL SOUND ALERT SOUNDS To select a ringer type for incoming calls: When selected, this setting alerts you to the following handset changes: CALL RINGTONE ERI TONES Press [MENU], then select “Settings & Tools” Press [MENU], then select “Settings & Tools” menu, press “Sounds”... -
Page 28: Keypad Voume
SETTINGS SETTINGS PIX MESSAGE KEYPAD VOLUME Press [MENU], then select “Settings & Tools” To adjust key pad tone: menu, press “Sounds” then select Press [MENU], then select “Settings & Tools” “Alert Sounds”, press “Pix Message”. menu, press “Sounds” then select “Keypad Volume”. -
Page 29: Service Alerts
SETTINGS SETTINGS SERVICE ALERTS POWER ON/OFF SERVICE CHANGE POWER ON Sounds an alert when leaving a service area and entering a roaming Allows you to activate/deactivate the power on tones. service area. Press [MENU], then select “Settings & Tools” Press [MENU], then select “Settings &... -
Page 30: Alarm Sounds
SETTINGS SETTINGS ALARM SOUNDS DISPLAYS To select a ringer type for alarm sound: Allows you to customize the display. ALARM TONE BANNER To input a personal/ERI banner greeting: Press [MENU], then select “Settings & Tools” menu, press “Sounds” then select PERSONAL “Alarm Sounds”, press “Alarm Tone”. -
Page 31: Backlight
SETTINGS SETTINGS BACKLIGHT CONTRAST Backlights the display and key pad and activates dimming for easy To adjust the display contrast: viewing in dark places. Press [MENU], then select “Settings & Tools” menu, press “Displays” then select “Contrast”. Press [MENU], then select “Settings & Tools” menu, press “Displays”... -
Page 32: Screensaver
SETTINGS SETTINGS SCREENSAVER POWER ON/OFF ANIMATIONS POWER ON ANIMATION Press [MENU], then select “Settings & Tools” Allows you to the power on animation. menu, press “Displays” then select “Screensaver”. Press [MENU], then select “Settings & Tools” menu, press “Displays” then select Select Default to choose a pre-installed display, “Power On/Off Animations”, press Downloads or Pix # to choose a display you... -
Page 33: Nam Selection
Press [MENU], then select “Settings & Tools” menu, press “System” then select “NAM Selection”, press “Change NAM”. Select one of the following options with the Navigation Key. NAM 1 - VERIZON NAM 2 - VERIZON Press [OK] to save it. -
Page 34: Device Info
SETTINGS SETTINGS DEVICE INFO LOCATION Displays the information of your phone: To determine whether or not the network system can detect your position: MY NUMBER Displays the your phone number (MDN/MIN number and provider) : Press [MENU], then select “Settings & Tools” menu, press “System”... -
Page 35: Security
SETTINGS SETTINGS SECURITY EDIT CODE Changes your Device/Location 4-digit password. Prevents unauthorized use of your phone. The following settings can be restricted: Press [MENU], then select “Settings & Tools” COMMON CODE menu, press “System” then select “Security”, then enter your password, Press [MENU], then select “Settings &...
