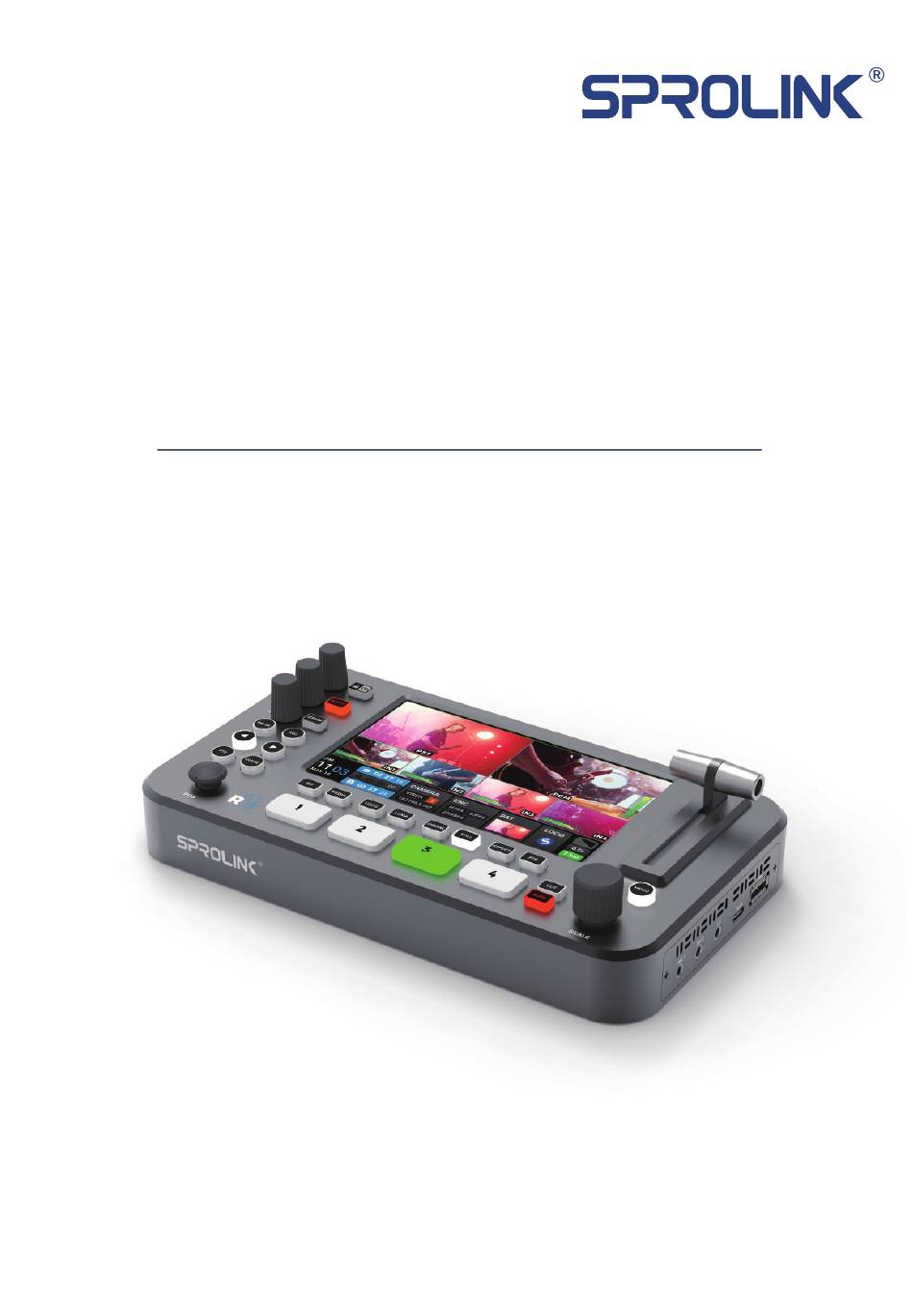

- Page 1 NeoLIVE R2 PLUS User Manual V1. 0 Creative Video Revolution...
-
Page 2: Table Of Contents
Contents 1. Quick Start 1.1 Overview 2. Common Operation 2.1 Video Operation 2.2 Audio Operation 3. Menu Functions & Details 3.1 Input 3.2 Output 3.3 Layer 3.4 Transitions 3.4.3 DIP & FTB 3.5 Chroma Key 3.6 Media 3.7 PTZ Camera 3.8 System Setting... -
Page 3: Overview

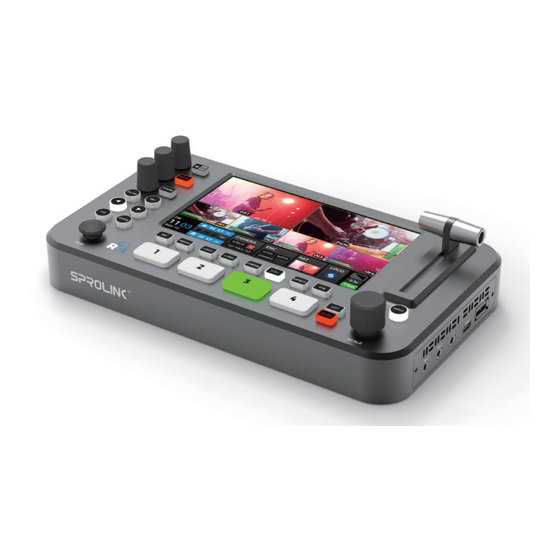

1. Quick Guide 1.1 Overview NeoLive R2 Plus is a professional live streaming switcher. It supports 4 x HDMI multi-resolution inputs and 2 x external audio inputs. The output supports 2 x HDMI PGM outputs, and transmits the real-time audio and video signals to the computer for live streaming through the TypeC interface, user can also fill in the RTMP code for network... -
Page 4: Common Operation
USB2.0 1-4 video input interface Monitor interface Power Jack Headphone jack Used to load pictures and logos from Connect the four Connecte the HDMI Plug the power adapter into Supports audio a USB flash drive & firmware update inputs to HDMI signal monitor for PGM display. - Page 5 e. Press the "AUTO" button, and the content will switch to the PGM output. You can also use CUT button to switch directly. 2.2 Volume Adjust a. Press the MENU button and select the audio part, you can adjust all the audio, or you can press the AUDIO button to enter.
-
Page 6: Menu Functions & Details
3. Menu Functions and Details 3.1 Input a. Input setting mainly includes input detection of 4 HDMI signal sources and picture setting. The input resolution of the current input source will be detected and displayed when there is HDMI input source access. b. -
Page 7: Transitions
you can change the screen by switching the signal source. Position and Zoom can adjust the size and position of the corresponding layer, and the five-way key can select the X-axis and Y-axis. Scale Digital Zoom （0,0） （1920， 1080） T-Bar Mode PST BG POS 44,6 POS 44,6... -
Page 8: Ptz Camera
Network 中 文 Mask 192.168.5.1 192.168.5.150 Gate DHCP ENGLISH 192.168.5.1 APPLY Auto Auto XIAMEN SPROLINK SCIENCE & TECHNOLOGY CO., LTD Room 1010, the 2rd Building, Torch Xinke Plaza, Weili 2 Road, Huli district, Xiamen, China sales@sprolink.com +86 592 5565698 www.sprolink.com...
