FM13PRO
User Manual
V 1 .0
Creative Video Revolution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NeoLive FM13PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for SPROLINK NeoLive FM13PRO

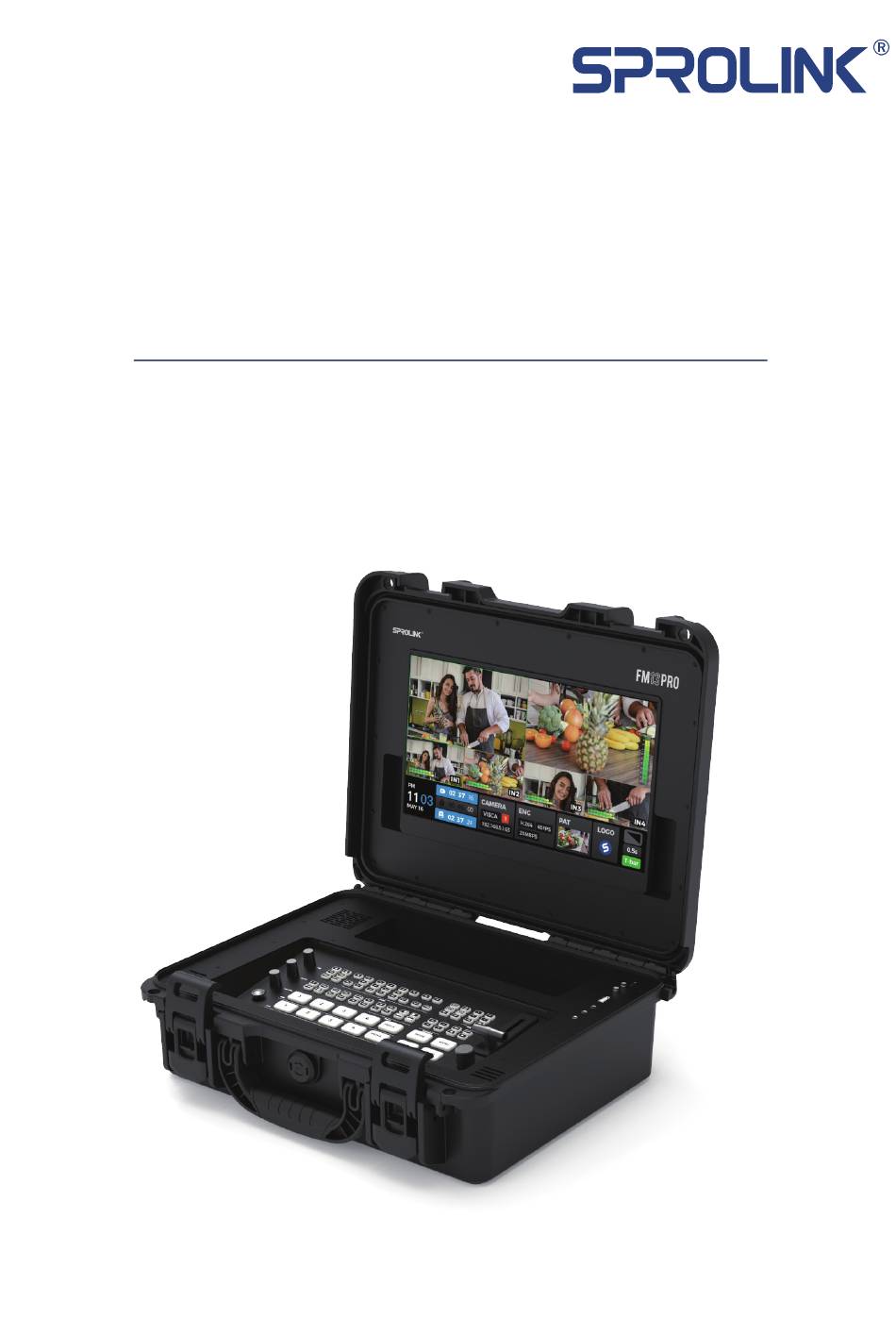

  • Page 1 FM13PRO User Manual V 1 .0 Creative Video Revolution...
  • Page 2: Table Of Contents

    Contents 1. Quick Start 1.1 Overview 2. Key Function Operations 2.1 Video Function Area 2.2 Audio Function Area 2.3 Auxiliary Function Area 3. Menu Functions 3.1 Inputs 3.2 Outputs 3.3 Layers 3.4 Transition 3.5 Chroma key 3.6 Audio 3.7 Scene 3.8 Media 3.9 PTZ Control 3.10 System Setting...
  • Page 3: Quick Start

    When using the UVC interface, the NeoLive FM13PRO is recognized by the comput- er as a high-definition webcam, supporting MJPEG and YUY2 formats (the default format is MJPEG under USB 2.0 and YUY2 under USB 3.0;...
  • Page 4: Key Function Operations

    1-4 video input interface Monitor interface Power Jack WiFi Type-C MV Output Built-in Wi-Fi Connect the four Connecte the HDMI Plug the power adapter into inputs to HDMI Module for monitor for PGM display. the power jack, making sure signal source like Wireless the screws are tightened.
  • Page 5: Audio Function Area

    2.1.2 The image shown below shows the transition effects function area, where you can select the transition effects and transition duration. 2.2 Audio Function Area The image below shows the audio function area. IN1-IN4 correspond to four signal sources, while MIC1 and MIC2 correspond to two external audio inputs. The status of the "ON"...
  • Page 6 2.3.5 The image below represent image still, fade to black(FTB) , and screenshot functions. Still button allows you to freeze the PGM image; FTB is to show black on the PGM output; Shot button means to crop the PGM image, and when using the screenshot function, FM13PRO requires a storage device to be inserted.
  • Page 7 ② The three knobs on the left can be used to load and save preset positions, and adjust the PTZ speed and zoom speed. To save a preset position, long press the first knob or press the view button before selecting the corresponding button to save (the PGM input source buttons 1-5 represent PTZ preset positions 1-5, and the PST input source buttons 1-5 represent PTZ preset positions 6-10).
  • Page 8: Menu Functions

    3. Menu Functions 3.1 Inputs 3.1.1 The input setting primarily include reading the input from 4 HDMI sources and configuring settings. When an HDMI input source is connected, the current input resolution will be displayed. 3.1.2 When there is no HDMI input source connected, it can be manually set to TP test signal.
  • Page 9: Chroma Key

    3.4.2 To enter the transition setting, use the knob to select the desired transition effect. Press the knob to confirm your selection. 3.4.3 DIP and FTB DIP transition effects and FTB can have their colors and images set. Colors can be adjusted using the knob and joystick button.
  • Page 10: Scene

    3.7 Scene The scene menu provides 12 preset scenes, and you can also access the scene menu directly by pressing the "SCENE" button and selecting the desired scene. After completing the screen editing, when we need to save the scene, click the SAVE button and select the corresponding number to save (at this time, PGM input source buttons 1 to 5 represent saved scenes 1 to 5, and PST input sources 1 to 5 represent saved scenes 5 to 10).
  • Page 11: System Setting

    Factory Reset Gate: 192.168.0.1 SPROLINK_002 SPROLINK_005 Mask: 255.255.255.0 APPLY Forget Network SPROLINK_003 SPROLINK_006 XIAMEN SPROLINK SCIENCE & TECHNOLOGY CO., LTD Room 1010, the 2rd Building, Torch Xinke Plaza, Weili 2 Road, Huli district, Xiamen, China sales@sprolink.com +86 592 5565698 www.sprolink.com...
