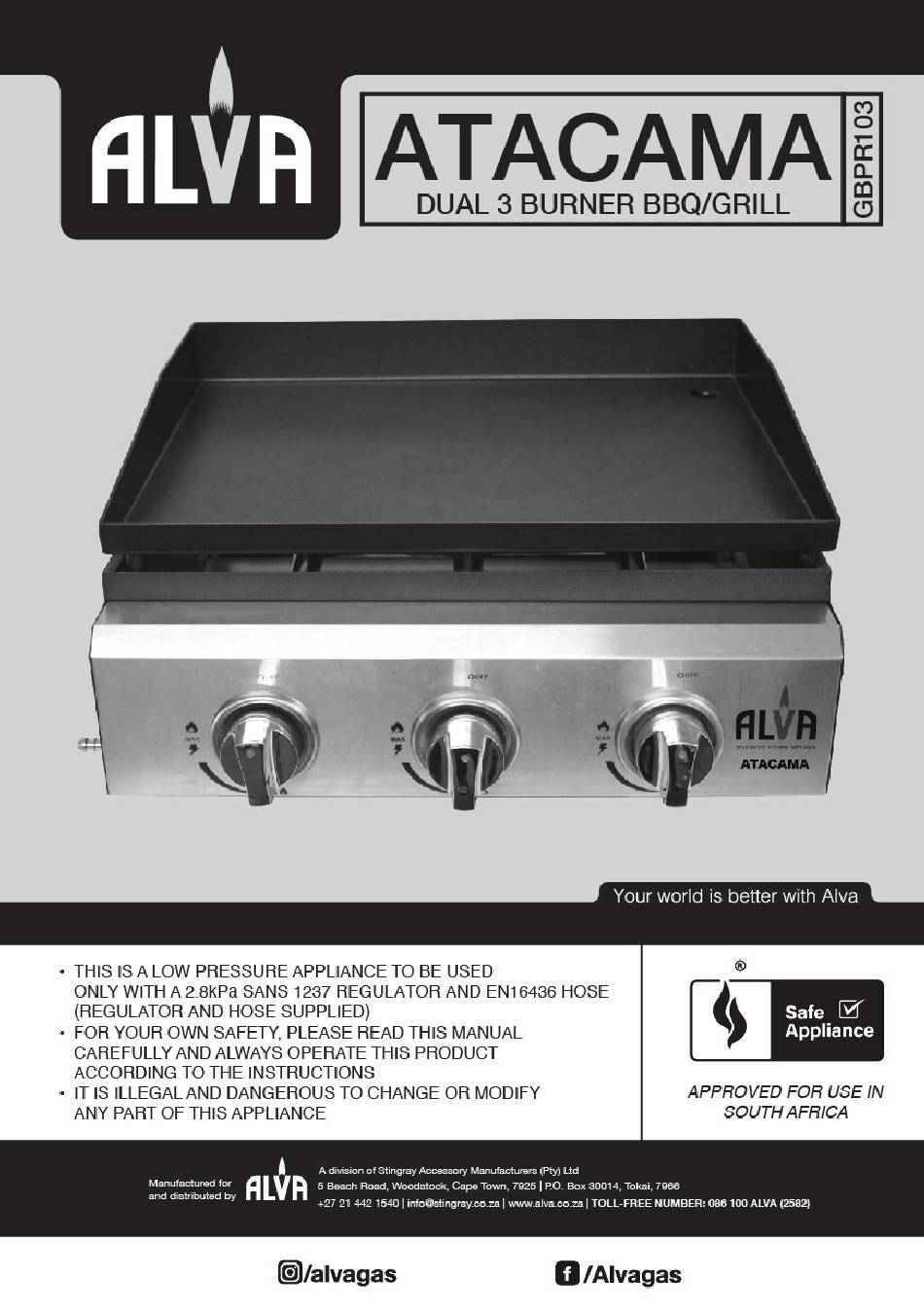

Alva ATACAMA Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATACAMA and is the answer not in the manual?

Questions and answers

Related Manuals for Alva ATACAMA

Summary of Contents for Alva ATACAMA

  • Page 3 IMPORTANT SAFETY INFORMATION • The operator is responsible for the safety of all third parties while the appliance is in use. As with all gas • The manufacturer’s warranty will be voided by incorrect use of appliances, misuse this product. of this appliance or •...

  • Page 4: Table Of Contents

    INDEX WARRANTY WARRANTY CLAIM PROCESS IMPORTANT NOTICE GENERAL INFORMATION Important information INSTALLATION PARTS LIST ATACAMA EXPLODED VIEW ATACAMA ASSEMBLY CONNECTING THE GAS HOSE TO THE BBQ GAS CYLINDER Cautions and FITTING THE GAS CYLINDER TO THE APPLIANCE warnings. LEAK TEST...

  • Page 5: Warranty

    Alva’s website. Please read these instructions carefully ALVA warrants this appliance to be free of defects in material and before use and keep quality for a period of 12 months from date of original purchase. them in a safe place This warranty covers the intended use of this appliance –...

  • Page 6: Warranty Claim Process

    In instances where warranty claims cannot be repaired or replaced, Alva can at its sole discretion opt to replace the item with something of equal or greater value. At Alva’s discretion, we may request to return such items for assessment.

  • Page 7: Important Notice

    Reading and understanding this manual should give you a good indication of what to expect from your Gas BBQ. If this product is not what you want or need, please help Alva and the environment by not damaging or destroying any part of the packaging.

  • Page 8: Installation

    INSTALLATION SELECTING A LOCATION This BBQ is for outdoor use only and should be placed in a Failure to follow these well-ventilated area. This appliance consumes oxygen and it is instructions may result dangerous for the health and safety of the occupants to use this in serious bodily injury appliance in areas not properly ventilated.

  • Page 9: Parts List

    Q Q T T Y Y N N O O . . P P A A R R T T Q Q T T Y Y M M 6 6 * * 2 2 5 5 ATACAMA 3 BURNER EXPLODED VIEW...

  • Page 10: Atacama Assembly

    ATACAMA 3 BURNER - ASSEMBLY 1. Install the feet (Feet *4, M6*25 size screw *4) M M 6 6 * * 2 2 5 5 X X 4 4 F F e e e e t t X X 4 4 ASSEMBLY TO USE 3X COOKING GRIDS 2.
  • Page 11 3. Insert the cooking grids NOTE : Always allow the BBQ to cool sufficiently before changing the grids to the plancha or vice-versa.
  • Page 12 ASSEMBLY TO USE THE PLANCHA PLATE WARNING: When using the plancha top, please remember to remove all 3 flame tamers, otherwise the flames from the burner tubes will be suppressed. 4. Take out the flame tamers 5. Set the plancha top NOTE : Always allow the BBQ to cool sufficiently before changing the grids to the plancha or vice-versa.

  • Page 13: Connecting The Gas Hose To The Bbq

    Tighten the supplied hose clamp over the hose at the gas manifold inlet GAS CYLINDER Before proceeding make A 9kg ALVA gas cylinder with a 5/8 inch BSP left hand thread is certain that you understand recommended. This will match the supplied regulator. Cylinders the IMPORTANT...

  • Page 14: Leak Test

    DO NOT attempt to place the cylinder outside in a use the BBQ if a leak is cool, well-ventilated area and present. contact Alva on 086 100 ALVA (2582). NEVER test for leaks Connections to be leak tested • A leak between the regulator with an open flame.

  • Page 15: Fixing The Regulator To The Cylinder

    FIXING THE REGULATOR TO THE CYLINDER Ensure that all the BBQ control knobs are in the OFF position. Connect the regulator to the gas cylinder according to your regulator and cylinder dealer’s instructions. Always check that the bullnose seal on the regulator is in place and in good condition before connecting the regulator to the cylinder.

  • Page 16: Manual Ignition

    MANUAL IGNITION Open the gas control valve at the cylinder. Remove the grids or plancha plate. The burners will be visible. First strike a 90mm BBQ match and hold it approximately 40 mm away from the LEFT hand burner and then turn the LEFT control knob anti-clockwise to the HIGH position If the burner fails to ignite after 5 seconds, turn the control...

  • Page 17: Flashback (Flame In Burner Tube)

    FLASHBACK (FLAME IN BURNER TUBE) In the event of flash back whilst the BBQ is in use, turn all the controls and the cylinder valve to the ‘OFF’ position. Wait 5 minutes before attempting to relight the Grill. If the problem persists, check for blocked ventury ports by removing the burner and cleaning with compressed air or with a pipe cleaner.

  • Page 18: Cleaning And Care

    CLEANING AND CARE As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their life. Your new gas BBQ is no exception. By following these cleaning procedures on a regular basis, your BBQ will remain clean and in good working order with the minimum of effort.
  • Page 19 BURNER CLEANING Regardless of which venturi cleaning procedure you used, we recommend that you complete the following steps to help prolong burner life. Scrub the entire outer surface of the burner with a non-metallic scouring pad to remove any loose corrosion. Clean any clogged holes with a stiff piece of wire All cleaning and (for example: an open paper clip).
  • Page 20 CLEANING THE PLANCHA PLATE After cooking, turn the burner control to "OFF" and let the placha plate cool before attempting to clean. Before first use and after each time it is used we suggest you wash the plancha plate in a mild soap and warm water solution, rinse with water afterwards.

  • Page 21: Warning

    WARNING • The appliance is designed for outdoor use only. • WARNING! Accessible parts may be very hot. Keep young children away. • Read the instructions before using the appliance. • Do not move the appliance while in use. • Turn off the appliance at the cylinder valve after use.

  • Page 22: Specifications

    MANUFACTURED FOR AND DISTRIBUTED BY ALVA A division of Stingray Accessory Manufacturers (Pty) Ltd P.O. Box 30014 Tokai, 7966 Tel: 021 442 1540 E-mail: info@stingray.co.za www.alva.co.za alvagas www.facebook.com/AlvaGas TOLL FREE NUMBER 086 100 ALVA (2582) *SPARES are available from our online store www.stingray.co.za...
