Summary of Contents for Alva MONDO

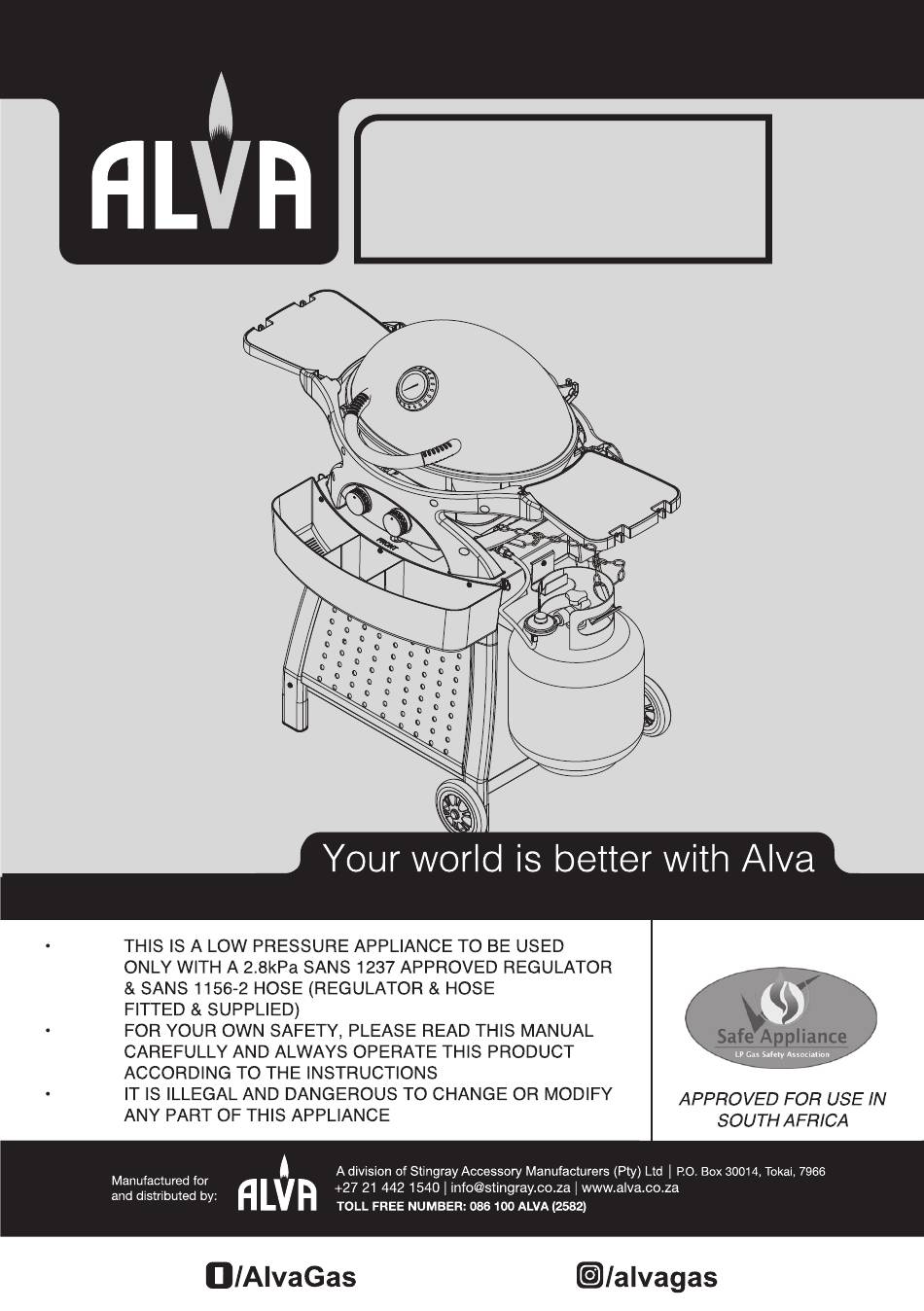

  • Page 1 2 BURNER ALVA MONDO .alva.co.za Manufactur...
  • Page 2 BBQ ASSEMBLY...
  • Page 3 Finally...

  • Page 5: Cooking Grills

    PARTS LIST BBQ ITEM NAME HANDEL DRIP TRAY COOKING GRILLS SHELVING...
  • Page 6 PARTS LIST TABLE/ BASE...

  • Page 7: Front Cover

    PARTS LIST TABLE/ BASE ITEM NAME TABLE CONDIMENT TRAY FRONT COVER CYLINDER HOOK LEFT REAR LEG LEFT FRONT LEG RIGHT REAR LEG (WITH AXEL HOLE) RIGHT FRONT LEG (WITH AXEL HOLE) BASE BOLT WHEEL SPLIT CLIP...
  • Page 8 ASSEMBLY INSTRUCTIONS...
  • Page 9 STEP 1 Turn the TABLE (1) upside down onto a stable flat surface. Insert the four LEGS (5),(6),(7) and (8) as shown so that the legs all lean outwards. The RIGHT SIDE LEGS (7) and (8) with the axle holes need to both be on the same side as indicated Secure each leg with one M6 x 50mm BOLT (M) and one M6 NUT (N).
  • Page 10 STEP 2 Fit the BOTTOM BASE (9) using four M6 x 15mm BOLTS (L). Once all bolts are in place, fully tighten using a Phillips Head screwdriver. Now tighten the bolts and nuts from the previous step as well. M6 X 15mm bolt (ML)
  • Page 11 STEP 3 Thread the AXLE (I) WHEEL (H Then through a SPACER (O) SPACER (O WHEEL (H) SPLIT PIN (P) HUBCAPS (G) to the Thread the BOLT (10) through the wheel (11) and spacer (E) and leg of the table and secure in place with split pin (G) SPLIT PIN Spacer (O) x2 Split Pin (P) x1...
  • Page 12 STEP 4 M6 x 15mm BOLT (S) ALLEN KEY (Q). M6 x 20mm BOLT (S) x4 Allen Key (Q) x1...
  • Page 13 STEP 5 CONDIMENT TRAY (J) into table Screw the CYLINDER HOOK (K) CONDIMENT TRAY (J) M6 x 20mm BOLT (S) x4 Allen Key (Q) x1...
  • Page 14 STEP 6 LEG LOCKING...
  • Page 15 STEP 7 AFTER SALES SERVICE MANUFACTURED AND DISTRIBUTED BY Alva Marketing (Pty) Ltd P.O. Box 30014 Tokai, 7966 Tel: 021 442 1540 E-mail: info@stingray.co.za www.alva.co.za @StingrayGroupSA www.facebook.com/AlvaGas TOLL FREE NUMBER 086 100 ALVA (2582)
