Please read owner's manual instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. Found on the nameplate on your oven and retain this information for future
reference.
SERIAL NO:
DATE OF PURCHASE:
SET YOURSELF FREE
Microwave Oven
Owner's Manual

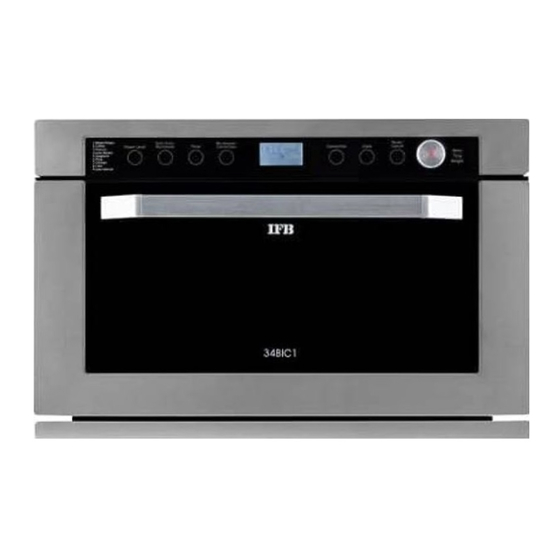

M O D E L : 3 4 B 1 C 1
M O D E L : 3 4 B 1 C 2
Advertisement
Table of Contents
Related Manuals for IFB 34B1C1
Summary of Contents for IFB 34B1C1
- Page 1 SET YOURSELF FREE Microwave Oven Owner’s Manual M O D E L : 3 4 B 1 C 1 M O D E L : 3 4 B 1 C 2 Please read owner’s manual instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO.
-
Page 2: Table Of Contents
C O N T E N T S SPECIFICATIONS SETTING THE CLOCK BEFORE YOU CALL FOR SERVICE MICROWAVE COOKING INSTALLATION QUICK START GROUNDING INSTRUCTIONS GRILL RADIO INTERFERENCE MICROWAVE+GRILL IMPORTANT SAFETY INSTRUCTIONS CONVECTION PRECAUTIONS FOR MICROWAVE ENERGY MICROWAVE+CONVECTION COOKING TECHNIQUES SETTING THE TIMER UTENSILS GUIDE MULTI STAGE COOKING PART NAMES... -
Page 3: Specifications
S P E C I F I C AT I O N S Power Supply 230V~240/50HZ 1400W Power Consumption (Microwave) Power Consumption (Grill) 2050W Power Consumption (Convection) 2050W Rated Microwave Power Output 900W Operation Frequency 2450MHz Outside Dimensions 386mm(H)×592mm(W)×540mm(D) Oven Cavity Dimensions 238mm(H)×405mm(W)×351mm(D) Oven Capacity 34Litres... -
Page 4: Before You Call For Service
B E F O R E Y O U C A L L F O R S E R V I C E Before asking for service, please check each item below: Check to ensure the oven is plugged in securely. If not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. - Page 5 6 0 0 2 0 M I N 2 0 M I N Microwave of Dimension 5 9 2 Make a Cabinet according to the dimension Fasten the oven into the cabinet with 2 screws (ST4x16)
- Page 6 Up Door 5 9 2 Down Door With Cabinet...
- Page 7 Remove the cabinet Remove the cabinet and oven door 5 9 2 4 0 5...
-
Page 8: Grounding Instructions
G R O U N D I N G I N S T R U C T I O N S This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. -
Page 9: Important Safety Instructions
I M P O R TA N T S A F E T Y I N S T R U C T I O N S When using electrical appliance basic safety precautions should be followed, including the following: WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance and keep for future reference. - Page 10 WARNING!--It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy. This Microwave complies with EN 55011/CISPR 11, in this standard it belong to Class B Group 2 classification. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400 GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic...
-
Page 11: Precautions For Microwave Energy
Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. P R E C A U T I O N S F O R E X C E S S I V E M I C R O W A V E E N E R G Y Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. -
Page 12: Utensils Guide
U T E N S I L S G U I D E Microwave cannot penetrate metal. : Use of transparent utensils in suitable for microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking. -
Page 13: Part Names
PA R T N A M E S Door Safety Lock System Oven Window Shaft Roller Ring Glass Tray Wave Guide (Please do not remove the mica sheet covering the wave guide) Back Convection Fan with Heater Control Panel... -
Page 14: Control Panel
C O N T R O L PA N E L CONTROL PANEL Microwave+ Pause/ Power Grill/Grill+ Timer Conevection Convection Clock Cancel Level Microwave Menu/ Time/ Weight DISPLAY SCREEN CLOCK Cooking time, power, indicators and present time Press to set clock time. are displayed. -
Page 15: Operation Instructions
O P E R AT I O N I N S T R U C T I O N S When the oven is first plugged in, a beep will sound and "HELLO WELCOME" scrolling display. In the process of setting, broke about 25 seconds the oven will return to standby mode. During cooking, if press PAUSE/CANCEL button once, the program will be paused, then press START/QUICK START button to resume. -
Page 16: Microwave Cooking
M I C R O W A V E C O O K I N G Press POWER LEVEL button repeatedly to select cooking power level. Turn MENU/TIME/WEIGHT knob to set cooking time. The longest time is 95 minutes. Press START/QUICK START button to start. Press POWER LEVEL button to select cooking power level: Press POWER LEVEL button to select different cooking power... -
Page 17: Microwave+Grill
M I C R O W A V E + G R I L L Combination 1: 30% of whole time for microwave cooking, 70% for grill cooking. Use for cooking fish or au gratin. Combination 2: 55% of whole time for microwave cooking, 45% for grill cooking. Use for cooking pudding, omelets, baked potatoes and poultry. -
Page 18: Microwave+Convection
M I C R O W A V E + C O N V E C T I O N Press MICROWAVE+CONVECTION button repeatedly to select temperature. Turn MENU/TIME/WEIGHT knob to set cooking time. The longest time is 95 minutes. Press START/QUICK START button to start. -
Page 19: Multi Stage Cooking
M U LT I S TA G E C O O K I N G Your oven can be programmed for up to 3 automatic cooking sequences. Suppose you want to set the following cooking program. Microwave cooking Grill cooking Convection cooking (without preheat function): Input the microwave cooking program. -
Page 20: Auto Coook
SENSOR MALFUNCTION PROTECTION: The system enters into protection mode when the system sensor is short circuited. The display shows "ERROR" and continues to beep. After pressing PAUSE/CANCEL button, the system comes back to normal standby mode. A U T O C O O K For the following cooking food or mode, it is not necessary to program the time and the cooking power. -
Page 21: Cleaning And Care
C L E A N I N G A N D C A R E Turn off the oven and unplug the power cord from the wall when cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. - Page 22 W A R R A N T Y C A R D IFB Industries Limned. (''The Company") warrants to the original domestic purchase of this microwave oven ("Appliances") that it is free from defects in workmanship & materials. During 12 months from the date of purchase of the new microwave oven model, all the parts of the microwave oven and 36 months on Magnetron &...
- Page 23 During the warranty period whenever the appliance is shifted from the original city of purchase to another city/town where service is provided by the company’s authorized service agent, a warranty transfer charge of RS. 300/- will be collected from the customer by the company’s authorized service agent. The above charges also include the reinstallation of the appliance.
- Page 24 C U S T O M E R C O P Y Mr./Mrs./Ms.: ......................Address: ............................................Telephone No.: ......................Model No.: ......................Serial No,: ......................Date of purchase: ......................Cash Memo No.: ......................Dealer Name and: ......................Address: ......................S E R V I C E S TAT I O N C O P Y ........................
- Page 25 IFB Industries Limited, Regd.off.: 14 Taratala Road, Kolkata - 700088...
