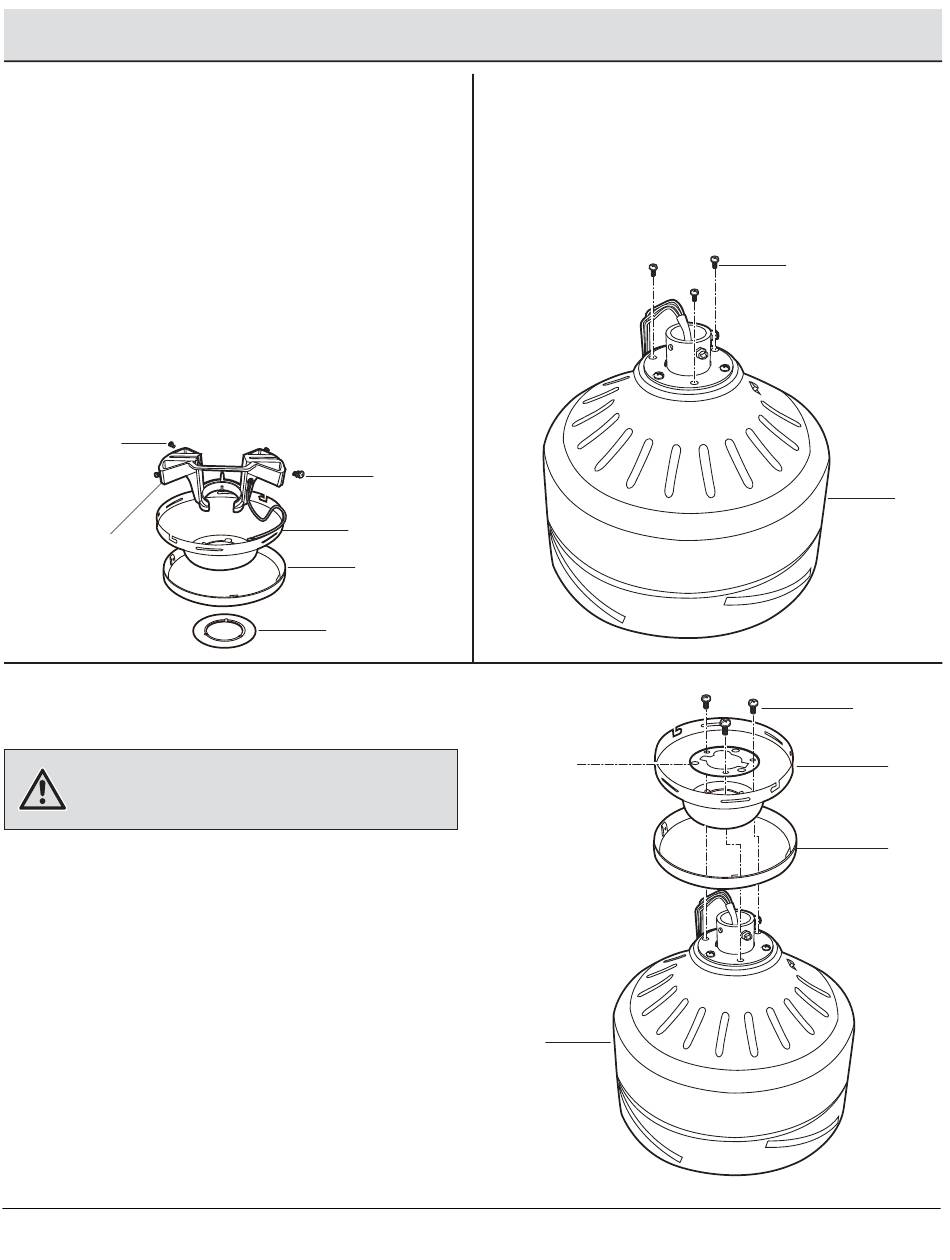

Assembly — Close-to-Ceiling Mounting
1
Preparing the canopy
□
Remove the canopy ring (B) from the canopy (C).
□
Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting screw with
lock washer (BB) on the top of the canopy (C).
□
Remove the two non-slotted canopy mounting screw
with lock washer (BB) and loosen the slotted canopy
mounting screw with lock washer (BB).
□
Remove the canopy bottom cover (D) from the canopy
(C) by turning the canopy bottom cover (D)
counterclockwise.
BB
A
3
Assembling the fan
WARNING: Failure to completely tighten the three collar
mounting screws (KK) could result in the fan becoming loose
and possibly falling.
□
Route the wires exiting the top of the fan motor
through the canopy ring (B) (make sure the slot
openings are on top), and then proceed to place the
canopy (C) and metal plate (OO) over the collar at the
top of the fan motor assembly (G).
□
Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor assem-
bly (G), and fasten using the three collar mounting
screws with lock washers (KK) previously removed.
□
Tighten the collar mounting screws (KK) securely.
2
BB
C
B
D
10
Preparing the motor
□
Remove three of the six collar mounting screws with
lock washers (KK) (every other one) from the collar on
top of the fan motor assembly (G).
OO
G
KK
G
KK
C
B
