TMG -GWC4 Product Manual

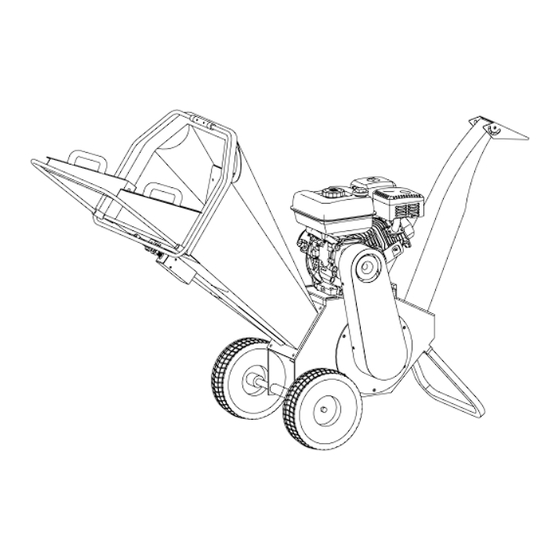

4inch wood chipper
Hide thumbs

Advertisement

Quick Links

V2021.09.28
PRODUCT MANUAL
4 inch Wood Chipper
7HP KOHLER
Powered
®
MODEL: TMG-GWC4
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
requests
WWW.TMGINDUSTRIAL.COM
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GWC4 and is the answer not in the manual?

Questions and answers

charles cunningham
February 18, 2025

Where specifically is the On/Off Switch for my TMG-GWC4? All I see is the fuel shut-off lever, throttle and choke.

1
1 comments:
Mr. Anderson
May 14, 2025

The On/Off switch for the TMG-GWC4 wood chipper is part of the recoil start system and is used to turn the ignition to the OFF position. It is typically located near the engine or control panel.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-GWC4

Summary of Contents for TMG TMG-GWC4

  • Page 1 4 inch Wood Chipper 7HP KOHLER Powered ® MODEL: TMG-GWC4 Please read the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Please call: 1-877-761-2819 or email: cs@tmgindustrial.com...

  • Page 2: Table Of Contents

    Table of Contents PART I: General Safety Rules.......................03 PART II: Familiar with the Wood Chipper....................09 PART III: Install the Wood Chipper...................10 PART IV: Operating the Wood Chipper.....................18 PART V: Maintaining the Wood Chipper....................21 PART VI: Troubleshooting and Parts List....................21 Conventions used in this manual WARNING This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 3: Part I: General Safety Rules

    PART I: General Safety Rules Safety Labels Found on Your Unit W W W . T M G I N D U S T R I A L . C O M P 0 3 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 4 WARNING Read this Safety & Operating Instructions manual before you use the Wood Chipper. Become familiar with the operation and service recommendations to ensure the best performance of your machine. W W W . T M G I N D U S T R I A L . C O M P 0 4 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 5 Propose CAUTION This machine is designed solely to chip wood and must not be used for any other purpose. It should only be used by trained operators who are familiar with the content of this manual. It is potentially hazardous to fit or use any parts other than your dealer parts. The company disclaims all liability for the consequences of such use, which in addition voids the machine warranty.
  • Page 6 A. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and themselves. B. Always wear protective goggles or safety glasses with side shields while using the Wood Chipper to protect your eyes from possible thrown debris. C.
  • Page 7 heater, clothes dryer or furnace. G. Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark plug wire, keeping it away from the spark plug to prevent accidental starting, wait 5 minutes before making adjustments or repairs. H.
  • Page 8 M. Never operate the machine when under the influence of alcohol, drugs, or medication. N. Use the machine only in daylight. O. Stay alert for hidden hazards or traffic. Keep all nuts and bolts tight and keep the equipment in good operating condition. A Note to All Users List of warnings and cautions cannot be all-inclusive.

  • Page 9: Part Ii: Familiar With The Wood Chipper

    PART II: Familiar with the Wood Chipper It may be helpful to familiarize yourself with the controls and features of the Wood Chipper. If you have any question, please contact the dealers in your area. TECHNICAL SPECIFICATIONS Start Recoil Start Engine 7HP four strokes Power...

  • Page 10: Part Iii: Install The Wood Chipper

    PART III: Install the Wood Chipper 1. After unpacking, check the following components Description Quantity Description Quantity Emergency switch extension Tire In-feed extension Feet assembly In-feed assembly Tire axis Discharge chute assembly Tool-wrench Machine body assembly W W W . T M G I N D U S T R I A L . C O M P 1 0 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 11 2. Installation in-feed assembly Parts no. Description Specifications Quantity Washer In-feed assembly Lock nut Spring washer Machine body assembly 3. Installation front standing leg assembly W W W . T M G I N D U S T R I A L . C O M P 1 1 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 12 Parts no. Description Specifications Quantity Machine body assembly Lock nut Spring washer Washer Feet assembly Bolt M10x45 4. Installation tire system Parts no. Description Specifications Quantity Washer Lock nut Spring washer Machine body assembly Tire 4.10/3.5-4 Washer Split pin Ø4x30 Tire axis Bolt M8x45...
  • Page 13 5. Installation discharge chute assembly Parts no. Description Specifications Quantity Washer Spring washer Bolt M8x30 Discharge chute assembly Machine body assembly 6. Installation in-feed extension Parts no. Description Specifications Quantity In-feed extension Washer Bolt M8x55 Bolt M8x30 In-feed assembly Lock nut Spring washer W W W .
  • Page 14 7. Installation emergency switch extension W W W . T M G I N D U S T R I A L . C O M P 1 4 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 15 Parts no. Description Specifications Quantity Emergency switch extension Split pin Ø4x40 In-feed assembly 8. Connect electric wire Emergency Stop Switch Protection Switch Step. 1: Check the electric wire on the machine Step. 2: Find the A and B electric wire find the ①②③...

  • Page 16: Part Iv: Operating The Wood Chipper

    PART IV: Operating the Wood Chipper It may be helpful to better familiarize yourself with the features of your Wood Chipper before beginning the steps outlined in this chapter. WARNING Read and understand all instructions, safety precautions, and/or warnings listed in “PART I: General Safety Rules”...
  • Page 17 Stopping Move the Throttle Lever to IDLE. Recoil Start: Turn the Ignition Switch to the OFF position. Electric Start: Turn the Key to the OFF position. Operator Zone Wood Chipping NOTICE Woods’ and branches’ diameter should be no bigger than 100mm. WARNING Do not place your hands into the chute when loading.

  • Page 18: Part V: Maintaining The Wood Chipper

    PART V: Maintaining the Wood Chipper Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's user manual for maintenance procedures. WARNING Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool.
  • Page 19 Oil filter Replace the blade NOTICE The blade is a bidirectional blade. If one side of the blade is worn, the blade can be used after changing the direction without immediate replacement. Turn the roller axle with wrench 1. Loosen the screws with T wrench when you see the blade 2.
  • Page 20 Adjust the clearance between blade and lower blade Loosen the #67 screw, then loosen the #48 screw, Move #66 on U-groove observe that the spacing between the roller blade and the lower blade spacer is within 1-3mm, Lock screw #48,Finally lock screw #67 Adjust blade clearance 1~3mm then...

  • Page 21: Part Vi: Troubleshooting And Parts List

    PART VI: Troubleshooting and Parts List Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact the dealers in your area. WARNING Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool.
  • Page 22 straightness. Machine does not seem The belts may be too loose and slipping. Adjust or replace belts as  to have full chipping needed. power. Operator Lever not Clean wood chips or other debris from under rack.  engaging rack with Clean accumulated dirt from frame where carriage assembly rests ...
  • Page 23 PARTS DIAGRAMS W W W . T M G I N D U S T R I A L . C O M P 2 3 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 24 W W W . T M G I N D U S T R I A L . C O M P 2 4 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 25 W W W . T M G I N D U S T R I A L . C O M P 2 5 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 26 PARTS LIST Ref.No. Description Ref.No. Description Switch extension Bearing In-feed extension assembly In- feed Washer M8 Bolt M8*45 Bolt M8X55 Engine fixation plate Bolt M8X20 Bolt M8*20 Pin 4*40 Bolt M8*20 In-feed extension assembly Bolt M5*12 Lock nut M8 Bolt M10*30 Spring 8 Nut M10 Bolt M8X30...
