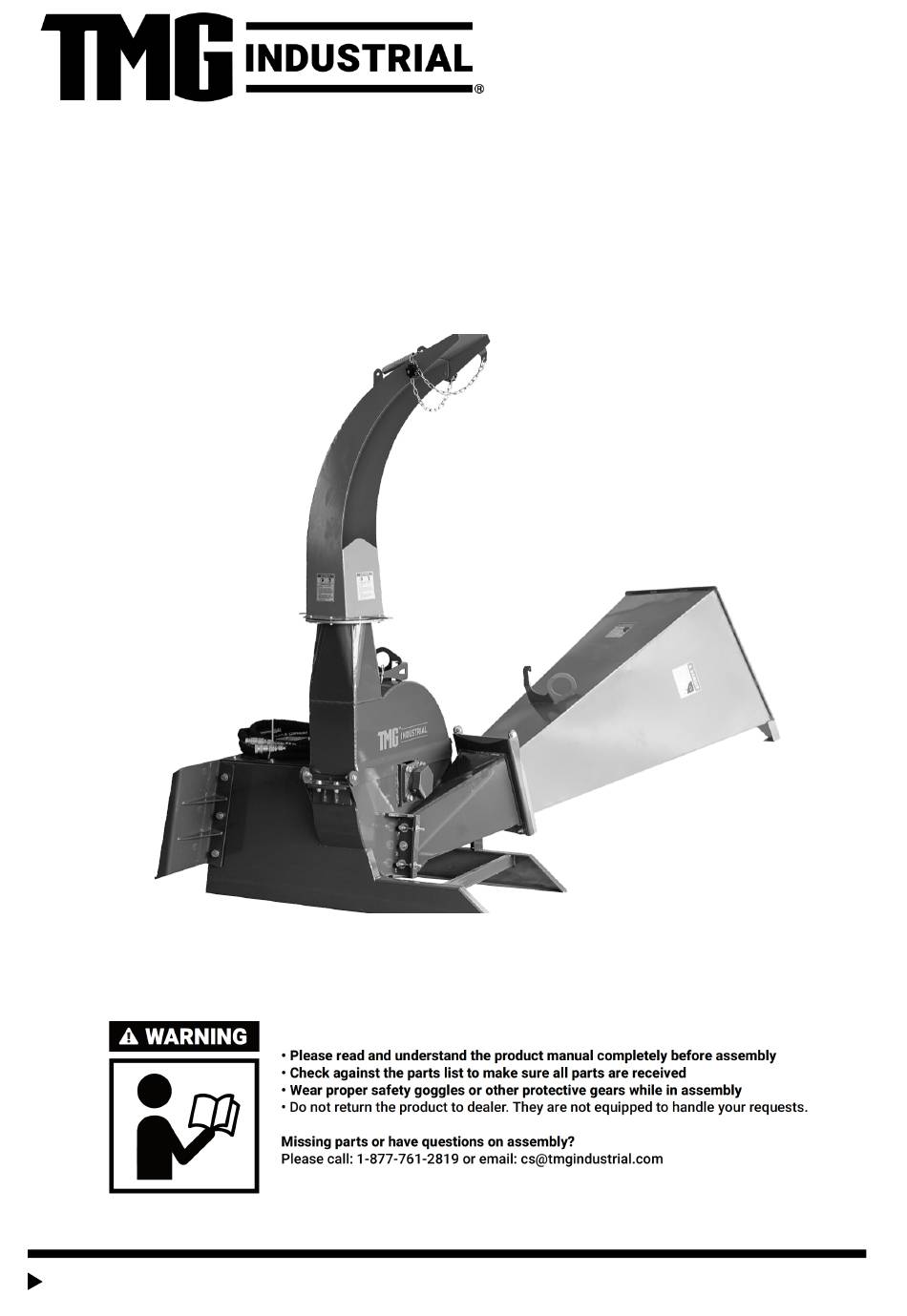

- Page 1 TMG-WC62S PRODUCT MANUAL v.2023.02.20 6“ SKID STEER WOOD CHIPPER www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 ..................................... 3 AFETY ..................................3 ENERAL AFETY ..............................4 QUIPMENT AFETY UIDELINES ..................................5 AFETY RAINING .................................... 5 AFETY IGNS ..................................... 6 REPARATION ................................6 AINTENANCE AFETY ..................................7 YDRAULIC AFETY ................................... 7 RANSPORT AFETY ............................ -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Wood Chipper. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Wood Chipper be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the skid steer and machine manuals. -
Page 6: Preparation
Preparation Never use the machine until you have read and completely understand this manual, the skid steer tractor Operator's Manual and each of the Safety Messages found on the safety signs on the skid steer tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Hydraulic Safety
A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this equipment. Periodically tighten all bolts, nuts and screws and check that all electrical and fuel connections are properly secured to ensure unit is in a safe condition. 10. -
Page 8: To The New Operator Or Owner
Machine Components The TMG Skid Steer Mounted Wood Chipper is a rotor with blades for chipping wood. A hinged feed hopper moves the wood material into the rotor. Each rotor is designed with 4 blades and a twig-breaker to generate the small pieces of wood. A stationary knife at the rear of the rotor housing is placed by the moving knives to shear, chip or chop the material. -
Page 9: Machine Break-In
Pre-Operation Checklist Efficient and safe operation of the TMG Skid Steer Mounted Wood Chipper requires that each operator reads and understands the using procedures and all related safety precautions outlined in this section. A pre-operation checklist is provided for the operator. -
Page 10: Machine Set-Up
Machine Set-Up Follow this procedure to prepare and setup the machine at the work site: Use the skid steer to position the Wood Chipper at the work site. IMPORTANT Position the machine so the prevailing wind/breeze blows the exhaust gases/fumes away from the operator's station. Lower the feed hopper down into its working configuration: remove the nuts on the hopper anchor bolts, unpin and the feeder hopper latch... - Page 11 Make sure there is enough room and clearance to safely drive up to the wood chipper. Drive up to the wood chipper while aligning the mounting components, and hook up into the mount. Secure the mounting: Drive into the mounting frame. Seat the top of the face plate into the frame of the wood chipper.
-
Page 12: Chipping Operation
Raise the wood chipper. Check that all hydraulic connections and locks are secure before beginning work. Reverse the above procedure when unhooking. Place planks or boards under the frame for extra support if required. Chipping Operation The Wood Chipper is a strong, rugged machine that is built to a straightforward design which provides consistent chipping of logs up to 6"... -
Page 13: Unplugging
Use a stick or branch to push any piece of material into the rotor that does not move on its own. If the jam persists then stop the engine and wait for the rotor to stop and then clear the jam. Do not take a chance with getting your hand caught in the rotor. -
Page 14: Maintenance
MAINTENANCE By following a careful service and maintenance program for your machine, you will enjoy many years of trouble-free operation. Blade and Breaker Maintenance The rotor and ledger blades need to be sharp for the Chipper to perform as expected. Periodic inspection is recommended. Keep the blades sharp to reduce the amount of power required during operation. -
Page 15: Ledger Blades Maintenance
Ledger Blades Maintenance The TMG-WC62S is equipped with a ledger (stationary) blade that acts as a shear for the moving rotor blades. The ledger blade is designed with 4 usable corners. When the corner facing the rotor blade rounds over, remove the blade and reinstall with a different corner facing the rotor blade. -
Page 16: Specification
SPECIFICATION Specifications & Capacities Universal skid steer style hookup • Chipping capacity: 6" • Max hydraulic pressure: 3600 psi • Hydraulic flow rate: 27-35GPM • Speed rated: 470-635 RPM • Rotor size: 30" • Rotor weight: 190 lb • • Rotor knives: 4/reversible Discharge hood height: 82”... -
Page 17: Parts List
PARTS LIST Wood Chipper Assembly www.tmgindustrial.com 17 / 22 TOLL FREE: 1-877-761-2819... - Page 18 Part No. Ref. Part Description GB/T6170 Nut M10 GB/T93 Spring Washer 10 GB/T96.1 WASHER 10 BX62R.7 Knife, Ledger GB/T96.1 WASHER 12 BX62R.11 Ledger Knife bolt GB/T5786 BoltM12x1.5x40 GB/T 93 Spring Washer 12 BX62HS.1 Housing, Bottom Rotor GB/T 5783 Bolt M16×50 GB/T 889.1 Nut M16 BX62H.15...
-
Page 19: Hydraulic Components
Hydraulic components Part No. Ref. Part Description BX42HS.12.2 Hydraulic hose 02: Length:2400mm GE22LREDOMD END STRAIGHT JOINT G3/4"-M30*2 GB/T 70.1 Bolt M10*60 GB/T 93 Washer 10 BX62HS.12.3A valve block GE10LRMOED END STRAIGHT JOINT G1/4"-M16*1.5 BMTY-200-4-FD-D-M Motor BX42HS.12.1 Hydraulic hose 01: Length:2400mm GE10LR3/8EDOMD END STRAIGHT JOINT G3/8"-M16*1.5 KIS-PT-G03SF... -
Page 20: Rotor Assembly
Rotor Assembly Part No. Ref. Part Description BX62R.3.2 Knife, Rotor GB/T 97.1 WASHER 12 GB/T 93 SPRING WASHER 12 GB/T 5783 Bolt M10*20 BX62R.3.1 Rotor Weldment www.tmgindustrial.com 20 / 22 TOLL FREE: 1-877-761-2819... -
Page 21: Discharge Chute Assembly
Discharge Chute Assembly Part No. Ref. Part Description BX62R.4.2 Deflector, Discharge Chute JB/T 7274.4 Knob10*40 JB/T 8112 D shackle BX62R.4.5 Tension spring 3 BX62R.4.1 Discharge Chute JB/T8108.2 Short chain GB/T 889.1 Lock nut M6 GB/T 97.1 Washer 6 BX42S.1.2 Hood Latch GB/T 5783 Bolt M6*25 BX62R.4.3... -
Page 22: Infeed Hopper Assembly
Infeed Hopper Assembly Part No. Ref. Part Description BX62S.2-1 Infeed Hopper BX62R.2.15 Flap, Hopper BX62R.2.16 Strap, Hopper Flap GB/T 97.1 WASHER 6 GB/T 93 SPRING WASHER 6 GB/T 5783 Bolt M6*12 www.tmgindustrial.com 22 / 22 TOLL FREE: 1-877-761-2819...
