Summary of Contents for Hyundai power products HDBTR5660

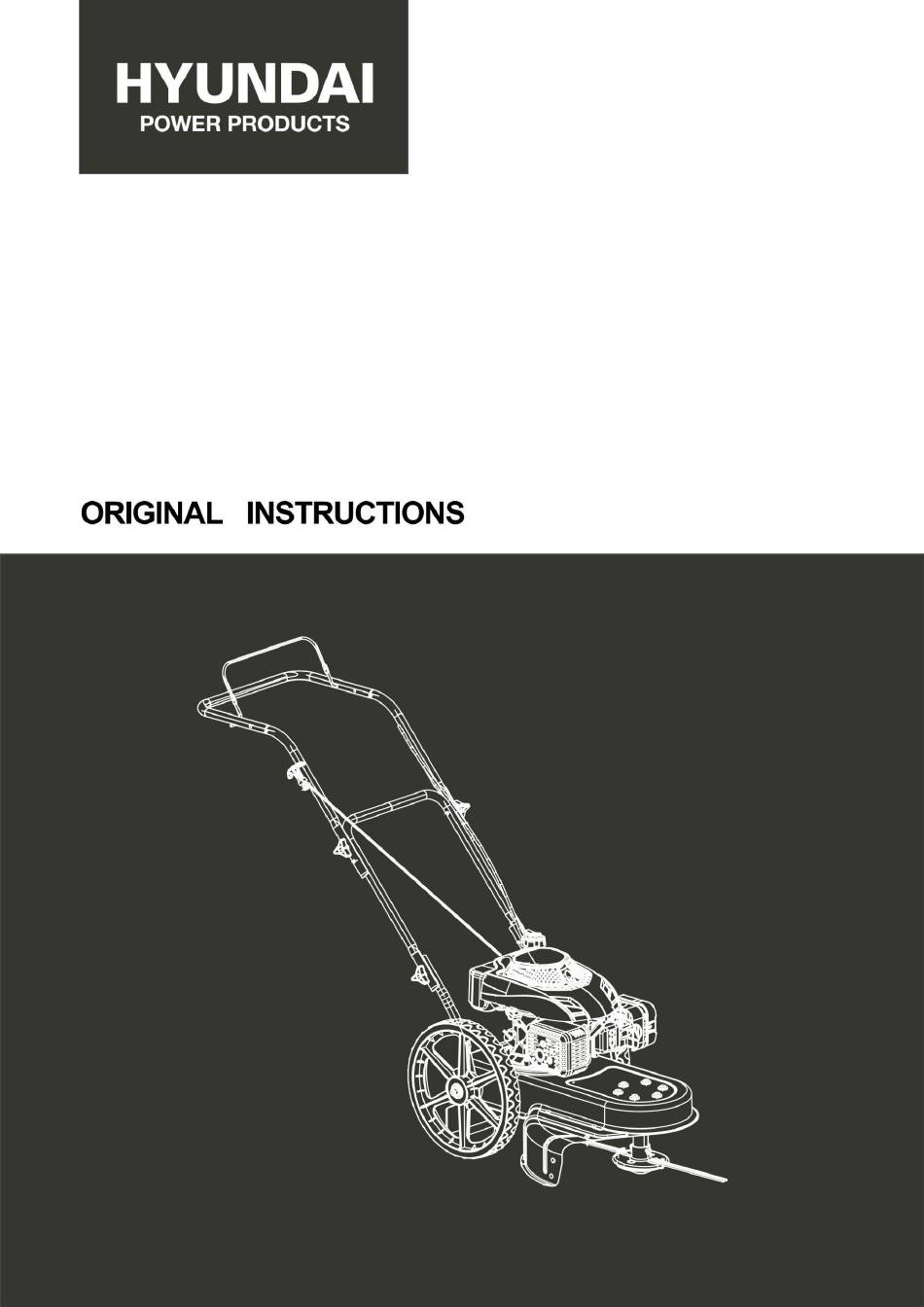

- Page 1 PETROL HIGH WHEEL BRUSHCUTTER HDBTR5660 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENTS INTENDED USE IMPORTANT SAFE OPERATION PRACTICES ASSEMBLY & SET-UP CONTROLS & FEATURES OPERATION MAINTENANCE & ADJUSTMENTS TROUBLESHOOTING TECHNICAL DATA DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Intended Use
1. INTENDED USE This device is only for trimming grass, vegetation, undergrowth and weeds in the domestic area. The device is designed for domestic use. It is not intended for continuous professional use. Any other use that is not expressly permitted in this manual may result in damage to the device and constitute a serious danger to the user. - Page 4 o) Do not tilt the trimmer when starting the engine, except if the trimmer has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator. p) Do not put hands or feet near or under rotating parts.
- Page 5 operate this machine in bare feet, sandals, slippery or light- weight (e.g. canvas) shoes. 11. Do not put hands or feet near or under rotating parts. Keep clear of discharge area at all times as the rotating spindle and trimmer lines can cause injury. 12.
- Page 6 Trim across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles. Always be sure of your footing.
- Page 7 minutes before starting engine. 12. Never store the machine or fuel container near an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances. 13. To reduce fire hazard, keep machine free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.
- Page 8 SAFETY SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbol Description READ THE OPERATOR MANUAL Read, understand, and follow all instructions in the manual(s) before attempting to assemble and operate EYE AND EAR PROTECTION Always wear safety glasses and earmuffs or safety goggles when operating this...
-
Page 9: Assembly & Set-Up
Slope Gauge 15°Slope 15°Slope (Too Steep) (OK) Figure 1 Figure 2 USE THIS SLOPE GAUGE TO DETERMINE IF A SLOPE IS TOO STEEP FOR SAFE OPERATION! To check the slope, proceed as follows: 1. Remove this page and fold along the dashed line. 2. - Page 10 Middle Handle Remove the triangle knob and carriage bolt from the left lower handle and the right lower handle. 2. Pivot the middle handle into the operating position and fasten the middle handle. See Figure 3-1 Upper Handle Remove the knob and carriage bolt from the left upper handle and the right upper triangle handle.
- Page 11 Assembly Trimmer Shield Pull the trimmer shield out into position by pivoting the hole. See Figure 3-4. Insert the bolt into the hole with screw the nut and fasten it by tool. See Figure 3-5. SET-UP Gas and Oil Fill-Up 1.
-
Page 12: Controls & Features
4. CONTROLS AND FEATURES Control Lever Recoil Starter Flywheel Screen Trimmer Line Trimmer hield Spindle Figure 4-6 Recoil Starter The recoil starter is attached to the right side of the upper handle. Stand behind the unit and pull the recoil starter rope to start the unit. -
Page 13: Operation
5. OPERATION Adjusting the Spindle Height The spindle height can be adjusted for various applications. To do so, proceed as follows: Loosen the bolt found on each side of the spindle shaft. Note: The bolts are designed so that they cannot be removed from the spindle shaft. - Page 14 The string trimmer is designed with the spindle off set to the left side, allowing the operator to trim • along a fence, landscaping, or a house to his or her’s right side without having to make any adjustments to the machine. Operate the string trimmer at a slower walking speed when trimming tall, thick weeds or grass.
-
Page 15: Maintenance & Adjustments
6. MAINTENANCE & ADJUSTMENTS MAINTENANCE General Recommendations Always observe safety rules when performing any maintenance. • The warranty on this string trimmer does not cover items that have been subjected to operator abuse • or negligence. To receive full value from warranty, operator must maintain the string trimmer as instructed here. - Page 16 WARNING: Never tip the trimmer more than 90º in any direction and do not leave the trimmer tipped for any length of time. Oil can drain into the upper part of the engine causing a starting problem. Scrape and clean the underside of the machine with a suitable tool. Do not spray with water. IMPORTANT: Do not use a pressure washer or garden hose to clean the machine.
-
Page 17: Troubleshooting
7. TROUBLESHOOTING Problem Cause Remedy Engine Fails to start Control lever disengaged. Engage control lever. Spark plug boot disconnected. Connect wire to spark boot. Fuel tank empty or stale fuel. Fill tank with clean, fresh gasoline. Engine not primed (if equipped Prime engine as instructed in the with primer). -
Page 18: Technical Data
8. TECHNICAL DATA Model HDBTR5660 Power 3 kW Cylinder capacity 161 cm Engine speed 3000/min Cutting width 560mm Wheel diameter 355mm Guaranteed Sound Power Level 105 dB(A ) Sound power level 102 dB (A); K=3 dB(A) Sound pressure level 88 dB (A) K= 3 dB(A) Vibration 6.812 m/s²... -
Page 19: Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: PETROL HIGH WHEEL BRUSHCUTTER Ref.:HDBTR5660 Serial number: 20220507751-20220508462 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it: Also complies with the following European directives:... -
Page 20: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
