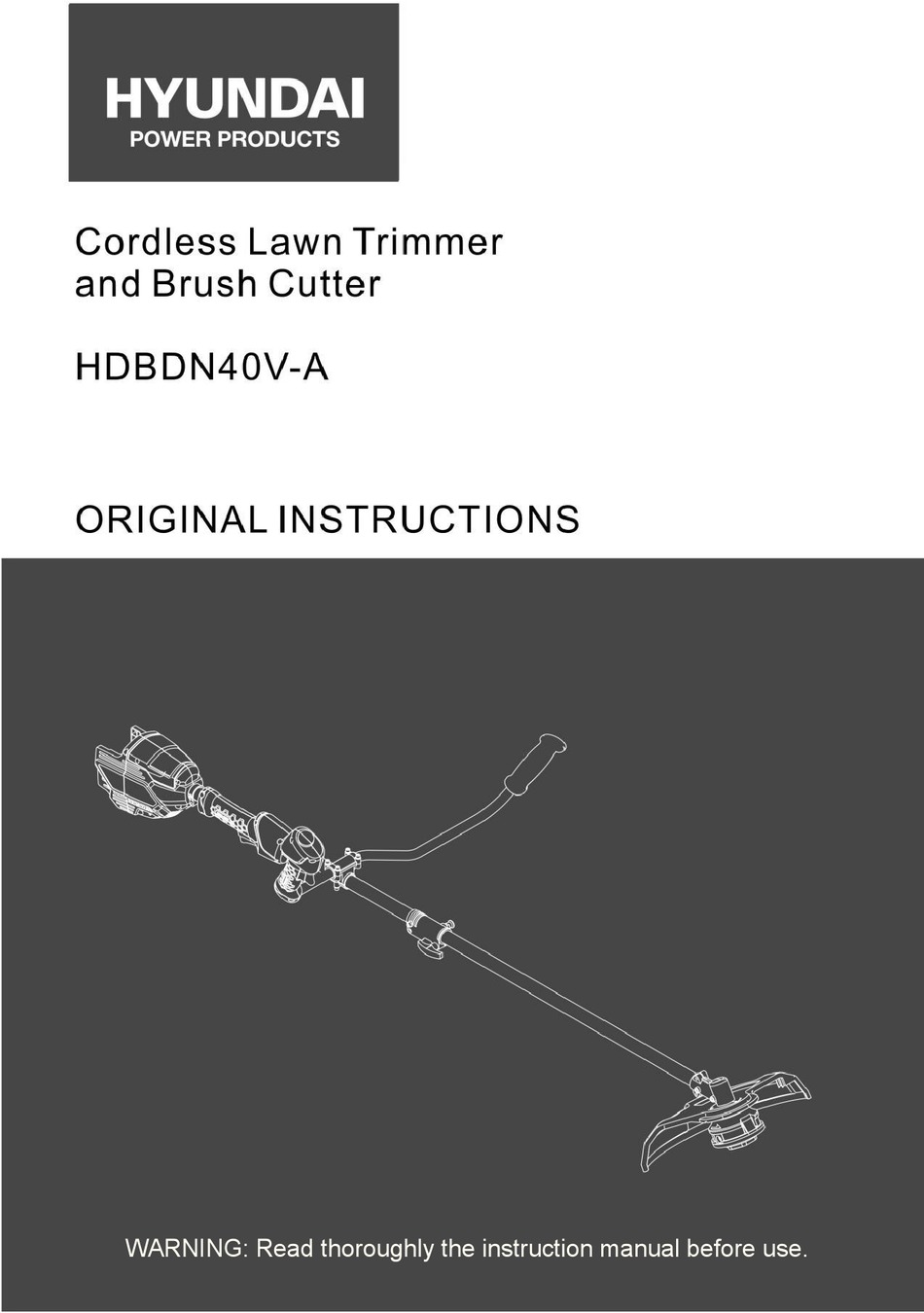

Hyundai power products HDBDN40V-A Original Instructions Manual

Cordless lawn trimmer and brush cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. SAFETY WARNINGS
IMPORTANT
WARNING: Read thoroughly the instruction manual before use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDBDN40V-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai power products HDBDN40V-A

Summary of Contents for Hyundai power products HDBDN40V-A

  • Page 1 1. SAFETY WARNINGS IMPORTANT WARNING: Read thoroughly the instruction manual before use.

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
  • Page 3 Operation a) Wear eye protection and stout shoes at all times while operating the machine. b) Avoid using the machine in bad weather conditions especially when there is a risk of lighting. c) Use the machine only in daylight or good artificial light.
  • Page 4 h) Always ensure that the ventilation openings are kept clear of debris. Maintenance and storage a) Switch off and remove the battery before carrying out maintenance or cleaning work. b) Use only the manufacturer’s recommended replacement parts and accessories. c) Inspect and maintain the machine regularly. Have machine repaired...
  • Page 5 the working area, problem with the tool, etc.). Check the working area before working and stay in alert when operating the tool. - Follow the provided instructions for assembly, use, repairs, maintenance and storage. - Never replace non-metallic cutting means with metallic cutting means; - Do not overreach and keep the balance at all times, to always be sure of the footing on slopes and to walk, never run.
  • Page 6 such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. - Prevent unintentional starting. Ensure the switch is in the off-position before connecting the battery pack, picking up or carrying the tool.
  • Page 7 - Cover the blade with the blade protector before storing unit, during transportation. Always remove the blade protector before using the unit. If not removed, blade protector could become a thrown object as the blade begins to turn. - Do not expose the tool to rain and humidity. - In case of abnormal vibrations, stop immediately to use the tool and remove the battery;...
  • Page 8 - Check the tool for loose fasteners. Tighten safely loose fasteners. - Never operate the machine with defective guards or shields, or without safety devices. - Always use the tool with the battery fully charged. Before use, check the charge level and charge the battery if necessary.
  • Page 9 garden chemicals and de-icing salts. Do not store outdoors. - Cover the blade with the blade protector before storing unit, during transportation. - For transportation, secure the machine against movement or falling to prevent injury to persons or damage to the machine.
  • Page 10 - Check all nuts, bolts and screws at frequent intervals for proper tightness to ensure the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorized service centre. INSTRUCTIONS FOR CHARGER - This charger can be used by children aged from 8 years and above and persons with reduced...

  • Page 11: Residual Risk

    - Warning: recharge non- rechargeable batteries. - The charger automatically charges the battery after it is plugged in. Do not exceed the capacity of the charger and the battery (see the technical specifications). RESIDUAL RISK Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors.

  • Page 12: Intended Use

    Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks. INTENDED USE Brush cutter The product is intended for cutting long grass, pulpy weed, brush and similar vegetation at or about ground level.
  • Page 13 Warning symbol Do not expose the tool to rain or humidity Wear hearing protection Wear ocular protection People must kept away from the work area Guarantee sound power level Do not use saw blade...
  • Page 14 Risks of projection – Keep bystanders away Be aware of blade thrust Beware of thrown objects Wear protection gloves Wear protective and non-skid shoes Wear a protective helmet Remove the battery before maintenance and repairs. Read the instructions...
  • Page 15 2.PRODUCT...
  • Page 16 Description 1. Battery compartment 2. Shoulder attachment 3. Security lock 4. Right handle 5. Trigger 6. Left handle 7. Drive tube 8. String head 9. Cutting blade for nylon wire 10. Blade (3 teethes) 11. Carter of protection 12. Battery (no provided) 13.
  • Page 17 Charger(no provided) Model: HCH40V26-A Input: 100-240Vac, 50/60Hz, 1,8A Output: 24-36 Vd.c., 1,0-1,8A Battery(no provided) Battery Li-on model HBAT40V4-A , 4Ah, 20 cells Maximum rotational frequency 6000-7000/min of the spindle Vibration total value 5,9m/s² k= 1,5m/s² Sound pressure level Lawn trimmer - Lpa: 82,5 dB(A) - K= 3 dB(A) Brushcutter...
  • Page 18 3. ASSEMBLY a. Handle Install the handle on the bar and screw it with the 4 screws provided. b. Carter of protection Install the carter of protection on the shaft of the tool. Fix it with the 3 screws provided.
  • Page 19 c. Cutting attachment Brushcutter When working with the metal cutting blade, wear gloves. Be careful of the sharp edges. - On the shaft, install the upper plate. - Insert a metal rod on the side of the drive gear and on the tool drive. - Insert in the following order: cutting blade, the lower plate, the cover bell and the holding nut.
  • Page 20 Lawn trimmer - On the shaft, install the upper plate. - Secure the shaft by inserting a metal rod on the side of the drive gear and on the tool drive. - Screw on the shaft the nylon cutting head.
  • Page 21 NOTE: - DO NOT ATTEMPT TO USE BOTH FUNCTIONS IN THE SAME TIME. RISK OF SERIOUS INCIDENTS AND INJURIES. - ALWAYS INSTALL THE CARTER OF PROTECTION WHEN USING THE TOOL d. Harness - Install the hook of the harness on the black hole localized on the tube of the tool.
  • Page 22 OPERATION OF QUICK RELEASE MECHANISM Pull the strip to release the machine from you in the case of emergency. BATTERY To charge the battery: - Remove the battery from the tool - Plug the charger to a power socket. Then plug the charger to the battery. Note：The battery and charger were not included in pack...

  • Page 23: Operation

    4. OPERATION 1) Place the battery in the tool. Align the grooves in the battery with those in the battery compartment. Hold the tab and then push the battery into its compartment to lock it in place. Make sure that the battery is properly installed to avoid any incident.
  • Page 24 Tips of operation Do not use the device without the carter of protection. Before each use, make sure that the appliance is functional. When working with the electric brush cutter, always wear protective equipment. Protect yourself from noise and comply with local regulations. The use of the device may be prohibited or limited on certain days (Sundays and holidays), at certain times (noon, evening), or in certain areas (spas, clinics).

  • Page 25: Maintenance And Storage

    WORKING WITH THE METAL BLADE Make sure the blade is properly mounted. Replace damaged or blunt blades. There is a risk of injury! o Blades cut only free surfaces. Inspect the area thoroughly and remove any foreign matter. Avoid impacts with stones, metal or other obstacles.
  • Page 26 Unscrew the cutting head. Push the both side of the cutting head to remove the cover, and then unscrew the nylon wire to remove it. Install the new nylon wire: first put the wire on the holes localised on the sides of the cutting head.

  • Page 27: Replacing The Blade

    REPLACING THE BLADE Replace the blade when it is damaged, worn or used. - Unscrew the holding nut. Then remove the cover bell and the lower plate. - Replace the blade by a new one - Replace the lower plate cover bell and fix them by screwing the holding nut in place.

  • Page 28: Service And Spare Parts

    SERVICE AND SPARE PARTS Have your appliance checked by qualified personnel using original parts. This will ensure the safety of the tool. If you require technical advice, repairs or genuine parts, contact the SWAP service nearest you. For information or places of service, go to: www.swap-europe.com.
  • Page 29 ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine: Cordless Lawn Trimmer and Brushcutter HDBDN40V-A Serial No: 20201134988-20201135587 The people name holding the technical file：Mr Olivier Patriarca Have been designed in compliance with the following standards: EN ISO 11806-1:2011;...

  • Page 30: Warranty

    8. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear.
  • Page 31 9. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
  • Page 32 10. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
