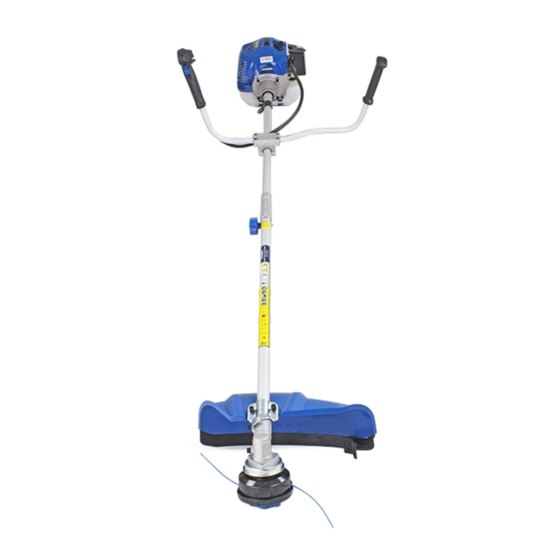

Hyundai power products HYBC5200X User Manual

Petrol
Hide thumbs Also See for HYBC5200X:
Table of Contents

Advertisement

Quick Links

HYUNDAI
POWER PRODUCTS
PETROL BRUSH CUTTER
HYBC5200X
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYBC5200X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai power products HYBC5200X

Summary of Contents for Hyundai power products HYBC5200X

  • Page 1 HYUNDAI POWER PRODUCTS PETROL BRUSH CUTTER HYBC5200X User Manual...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    CONTENTS • SAFETY • QUICK START • ASSEMBLY 10-16 HANDLEBAR ASSEMBLY 10-11 TRIMMER BLADE ASSEMBLY 12-13 TRIMMER GUARD ASSEMBLY GRASS TRIMMER ASSEMBLY CUTTER HEAD ASSEMBLY ATTACHING CUTTING ASSEMBLY TO DRIVE SHAFT • PREPARATION 17-18 MIXING 2-STROKE OIL ADDING FUEL FITTING REPLACING SPOOL LINE •...

  • Page 4: Safety

    SAFETY 1.1. General Safety Notes. 1.1.1. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 5 make sure that the machine is turned off. DO 1.4.5. ALWAYS carry fuel in the correct and clearly marked container. NOT enter a room you suspect of having carbon monoxide present – instead call the emergency services. 1.2.3.2. Contact a doctor immediately or go to hospital - let them know that you suspect carbon monoxide poisoning.
  • Page 6 1.6.2.1. Remove all clothing contaminated and circulatory tissue death. with electrolyte. If you cannot remove then 1.7.2. Not all factors that lead to white finger saturate in water. disease are known, but cold weather, smoking and other diseases that affect blood vessels 1.6.2.2.
  • Page 7  DO NOT mix fuel in an enclosed area or near open fires.  Make sure sufficient ventilation / ventilation. Warning against flying objects wear helmet,  Mix and store the fuel mixture in a goggles and ear protection. correctly marked container, which is allowed by local regulations.
  • Page 8 1.10.12. DO NOT wear rings and 1.10.10. jewelry or loose, dangling clothing that could NEVER use the machine with a saw blade get caught in the machine. DO NOT wear attachment it is STRICTLY FORBIDDEN. footwear with unprotected toes and DO NOT work barefoot or without leg protection.

  • Page 9: Quick Start

    At this point, check that you have all of the included items listed above. If any are missing or damaged, call 01646 687 880 or email info@hyundaipowerproducts.co.uk. Unboxing & Assembly Video: Go to youtube.com and type in Hyundai HYBC5200X assembly. You MUST read and understand the instruction manual first. Page 9...

  • Page 10: Assembly

    2.4. HANDLEBAR ASSEMBLY Unboxing & Assembly Video: Go to youtube.com and type in Hyundai HYBC5200X assembly. You MUST read and understand the instruction manual first. Handlebar Trigger assembly N.B. Note orie of trigger assembly power switch should be towards user.
  • Page 11 Undo the 4 Allen bolts and remove the cover, place handle bar into cradle and align hole in and refit the four Allen bolts once ed to suit user bolts. Undo 4 x Allen bolts and remove cover. Handlebar and trigger assembly Trigger assembly Handlebar Handlebar cradle...

  • Page 12: Trimmer Blade Assembly

    2.5. TRIMMER BLADE ASSEMBLY Before the trimmer guard to the machine you must first fit the trimmer guard cord r. Take the c blade and 2 self-tapping screws from the Blue tool bag. Align the c blade as shown and fix into place. N.B. Keep the protec ve sleeve in place u blade is fully secured and ready for use.
  • Page 13 Place the semi assembled trimmer guard and slide it over the s as shown below. You will need to rubber bung of the end of the lower sha – retain the bung for future use as it helps to keep the drive sha clear and free of debris. Once the guard clamp has been located into the hole of the s hten the two fixing bolts.

  • Page 14: Grass Trimmer Assembly

    2.7. GRASS TRIMMER ASSEMBLY Insert hex key into hole on the side of head of the boom. This will lock the head and stop it turning when removing/tightening central bolt. Turning clockwise (Left Hand Thread) Remove central bolt along with the ‘doughnut’ washer and thick ‘boss’...

  • Page 15: Cutter Head Assembly

    2.8. CUTTER HEAD ASSEMBLY 2.8.1. You should wear safety gloves when handling the blades. To fit the cutter blade you will need to remove the trimmer head. Remove the plastic blade protective guard (retain for future use). Insert hex key into head locking hole. Unscrew strimmer head by turning clockwise.

  • Page 16: Attaching Cutting Assembly To Drive Shaft

    2.9. ATTACHING CUTTING ASSEMBLY TO DRIVE SHAFT To attach the cutter assembly remove the protection bung (retain for future use) – undo the locking hand wheel, press the locking trigger and insert the cutter assembly into the drive assembly until it locates with the shaft. Once located the locking trigger will drop into place, pull shaft in outward direction to make sure it has locked.

  • Page 17: Preparation

    2.11. MIXING 2-STROKE OIL Fill the mixing bottle with fresh unleaded petrol to the fuel marker line use a 40:1 ratio. Then This machine will top up with 2 stroke oil to 40:1 ratio line shake until fuel/oil has mixed. also run on Aspen2 pre-mix fuel.

  • Page 18: Fitting Replacing Spool Line

    2.13. FITTING / REPLACING SPOOL LINE STEP 1 : Rotate the blue centre piece to align STEP 2 : Check the two holes are aligned. the arrow mark with the holes. STEP 3 : Pass the nylon rope through the STEP 4 : Use 4m or 2.4mm nylon trimmer line.

  • Page 19: Starting Procedure

    STARTING PROCEDURE Fill with fuel/oil mixture, make sure the fuel cap is secure – see sec 2.11. - Set the power switch on the handle to the ON Power switch Pull UP to turn ON Pump the primer bulb about 8 to 10 fuel shows in the bulb.
  • Page 20 For COLD start move choke lever UP to start posi on. N.B. For a WARM/HOT start you will probably not need to do this. Pull the choke lever out to start position Primer bulb Place one hand on the machine, and using the other hand pull the recoil un you feel a resistance, then pull briskly.

  • Page 21: Stopping Procedure

    Before starting work allow the engine to warm up. Once the engine has warmed up (2/3 minutes) you can apply the throttle. Press both the throttle lock and throttle lever together. To adjust the amount of throttle partiality release the throttle lever only. The throttle trigger can be locked into place by pressing the trigger lock button.

  • Page 22: Using The Machine

    5. USING THE MACHINE During use the engine and exhaust gets very HOT. You must keep all parts of the body and clothing clear. DO NOT leave a HOT machine near combustible materials. 5. Before Starting Work 5.1.1. YOU MUST check the work area for obstacles such as stones, metal rods or other objects.
  • Page 23 5.4. TRIMMING TECHNIQUES If you are not familiar with the trimming, practice with the machine with the machine stopped. 5.4.1. Always trim or cut with the engine running at high speed. 5.4.2. Do not run the machine slowly except for when warming up before use or cooling down after use.

  • Page 24: Maintenance

    MAINTENANCE Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Never touch the rotating nylon cord or blade. Check and maintain fuel level regularly, and maintain the fuel/oil mix to the correct ratio. Frequently check the brush cutter and make sure that all grass deposits are removed from the trimmer head and/or blade Check the blade, in order to obtain a good cut, the blade should always be sharp and well balanced.

  • Page 25: Air Filter

    6.1. AIR FILTER Never let the engine run without the air filter. A dirty air filter element affects the engine performance, increases fuel c and makes it difficult to start. If ce a loss of engine power. 6.1.1. Remove the air filter cover by undoing the Allen bolt using the supplied Allen key. 6.1.2.

  • Page 26: Spark Plug

    6.2. SPARK PLUG The spark plug MUST be fully ened otherwise the engine will overheat causing damage. Always complete the following steps r the engine has been turned off and allowed to cool down. 6.2.1. To make sure the engine runs correctly a spark plug gap of 0.6 -0.7 mm must be maintained and the spark plug must be free of carbon deposits.

  • Page 27: Trimmer Blade Sharpening

    6.3. TRIMMER BLADE SHARPENING When sharpening the blade you MUST wear safety gloves. 6.3.1. Remove the c blade from the shield. Remove the blade by undoing the 2 self- tapping screws (put in a safe place). Place the blade firmly into a vice. 6.3.2.

  • Page 28: Storage

    6.4. STORAGE If you do not follow these steps, deposit may arise in the carburetor. This will cause starting difficulties and may cause permanent damage. 6.4.1. Perform all the general maintenance that the maintenance section of your ‘User Manual’ is recommended. 6.4.2.

  • Page 29: Troubleshooting

    MOTOR DOES NOT COME UPTO SPEED TROUBLESHOOTING Possible causes; 1. Choke is in "cold start" position, exhaust system does not clog air supply, worn Movable 7.1. If troubleshooting does not solve elements, spark weak, valve clearance to big, the problem, contact your dealer or the sooty cylinder head.

  • Page 30: Specification

    SPECIFICATION Page 300...

  • Page 31: Part Locations

    PART LOCATIONS Spark plug Choke lever Air filter Exhaust Warning HOT Primer bulb Fuel tank Page 311...

  • Page 32: Declaration Of Conformity

    Notified Body for EC Directive 2000/14/EC TÜV Rheinland (Shanghai) Co., Ltd. Product Details Brand: Hyundai Model: HYMT5200X, HYBC5200X, HYPS5200X, HYPT5200X Description: Petrol brushcutter, multi-tool, pole saw and pole hedgetrimmer. Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.

  • Page 33: Recycling & Product Disposal

    11. RECYCLING & PRODUCT DISPOSAL 11.1. We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 34: Manual Updates

    13.3. We reserve the right to make any modifications without prior notice whenever necessary. 14. WARRANTY Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website www.hyundaipowerproducts.co.uk 15. SPARE PARTS Only use original parts.: The use offnon-original and/or incorrectly fitted parts will jeopardize the...
  • Page 35 Page 35...
  • Page 36 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
