Available in 2.0MP, 4.0MP, 8.0MP and 12.0MP WDR variants
Thank you for purchasing a FBIR Series CCTV Surveillance Camera.
This Quick Install Guide covers basic setup, installation and use of your surveillance system.
For the full user manual, instructional videos, tips on using your surveillance system &
warranty information, please visit: www.vip-vision.com
Applicable Models
VSIP4MPFBIRM
VSIP8MPFBIRM
VSIP12MPFBIRMV2
VSIP2MPFBIRL
VSIP2MPFBIRT
Camera Quick Install Guide
FBIR Series

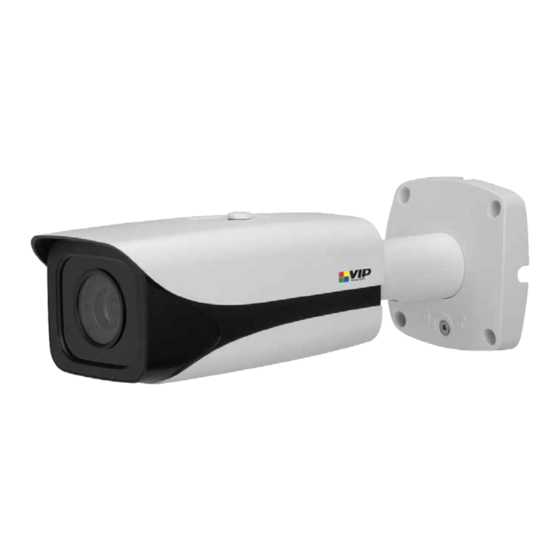

4.0MP WDR Infrared Motorised Bullet
8.0MP Infrared Motorised Bullet
12.0MP Infrared Motorised Bullet
2.0MP Ultra Low Light Infrared Motorised Bullet
2.0MP Number Plate Enhancement Motorised Bullet
Version 290517
Advertisement
Table of Contents
Related Manuals for Vip-Vision VSIP8MPFBIRM
Summary of Contents for Vip-Vision VSIP8MPFBIRM
- Page 1 Thank you for purchasing a FBIR Series CCTV Surveillance Camera. This Quick Install Guide covers basic setup, installation and use of your surveillance system. For the full user manual, instructional videos, tips on using your surveillance system & warranty information, please visit: www.vip-vision.com Applicable Models VSIP4MPFBIRM 4.0MP WDR Infrared Motorised Bullet...
-
Page 2: Safety Information
FBIR Series | Surveillance Cameras Safety Information Electrical safety • All installation and operation here should conform to your local electrical safety codes. • Check that the power supply is correct before operating the camera. • Ensure the power supply conforms to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated DC 12V or AC 24V in the IEC60950-1. -
Page 3: Fcc Information
Consult the dealer or an experienced technician for help. Note: Refer to the disk for more details, check and download corresponding user’s manual and tool. Before installation, open the package and check that all components are included. If any components are broken, contact your local supplier. www.vip-vision.com... -
Page 4: Included Components
FBIR Series | Surveillance Cameras 1. Pre-install Information Included components FBIR Series IP Camera Quick Start Guide Installation Accessories Bag: • Position installation map • Expansion bolts • Locking screws • Screwdriver Dimensions Connection ports Port Name Function AUDIO OUT Audio output port (RCA connector) AUDIO IN Audio input port (RCA connector) -
Page 5: Camera Installation
5. Plug in the external cables according to usage requirements. 6. Adjust monitoring direction of the device (See 1.3 Adjusting the camera angle). 7. Apply waterproofing to network cable (See 1.4 Waterproofing the camera). 8. Setup your alarm system (See 1.5 Alarm setup). 9. Setup is complete! www.vip-vision.com... - Page 6 FBIR Series | Surveillance Cameras 1.2 Accessing the microSD card slot (optional) 1.2.1 Installing the microSD card 1. Locate the lower cover on the bottom of the camera and open it. 2. Install the microSD card into its dedicated slot, making sure it’s properly secured. 3.
-
Page 7: Adjusting The Camera Angle
3. Put the main body of the waterproof connector on the network port and rotate it clockwise to lock the network port and waterproof connector firmly. 4. Put the waterproof cover on the main body of the waterproof connector and rotate it clockwise to lock them firmly together. www.vip-vision.com... -
Page 8: Alarm Setup
FBIR Series | Surveillance Cameras 1.5 Alarm setup 1. Connect the alarm input device to the alarm input of I/O cable. 2. Connect the alarm output device to the alarm output of I/O cable. 3. Open the WEB and set the alarm input and output. Alarm input on WEB corresponds to I/O cable on device. - Page 9 All the designs and software here are subject to change without prior written notice. Please visit our website or contact your local service engineer for more information. For the full user manual, instructional videos, tips for using your surveillance system and warranty information, please visit: www.vip-vision.com...
