welcoming

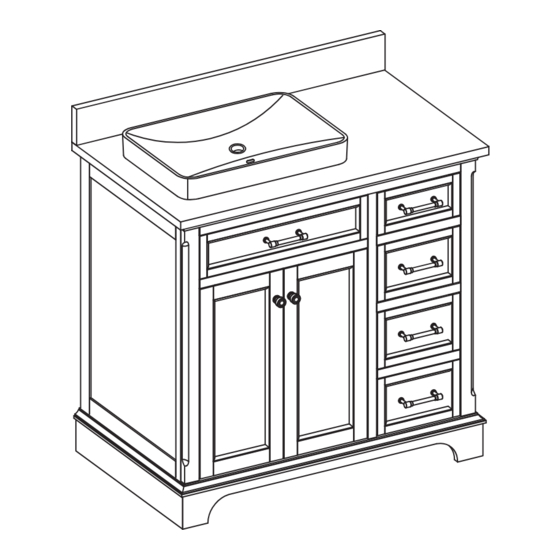

OPTION 1
(Semi-Recessed Sink)
36-IN VANITY WITH TOP
ITEM #4767954; 4767955; 4767952; 4767953; 4767950; 4767951; 4767948; 4767949
MODEL #2026VA-36-323-926; 2026VA-36-323-926-SR; 2026VA-36-323-925; 2026VA-36-323-925-SR;
2026VA-36-323-901; 2026VA-36-323-901-SR; 2026VA-36-323-900; 2026VA-36-323-900-SR
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
OR
1
•
inspiring
OPTION 2
(Undermount Sink)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth 2026VA-36-323-926
Summary of Contents for Allen + Roth 2026VA-36-323-926
- Page 1 (Semi-Recessed Sink) (Undermount Sink) 36-IN VANITY WITH TOP ITEM #4767954; 4767955; 4767952; 4767953; 4767950; 4767951; 4767948; 4767949 MODEL #2026VA-36-323-926; 2026VA-36-323-926-SR; 2026VA-36-323-925; 2026VA-36-323-925-SR; 2026VA-36-323-901; 2026VA-36-323-901-SR; 2026VA-36-323-900; 2026VA-36-323-900-SR ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
- Page 2 MODEL NUMBER DESCRIPTION 2026VA-36-323-926 RVLND 36-IN VTY RYL NAVY ECLT TOP 2026VA-36-323-926-SR RVLND 36-IN VTY RYL NAVY ECLT SR 2026VA-36-323-925 RVLND 36-IN VTY RYL NAVY EC TOP 2026VA-36-323-925-SR RVLND 36-IN VTY RYL NAVY EC SR 2026VA-36-323-901 RVLND 36-IN VTY RYL NAVY WH TOP...
-
Page 3: Table Of Contents
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink) Package Contents...........................4 Hardware Contents..........................4 Safety Information..........................4 Preparation............................5 Assembly or Installation Instructions ....................5 Care and Maintenance........................12 Warranty............................12 Replacement Parts List........................13 TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink) Package Contents.........................14 Hardware Contents........................14 Safety Information..........................14 Preparation............................15 Assembly or Installation Instructions .....................15 Care and Maintenance........................22... -
Page 4: Package Contents
PACKAGE CONTENTS (Semi-Recessed Sink) PART DESCRIPTION QUANTITY CARTON Vanity box 2 of 3 box 1 of 3 Backsplash Sink box 3 of 3 Left Door (preassembled to vanity (A)) Right Door box 2 of 3 (preassembled to vanity (A)) Shelf Floor Plumbing Cutout Lid Sink Template... -
Page 5: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) - Page 6 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face up onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 7 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 4. Put the sink template (L) on the top (B). The hole in the cardboard needs to be aligned with the hole in the stone top. Make sure the sink template and stone top are flush along the back edge. 5.
- Page 8 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 6. With the help of another adult, Gently lower the sink onto the stone top using even pressure to set the sink properly. Make sure the sink over-flow hole is at the front of wood cabinet. If some silicone caulk has over-flowed please clean it up at that time with water.
- Page 9 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 8. The back of the vanity is open for accessibility for drain(s) and water line(s) hookup. If your plumbing comes out of the back wall, insert the floor plumbing cutout lid (K), as shown in Illustration 8. This will close the hole and increase your storage space.
- Page 10 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 10. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 11 INSTALLATION INSTRUCTIONS (Semi-Recessed Sink) 12. To re-install drawers into vanity (A). Please fully extend metal glide tracks, gently lower and slide drawer box into rear glide catch, then, lower drawer box down to completely rest on extended glides, push plastic levers to lock the drawer box in place.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 13: Replacement Parts List
REPLACEMENT PARTS LIST FOR 2026VA-36-323-SR (Semi-Recessed Sink) For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 36" Carrara Marble Top 3500VT-36-900 Complete Set 36" Engineered White Top 3500VT-36-901 Complete Set 36"... -
Page 14: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity box 2 of 3 box 1 of 3 Backsplash Sink box 3 of 3 Left Door (preassembled to vanity (A)) Right Door box 2 of 3 (preassembled to vanity (A)) Shelf Floor Plumbing Cutout Lid HARDWARE CONTENTS... -
Page 15: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Undermount Sink) - Page 16 INSTALLATION INSTRUCTIONS (Undermount Sink) 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 17 INSTALLATION INSTRUCTIONS (Undermount Sink) 4. Screw bolts (AA) into the threaded holes of stone top (B). Hardware Used Bolt 5. Lower the sink brackets (BB) over the bolts (AA) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (DD) over bolts (AA) and secure with nuts (CC).
- Page 18 INSTALLATION INSTRUCTIONS (Undermount Sink) Helpful tip: it may be easier to install your choice of faucet (not included) before securing the vanity top (B) to vanity base (A). 6. To install the top (B) to the vanity (A). Apply silicone caulk to the top edge of the wood cabinet.
- Page 19 INSTALLATION INSTRUCTIONS (Undermount Sink) 8. The back of the vanity is open for accessibility for drain(s) and water line(s) hookup. If your plumbing comes out of the back wall, insert the floor plumbing cutout lid (K), as shown in Illustration 8. This will close the hole and increase your storage space.
- Page 20 INSTALLATION INSTRUCTIONS (Undermount Sink) 10. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 21 INSTALLATION INSTRUCTIONS (Undermount Sink) 12. To re-install drawers into vanity (A). Please fully extend metal glide tracks, gently lower and slide drawer box into rear glide catch, then, lower drawer box down to completely rest on extended glides, push plastic levers to lock the drawer box in place.
-
Page 22: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 23: Replacement Parts List
REPLACEMENT PARTS LIST FOR 2026VA-36-323 (Undermount Sink) For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 36" Carrara Marble Top 2500VT-36-900 Complete Set 36" Engineered White Top 2500VT-36-901 Complete Set 36"...
