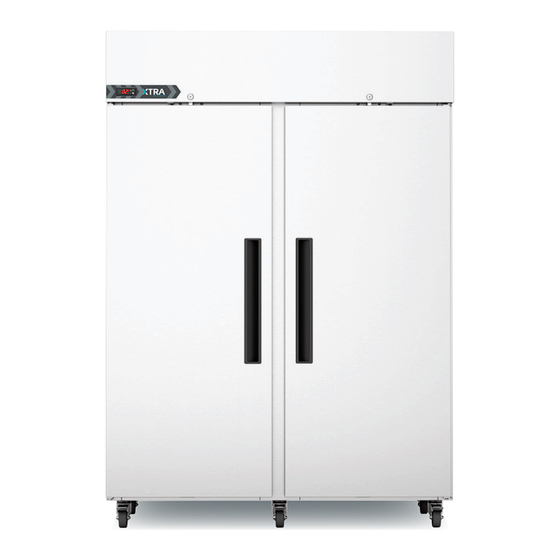

Foster XTRA XR600L User Manual
Hide thumbs
Also See for XTRA XR600L:
- Operation instructions manual (25 pages) ,
- Service manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Foster XTRA XR600L
Summary of Contents for Foster XTRA XR600L
- Page 1 User Manual Cabinets XR600H, XR600L, XR1300H, XR1300L.
- Page 2 Four Steps to extend the life of your appliance Getting to know your new Foster appliance Installation Using the appliance Maintenance www.fosterrefrigerator.com...
- Page 3 All installations must conform to local and municipal regulations and directives. In case of doubt contact your Foster authorised distributor or the Foster Technical Department. The information contained in this manual is current at the time of publication and is subject to change without notice.
-
Page 4: Climate Class
Climate Class Climate class indicated on the serial plate shows the ambient temperature & humidity at which this appliance has been tested, for the purposes of establishing values in line with European standards. Climate Class Temperature Relative humidity 30˚C 40˚C Electrical Safety This equipment shall be connected to an electrical supply protected by a Residual Current Device (RCD). -
Page 5: Disposal Requirements
Disposal Requirements This appliance contains components and materials which can be harmful to the environment if not disposed of correctly. Disposal of this appliance should be carried out by a suitably licensed waste contractor in accordance with national laws and regulations which may be in force at the time. Xtra Cabinets - User Manual... -
Page 6: Installation
Installation Removal of packaging Prior to carrying out this operation please ensure that these instructions have been read, understood and that the necessary personnel and tools are available to ensure that these instructions are complied with. It is also recommended that a full assessment of the installation conditions and requirements be conducted prior to commencing this operation. - Page 7 Ensure that the castors and appliance door are Ensure that the castors and appliance door are locked. locked. Support the appliance on the front/top of the Support the appliance on the front/top of the door and rear as the appliance is top heavy, cut door and rear as the appliance is top heavy, cut the support straps on both sides and unlock the the support straps on both sides and unlock the...
- Page 8 Start-Up and Test Sequence After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for 60 minutes before turning on. Ensure the appliance is situated on a firm, level surface, away from both hot and cold air sources, as this will affect its performance.
-
Page 9: Using The Appliance
Using the appliance Display Icons and Buttons Icon e Button 2 Icon a º Button 1 Icon b Icon c Button 3 Icon d Icon g Icon f Button 4 Icon Button Compressor on / Alarm On / Off / Standby Evaporator fans on Up / Increase value Defrost on... -
Page 10: Set Point
‘Loc’ . If button 1 is not pressed the new value will not be stored. Exit by pressing button 3. If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for advice. -
Page 11: Alarms Notification
Shelves, Supports, Loading and Air Flow The appliance is supplied with adjustable, removable trayslides and shelves. Each shelf is capable of holding up to 40kg of product evenly distributed. Do not block air vents with product. A minimum of 25mm should be maintained between the top of the product and the shelf above. -
Page 12: Cleaning And Maintenance
12 months to maintain your warranty and ensure optimal performance of your appliance. We recommend that service is carried out by an authorised Foster 6-12 MONTHS agent or by contacting the Foster Service team using the contact details in this manual. www.fosterrefrigerator.com... - Page 13 Cleaning Condenser Regular cleaning of the condenser (located behind the front cover) increases energy efficiency and prolongs the life of your appliance. Never use a wire brush, abrasive or corrosive materials to clean the condenser. This should be carried out periodically, by a competent engineer as outlined in the Regular Maintenance section of this manual.
-
Page 14: Troubleshooting
During this time the appliance cannot maintain an accurate temperature and all product should be removed and the appliance switched off. tE - This indicates that the evaporator probe has failed. Call your authorised dealer or Foster Service to arrange for this to be replaced. - Page 15 If the reason for the malfunction cannot be identified, disconnect the electrical supply from the appliance and contact your authorised dealer or Foster Service. When requesting a service call, please quote the model and serial number which can be found on the inside of the appliance on the right hand wall and begins with ‘E’ .
- Page 16 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698485 For service +44 (0) 1553 780333 regional@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...
