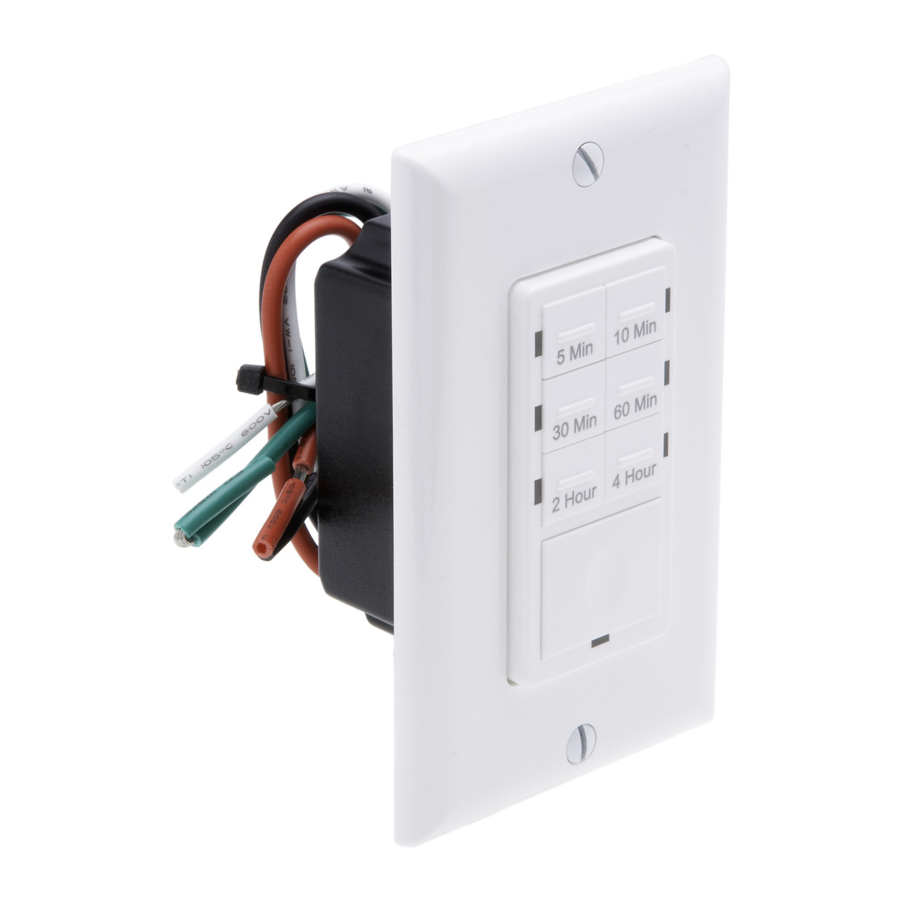

TNSi INDUSTRIES TORK R5M4HW - In-Wall Digital Countdown Timer Manual

INTRODUCTION

We recommend that installation be made by a licensed electrician. Disconnect power at main panel prior to installing or servicing this time switch or the equipment connected to it. Connect in accordance with national and local electrical codes.

For your safety: Connecting a proper ground to the timer switch provides protection against electrical shock in the event of certain fault conditions.

OPERATION

This preset timer has two program sections:

Option 1- indicator light OFF (default)
Turn ON the connected light or fan by pressing the desired time button, or the ON/OFF button. If you press the desired time button, its indicator light flashes twice to show the new countdown interval is set. If you press the ON/OFF button, its indicator light flashes twice to show that the last used time selection was activated. When the set time is out, the indicator light under the ON/OFF will also flash twice.

Option 2- indicator light ON
Step 1: To change program from the factory preset mode (Option 1) so that the indicator light for the selected preset time button stays on for the duration of the time period, simply press and hold the top 2 buttons (5 min and 10 min) simultaneously. All indicator lights will flash once indicating program has been switched.
Step 2: In this mode, when a preset time button or the ON/OFF button is pressed, the selected preset time button will remain illuminated for the duration.
Step 3: To switch back to Option 1 mode, simply repeat above steps.
Note: In the case of a power failure, the Preset Time Switch will switch back to the factory setting mode (Option 1).

Manual OFF
While a timer is active, you can press the ON/OFF button to turn OFF the connected light or fan immediately.

Hold Mode(Continuous Operation)
To turn timer On for extended periods of time, press and hold the push button for more than 8 seconds. Timer enters HOLD mode, the connected load is turned ON. To exit HOLD mode, press any button of the timer to turn OFF the connected load.

WIRING

Wire the Timer Switch

1. Twist the existing wires together with the wire leads on the timer switch as indicated in the drawing. Cap them securely using the wire nuts provided.
2. Connect the green or non-insulated (copper) GROUND wire from the circuit to the unit GROUND wire.
3. Connect the power wire from the circuit (HOT) to the unit black wire
4. Connect the power wire to the lamp or fan (LOAD) to the unit red wire
5. Connect the NEUTRAL wires from the circuit (NEUTRAL) to the unit white wire.
   Note: Please check the presence of neutral wire, do not connect neutral with load wire together.

TROUBLE SHOOTING

To Test the Timer Switch

Press the ON/OFF button. The connected light or fan comes ON.
The connected light or fan should turn OFF in the minutes of the selected time delay. You can turn it OFF manually by pressing the ON/OFF button.

Light or fan will not turn ON

1. Press ON/OFF button. The connected light or fan is not ON when two indicator lights flash:
   • Check the light bulb and/ or motor switch on the fan mechanism.
   • Turn OFF power to the circuit then check wire connections.
2. Press ON/OFF button, neither indicator light does flash:
   • Turn OFF power to the circuit then check wire connections (such as neutral and hot wire) for the Timer.

Light or fan will not turn OFF

1. Press the ON/OFF button. If connected light or fan does not turn OFF, turn OFF power at the circuit breaker then check wire connections.

ONE YEAR LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY: If this product fails because of a manufacturing defect within one year after purchase, we will, at our option, either repair or replace it at no charge. Our warranty does not cover damage caused by accident, abuse or misuse. We assume no further liability with respect to the sale or use of this product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY. We make no warranty with respect to the fitness of any goods for the users particular application. This warranty gives you specific legal rights, and you also may have other rights which vary from state to state. It is our intent to provide accurate and current specification information. However, in the interest of product improvement, TORK may alter the specifications or constructional details without prior notice.
