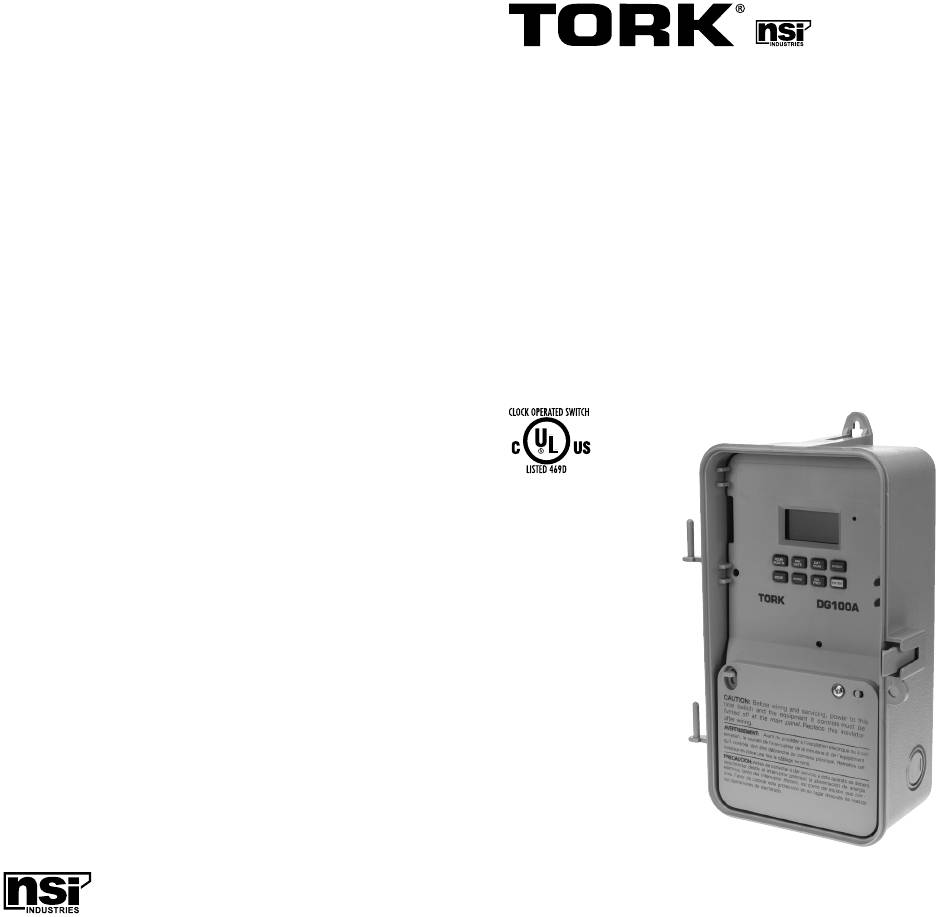

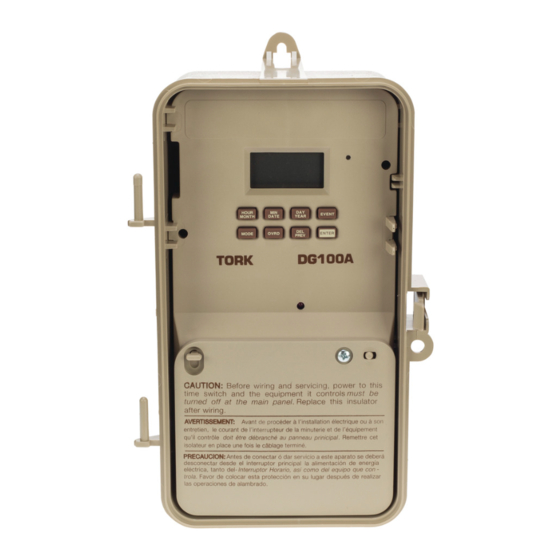

- Page 1 INSTRUCTION MANUAL DG100A DGM100A DG200A 7 DAY DIGITIAL TIME SWITCH 888.500.4598 FOR TECHNICAL SUPPORT: 888.500.4598 www.nsiindustries.com 03.14 MLI-200 (B)
- Page 2 TORK MODELS DG100A / DGM100A / DG200A 7 DAY DIGITAL TIME SWITCH TABLE OF CONTENTS READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL TIME SWITCH. SEE WARNING ON FRONT PANEL – Failure to comply with Section Page instructions could result in personal injury and/or property Installation Instructions.
- Page 3 1.0 CLOCK FORMAT a. For standard USA daylight savings (DST), press MODE The first time unit is powered up, it will display a flashing and go to step 5.0. 12 Hour. Use HOUR key to set clock format to either 12 b.
- Page 4 Now press the MONTH and DATE buttons to modify the Press the ENTER key. ending DST settings. Pressing DAY changes the default day. EXAMPLE: A screen showing “10: L SU E” represents Octo- ber (10), the Last week (L), Sunday (SU), and the End (E) of daylight savings time.
- Page 5 7.0 REVIEW, MODIFY, AND DELETE Press MODE to advance to any of the following MODES: AUTO MODE: In this automatic mode, the unit will ex- ecute the scheduled programs. Time, day, seconds and load status are displayed. If today is a programmed holiday, the day of the week will flash.
- Page 6 DST MODE: Factory default is set at US standard day- Use the EVENT key to display: light savings dates noted by ON. To remove daylight savings time setting, press DEL to change screen to show OFF. DST may be activated again by pressing DEL.
- Page 7 DG100A 120/277VAC DGM100A 120/277VAC DG200A 120/277VAC...
