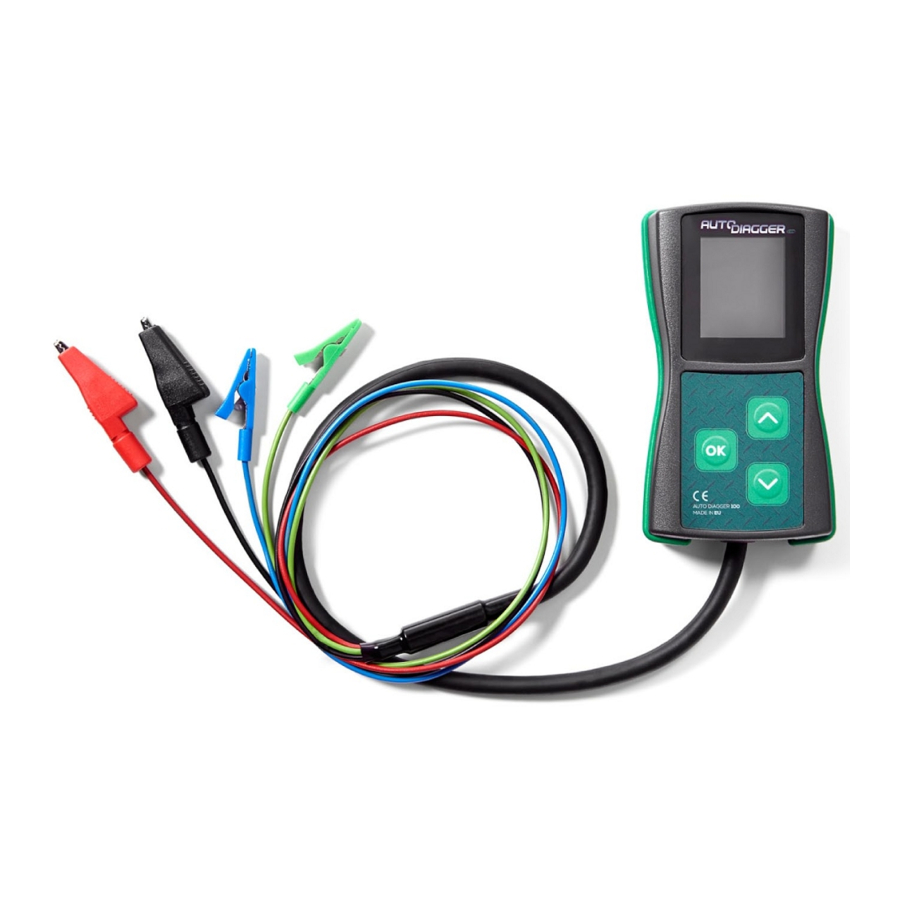

AUTODIAGGER 100 - Tester Operating Manual

Main screens

Additional screens

(they appear when the connection with the controller is established)

Operation

LIN, BSS - in order to test the controllers of this type, connect the green cable to the control input and select the COM interface.

RLO, SIG, P-D, L-RVC - in order to test analogue controllers, connect the green cable to the control input and the blue cable to the input informing on the current alternator loading (DFM, FR). Next, select the desired interface:
RLO - Toyota
SIG - FORD
P-D - Mazda
L-RVC - GM

Buttons

	used to confirm the selected testing interface; if pressed during a test; you will go back to the interface section menu
	in the interface selection menu, used to change the selected interface; if pressed during a test, the value of the set voltage will be changed;

Connectors
