Daytona DS400SB Owner's Manual & Safety Instructions

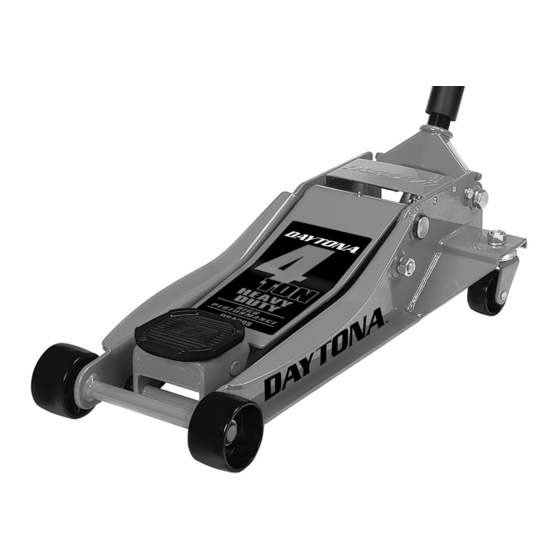

4 ton heavy duty floor jack
Hide thumbs

Advertisement

Table of Contents

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22i
64782

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS400SB and is the answer not in the manual?

Questions and answers

Related Manuals for Daytona DS400SB

Summary of Contents for Daytona DS400SB

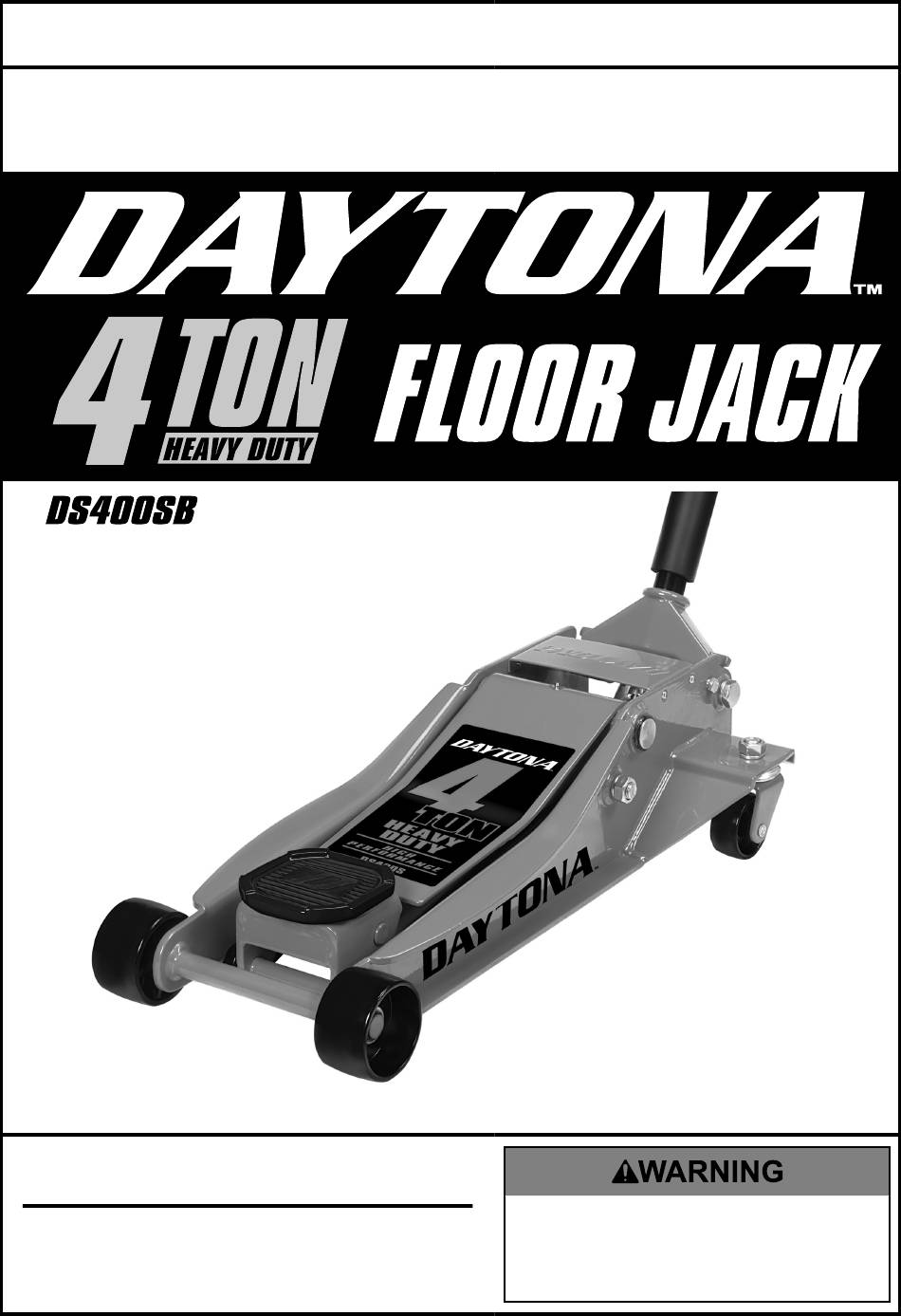

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1. Study, understand, and follow all instructions 13. Keep clear of load while lifting and lowering. before operating this device. 14. Lower load slowly. 2. Do not exceed rated capacity. 15. Apply parking brake and chock tires 3.
  • Page 3 WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Specifications

    Specifications Weight Capacity 4 Tons Weight Capacity (lb.) 8,000 Maximum Height (in.) 20.25 Minimum Height (in.) 4.25 Handle Length (in.) Hydraulic Oil non-detergent 22 weight Weight (lb.) Page 4 For technical questions, please call 1-888-866-5797. Item 64782...
  • Page 5 Overview Foam Bumper Handle Handle Release Handle (behind Socket Socket) Contoured Lift Arm Saddle Pad Saddle Item 64782 For technical questions, please call 1-888-866-5797. Page 5...

  • Page 6: Attaching The Handle

    Set Up Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Removing Shipping Block CAUTION! The Handle socket is held down by a plastic block. Wear ANSI-approved safety goggles before freeing Handle socket.

  • Page 7: Operation

    Operation Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Lifting Park vehicle on a flat, level, solid, surface safely away from oncoming traffic. Turn off the vehicle’s engine. Place the vehicle’s transmission in “PARK”...

  • Page 8: Maintenance And Servicing

    Maintenance and Servicing Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use. 1.

  • Page 9: Troubleshooting

    Troubleshooting TO PREVENT SERIOUS INJURY: Use caution when troubleshooting a malfunctioning jack. Stay well clear of the supported load. Completely resolve all problems before use. If the solutions presented in the Troubleshooting guide do not solve the problem, have a qualified technician inspect and repair the jack before use. After the jack is repaired: Test it carefully without a load by raising and lowering it fully, checking for proper operation, BEFORE RETURNING THE JACK TO OPERATION.

  • Page 10: Parts List

    Parts List and Diagram Parts List Part Description Qty. Part Description Qty. Upper Handle Screw Plate Foam Wheel Lower Handle Washer Screw Retainer Ring Handle socket Pump Retainer Ring Spring Roller Wheel Cover Retainer Ring Limiting Bar Grease Cup Lock Washer Lifting Frame Bolt Axle...

  • Page 11: Assembly Diagram

    Assembly Diagram Record Product’s Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 792363647823 when ordering parts. Item 64782 For technical questions, please call 1-888-866-5797.

  • Page 12: Limited 90-Day Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
