USER GUIDE
Book 1.
(User Modes).
Sinar Technology CP 7070 Moisture Analyser with
BLE Wireless Data Transmission.
Model CP 7070
DOC No: CP 7070
DATE 15-12-22
ISS 1
For use with V1.x software.
Sinar Technology
Unit 6 The Metro Centre, Toutley Road, Wokingham, Berkshire,
England RG41 1QW.
Tel +44 (0)208 328 0727 Fax +44 (0)344 745 1999
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sinar Technology CP 7070
Summary of Contents for Sinar Technology CP 7070
- Page 1 USER GUIDE Book 1. (User Modes). Sinar Technology CP 7070 Moisture Analyser with BLE Wireless Data Transmission. Model CP 7070 DOC No: CP 7070 DATE 15-12-22 ISS 1 For use with V1.x software. Sinar Technology Unit 6 The Metro Centre, Toutley Road, Wokingham, Berkshire, England RG41 1QW.
-
Page 2: Table Of Contents
Model CP 7070 Moisture Ananlyser. CONTENTS: Page Introduction CP 7070 Display and Keypad Layout User Mode - Display Description BLE Menu - Display Description H2O Bias Menu - Display Description Using your CP 7070 Moisture Analyser Selecting a Crop Calibration... -
Page 3: Introduction
7070 simultaneously measures and displays the free flow bulk density in grams per litre, kilograms per hectolitre and the sample temperature. The CP 7070 is a battery powered moisture analyser with only one operator mode making the instrument extremely quick and easy to use. -
Page 4: Cp 7070 Display And Keypad Layout
2.0 CP 7070 Display and Keypad Layout ▲ 0 Reference Down Test MODE CLEAR ENTER CP 7070 Front Panel layout. Keypad Functions. The “F” or function keys action the command shown in the display window above each function key. The “MODE” key is used to step through the user modes. -
Page 5: User Mode - Display Description
Code 0 reading is required for calibration purposes. Press F2 to select the required crop. Down/Up (F1 & F2). Used to step through the crop calibrations (curves) installed in the CP 7070. (F3) Turns the display back light on and off (battery power save feature). -
Page 6: Ble Menu - Display Description
4.0 BLE Menu - Display Description. BLE Menu Pair Exit BLE Menu screen. BLE Menu Denotes BLE Menu is selected. Off (F1) Turns BLE Off On (F2) Turns BLE On Pair (F3) Pairs the device (Optional) Exit (F4) Used to exist the BLE Menu and return to User Mode. Note. -
Page 7: H2O Bias Menu - Display Description
5.0 H2O Bias Menu - Display Description. H2O Bias Menu Bias Exit H2O Bias Menu screen. Bias Menu. Denotes Bias mode has been selected. Bias (F1). Used to alter the displayed moisture reading for a specific crop calibration. Exit. (F4). Used to save the entered data and exit to User Mode. -
Page 8: Using Your Cp 7070 Moisture Analyser
7070 returns to the previously selected calibration. Always check the correct crop is selected before carrying out a test. To extend battery life the CP 7070 will turn itself off if a key is not pressed within 3 minutes. 0 Reference... -
Page 9: Loading A Sample

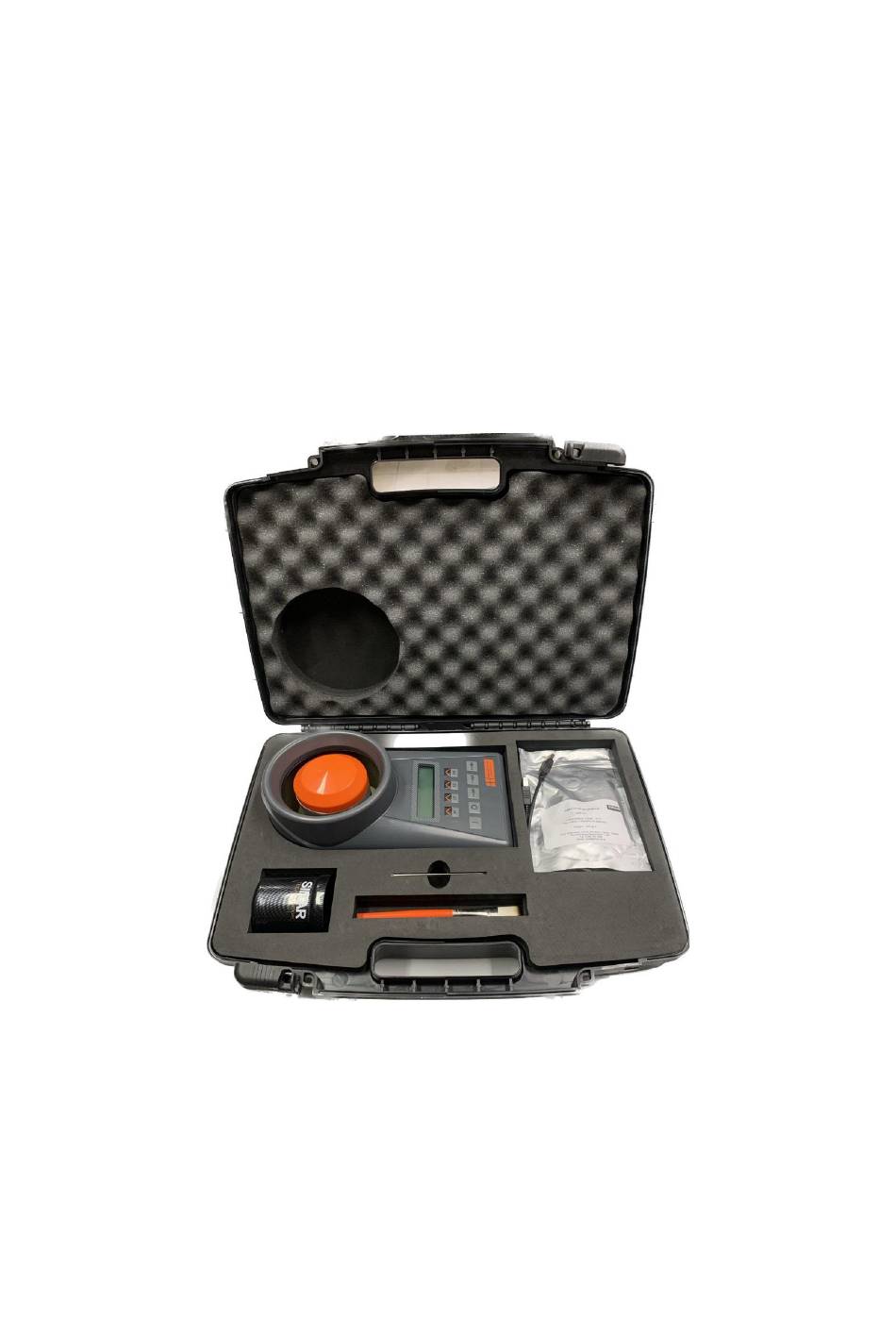

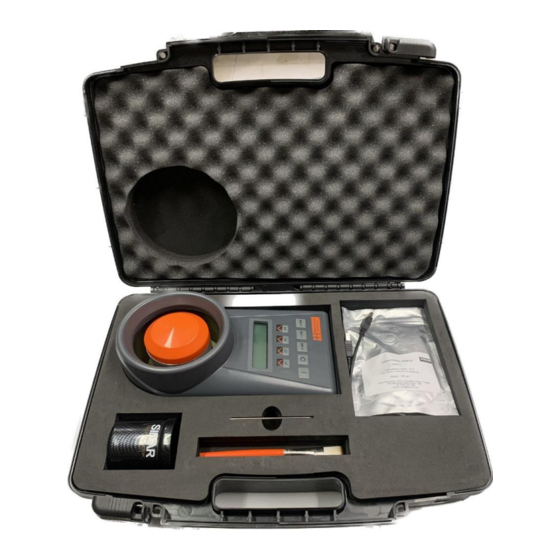

8.0 Loading the sample. The CP 7070 is supplied with – • 1off Beaker • 1off Strike Off Blade • 1off Cell Cleaning Brush • 1off Sample Tray • Calibration Sample We strongly recommend the use of all the above items to achieve the maximum accuracy from your machine. -
Page 10: User Mode - Taking A Measurement
9.0 Taking a measurement. (User Mode, F4). With the sample loaded press and release the Test (F4) key. 1 Green Coffee Down Test User Mode screen. The display will change showing the selected crop on the top line and Testing…. on the bottom. -
Page 11: Ble Menu - Outputting Data
The symbol in the top right hand corner which is now visible and flashing, indicates the unit is in pairing mode. Once the CP 7070 has paired with the Sinar MLog Application the symbol will stop flashing and become solid. - Page 12 Pair the Instrument with the App The example below shows the symbol sequence each time the instrument is powered On with BLE having been previously activated. Turn instrument - On. 0 Reference BLE module powers up. Symbol flashing (pairing mode). Down Test ...
-
Page 13: H20 Bias Menu - Adding A Bias
11.0 H2O Bias Menu. The H2O Bias function is used if the moisture reading needs to be adjusted in line with the reference method or another piece of equipment. The bias should only be used if the readings are too high or too low by a constant amount over a varying moisture range. -
Page 14: Protected Modes
12.0 Protected Modes. When in H2O Bias Menu by pressing the MODE key again the display will change to. Password Required for Higher Modes Followed by: Select value: ◄ ► The modes beyond this point are protected by a password. Please speak with your supervisor to gain access. -
Page 15: Appendix 1 - Batteries
APPENDIX 1 BATTERY REPLACEMENT Battery Low indicator Should the battery warning signal be displayed at start up, replace the batteries. * * * W A R N I N G ! * * * B a t t e r y L o w ! ! ! To replace the batteries: Remove the battery box cover from the underside of the instrument by simultaneously releasing the two catches (as shown below). -
Page 16: Appendix 2 - Technical Specification
BLE653 V5.1 2MBPS. TX wavelength 2.4 - 2.48 GHz BLE Range: 10 Meters line of sight. BLE Output Data: %H2O, Bulk Density, Temperature BLE Receiver: Sinar Technology App. See QR code. Operating Environment: 0 to 40°C Storage Environment: -10 to 70°C none condensing Instrument Dimensions: (H)11.5cm x (W)16cm x (D)28cm... -
Page 17: Appendix 3 - Error Codes
APPENDIX 3 ERROR CODE SUMMARY Errror Code Description Recommended Action Err.0 Sample weight too low Use larger sample (greater than 100g) Break in connection Err.1 between cell and the Contact your distributor processor PCB Capacitance reading is Check hardware. If necessary, scale down Err.2 too high (over 100) capacitance by changing byte 28.
