Sinar Technology SINAR 6070 Getting Started

5.0 Mode 1b, Bias menu.
The bias function is used if the moisture reading needs to
be adjusted in line with the reference method. The bias
should only be used if the readings are too high or too
low by a constant amount over a varying moisture range.
Please contact Sinar if in doubt.
The bias menu enables you to independently enter a bias
or offset to each selected crop calibration.
Bias Menu
Bias
F2 F3
By pressing Bias (F1) the display changes to:-
1 Seeds
Down Up
F1 F2 F3
The display shows that calibration number 1, Seeds has
been selected for adjustment. This calibration selection is
made in Mode 0. See Section 2, Selecting a calibration.
All bias values will be factory set to zero on shipment.
By pressing the F1 or F2 keys the required + or – bias
value will be displayed. A positive value will increase the
displayed moisture value, a negative value will reduce it.
Each press of the key increases or decreases the value by
0.1% moisture.
When the correct bias value is displayed, press the Exit
(F4) key to save and return to Mode 1b.
Your bias value for the selected crop has now been
stored and will be applied to all future readings.
Error Code Summary
Error Code Explanation
Sample weight too low
Err.0
Measurement cell not
Err.1
correctly mounted
Capacitance reading is too
Err.2
high (over 100)
1b
Capacitance reading is too
Err.3
high at low moisture
Exit
High moisture reading at
Err.4
low capacitance reading
F4
Capacitance reading is
Err.5
too low for calibration
curve (i.e. %MC would be
negative)
0.0%
Communication error in
Err.6
RS232
Exit
Battery low indicator
batt
F4
Unit 4/5 Camberley Business Centre,
Tel +44 (0)208 328 0727 Fax +44 (0)1276 29941
Recommended action
Use larger sample (greater
than 115g)
Remount the sample cell
firmly on to the interface
See separate hardware
check leaflet.
See separate hardware
check leaflet.
See separate hardware
check leaflet.
See separate hardware
check leaflet.
Check cable and start again
Replace the batteries
Sinar Technology
Bracebridge, Camberley, Surrey
England GU15 3DP
www.sinar.co.uk

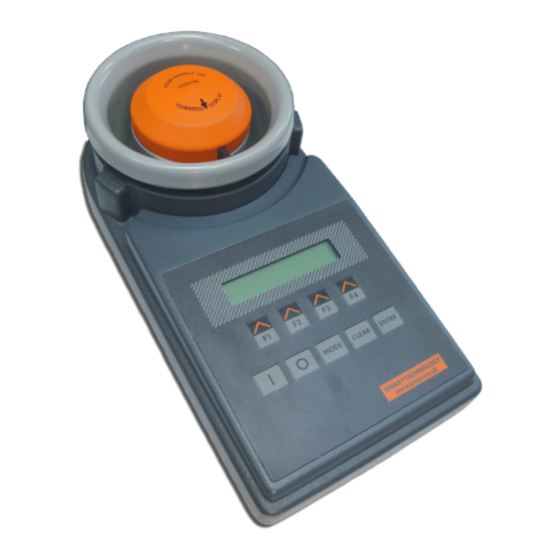

MODEL SINAR 6070

Getting started

To register your new instrument and
download the full manual please visit:
www.sinar.co.uk/service-centre
DOC 6070 Leaflet
DATE 01.03.16
ISS 3
For use with V7.3 – 7.9 Software.
Copyright © 2016 Sinar Technology
