USER GUIDE
Book 1.
(Modes 0 to 1b).

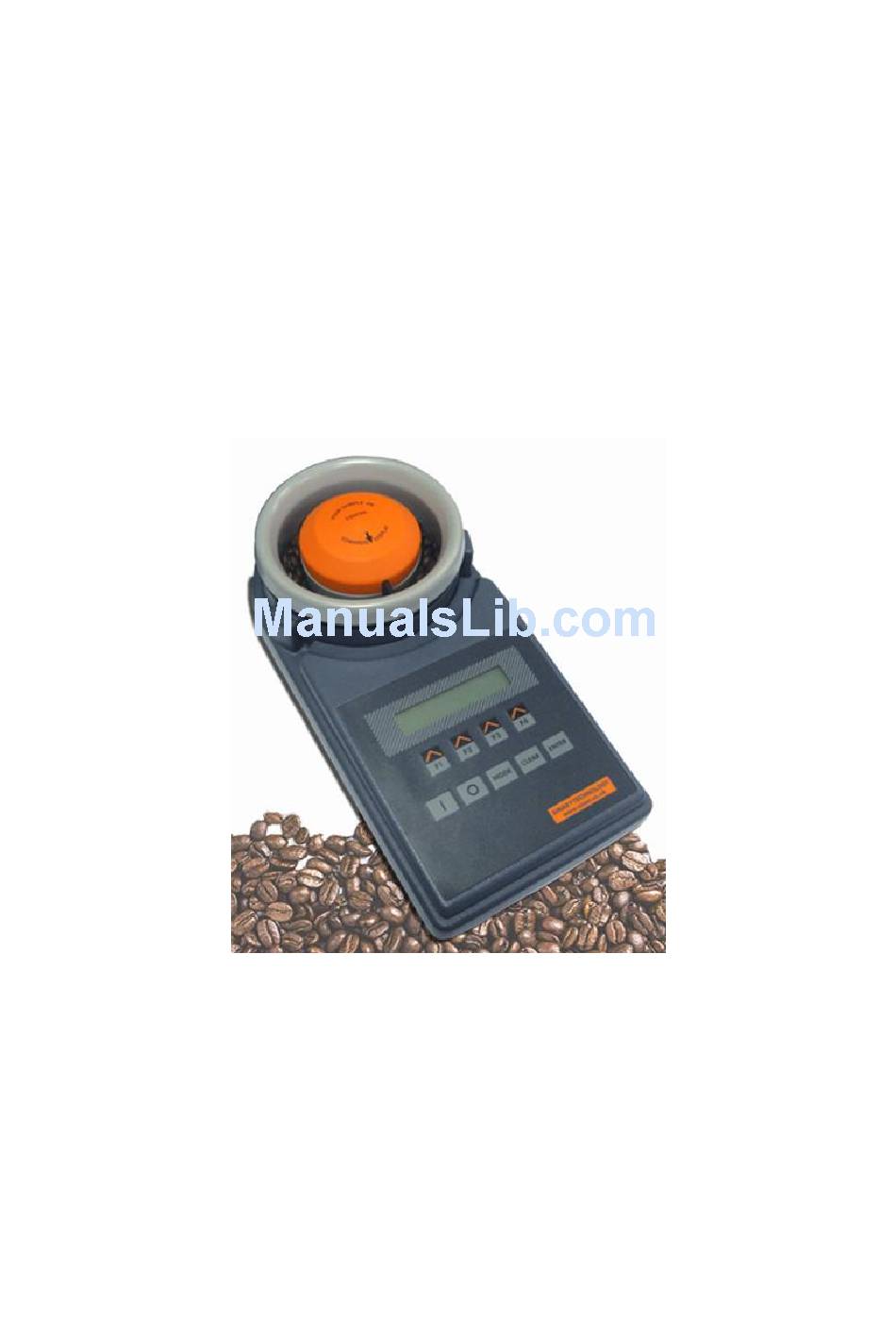

Sinar Technology BeanPro Moisture Analyser.
Model 6070-BeanPro.
DOC No: 6070-BeanPro
DATE 08-06-12
ISS 2
For use with V7.7 software.
Sinar Technology
Unit 4-5 Camberley Business Centre, Bracebridge, Camberley, Surrey,
England GU15 3DP.
Tel +44 (0)208 328 0727 Fax +44 (0)1276 29941

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6070-BeanPro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sinar Technology 6070-BeanPro

Summary of Contents for Sinar Technology 6070-BeanPro

  • Page 1 USER GUIDE Book 1. (Modes 0 to 1b). Sinar Technology BeanPro Moisture Analyser. Model 6070-BeanPro. DOC No: 6070-BeanPro DATE 08-06-12 ISS 2 For use with V7.7 software. Sinar Technology Unit 4-5 Camberley Business Centre, Bracebridge, Camberley, Surrey, England GU15 3DP.

  • Page 2: Table Of Contents

    Sinar Technology BeanPro Model 6070-BeanPro Moisture Ananlyser. CONTENTS: Page Introduction BeanPro display and keypad layout Mode 0 - Display description Mode 1 - Display description Mode 1b - Display description Using your Moisture Analyser Selecting a crop calibration Loading a sample Mode 0 - Taking a measurement 10.0...

  • Page 3: Introduction

    1.0 Introduction: Thank you for choosing the SINAR TECHNOLOGY BeanPro. The Sinar 6070 BeanPro Moisture Analyser houses the latest moisture measuring technology in a compact, portable package. It has been designed to provide fast moisture results using whole crop samples. In addition to % moisture content, the BeanPro simultaneously measures and displays sample density in grams per litre and sample temperature.

  • Page 4: Beanpro Display And Keypad Layout

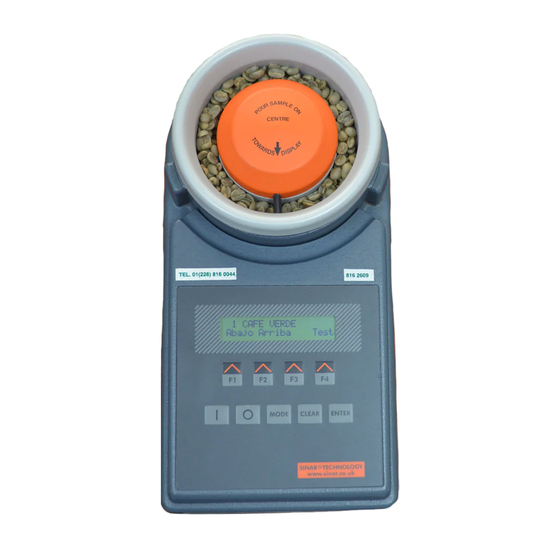

    2.0 6070 BeanPro Display Layout. 0 Reference Down MODE CLEAR ENTER BeanPro front panel layout. Key Pad Functions. The “F” or function keys action the command shown in the display window above each function key. The “MODE” key is used to step through the user modes, mode 0, 1 MODE and 1b.

  • Page 5: Mode 0, Display Description

    3.0 Mode 0, Display Description. 0 Reference Down Mode 0 screen. 0 Reference. Denotes that the 0 reference curve is currently selected. This curve is used when a capacitance, (code 0) reading is required for calibration purposes. Shows the number of the selected mode. Press the MODE key to step through the modes.

  • Page 6: Mode 1, Display Description

    4.0 Mode 1, Display Description. Printer Menu OnOff Baud Output Temp Mode 1 screen. Printer Menu Denotes: Printer Menu has been selected. Shows the number of the selected mode. Press the MODE key to step through the modes. OnOff (F1). Used to switch the printer option on or off.

  • Page 7: Mode 1B, Display Description

    5.0 Mode 1b, Display Description. Bias Menu Bias Exit Mode 1b screen. Bias Menu. Denotes Bias mode has been selected. Shows the number of the selected Mode. Press the MODE key to step through the modes. Bias (F1). Used to alter the displayed moisture reading for a specific crop calibration. Exit.

  • Page 8: Using Your Moisture Analyser

    Using your Bean-Pro Moisture Analyser. 6.0 System Power Up. Your first power up. Press the “I” key. The BeanPro powers up in mode 0 showing “0 Reference” in the display. Use the “Up” (F2) key to step through the crop calibrations. Ongoing power up’s The Bean-Pro remembers the last selected crop calibration.

  • Page 9: Loading A Sample

    8.0 Loading the sample. The BeanPro is supplied with –  1off Loading Hopper  1off Beaker  1off Strike off blade We strongly recommend the use of all of the above items to achieve the maximum accuracy from your machine. Method: Over fill the beaker with sample.

  • Page 10: Mode 0 - Taking A Measurement

    9.0 Taking a measurement. (Mode 0, F4). With the sample loaded press and release the Run (F4) key. 1 Green Coffee Bns Down Mode 0 screen. The display will change showing the selected crop on the top line and Testing…. on the bottom.

  • Page 11: Mode 1 - Setting Up A Printer

    10.0 Mode 1. Printer Menu. This mode is used to set up a printer. Printer Menu OnOff Baud Output Temp By pressing OnOff (F1) the display changes to: Printer Switched Exit By selecting either On (F1) or Off (F2) the printer output can be turned on or off. Once selected press Exit (F4) to save and exit the screen.
  • Page 12 By pressing Output (F3) from the printer menu the display changes to: Printer Output Batch By pressing Batch (F2) from the Printer Output menu the display changes to: Select number 0001 ◄ ► F1 and F2 move the flashing curser to the left or right. – (F3) and +(F4) index the number above the flashing curser up or down.

  • Page 13: Mode 1B - Adding A Bias

    11.0 Mode 1b, Bias menu. The bias function is used if the moisture reading needs to be adjusted in line with the reference method or another piece of equipment. The bias should only be used if the readings are too high or too low by a constant amount over a varying moisture range.

  • Page 14: Protected Modes

    12.0 Protected Modes. When in Mode 1b, by pressing the MODE key again the display changes to. Password Required for Higher Modes Temp Followed by: Enter Password ◄ ► The modes beyond this point are protected by a password. Please speak with your supervisor to gain access. If the wrong password is entered the display changes to: Sorry, wrong ! and then returns to the Mode 0 screen.

  • Page 15: Appendix 1 - Batteries

    APPENDIX 1 REPLACEMENT OF BATTERIES Battery Low indicator Should the batteries begin to fail, a warning signal will appear when the instrument is switched on. * * * W A R N I N G ! * * * B a t t e r y L o w ! ! ! To replace the batteries: remove the sample cell from the instrument.

  • Page 16: Appendix 2 - Technical Specification

    APPENDIX 2 Technical Specification Dimensions: 325mm x 164mm x 120mm Weight: 2.1kg Construction: HD Polyurethane Foam Injection Moulding Operating Environment: 5°C to 40° C ; 41° to 104° F Storage Temperature: -20° C to +55° C ; -4° F to 131° F Humidity: Up to 95% non condensing Display:...

  • Page 17: Appendix 3 - Error Codes

    APPENDIX 3 ERROR CODE SUMMARY Error Code Explanation Recommended Action Err.0 Sample weight too low Use large sample (greater than 115g) Err.1 Sample cell not correctly Remount the sample cell firmly mounted on to the interface Err.2 Capacitance reading is Check hardware.
