Summary of Contents for Sinar Technology 6095 AgriPro

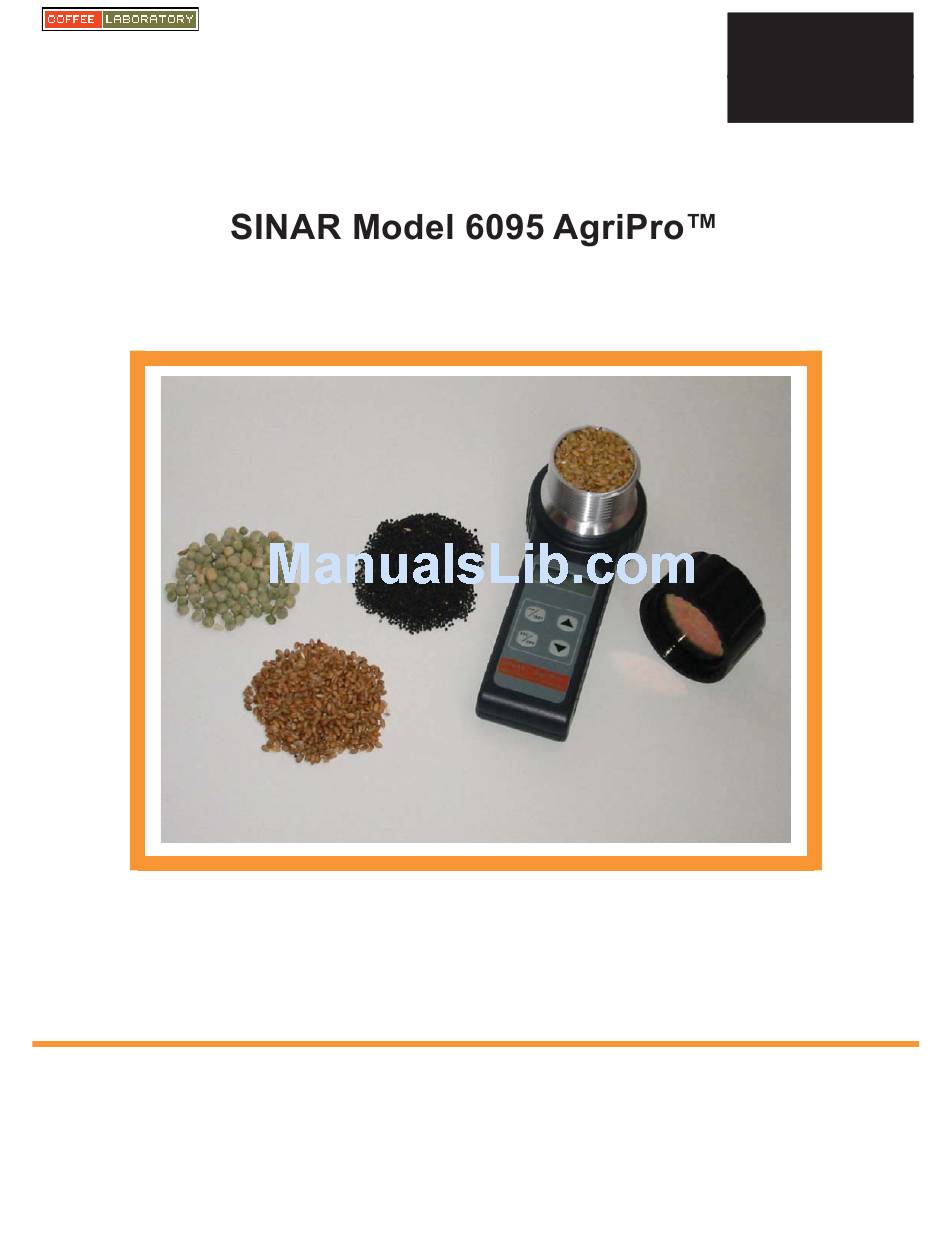

- Page 1 SINAR TECHNOLOGY Operator Manual www.coffeelabequipment.com TEL (804) 435-5522 TOLL FREE (866) 244-1578 Sinar Technology, Unit 2, Old Station Business Park, Compton, Berks, RG20 6NE, ENGLAND Telephone : +44 (0) 1635 579940 Fax: +44 (0)1635 579941 email: office@sinar.co.uk Website: www.sinar.co.uk...
- Page 2 Technical Specifications Dimensions 21 x 7.5 x 7.5 cm Weight 1.5kg (including carrying case) Storage Temperature -20 deg C to + 55 deg C; Humidity up to 98% non condensing Construction Non shock ABS Plastic Measurement cell in polished Aluminium Supplied with shock proof carrying case Display Direct digital display with accuracy to one decimal point...
- Page 3 Operating Instructions: Measuring %mc Inspect the cell to ensure it is clean and empty Turn on the analyzer by pressing ON/TEST button. The >> MEASURE << menu will be automatically displayed. Accept mean by pressing the ON/TEST button. By using the arrows select the crop for measurement.
- Page 4 Figure 1a. Fill the measuring cell evenly to the top, ensuring the crop is level with the top of the cell. Screw on the cap and tighten until the stainless steel pressure indicator is flush with the top of the cap. Figure 1 c Figure 1 b Figure 1 d...
- Page 5 How to clear the calculated average values (continued) display followed by automatic return to >>MEASURE<<. How to turn the unit off. Press the OFF/ESC button and hold down until the analyzer is turned off. Note: The analyzer will automatically turn off 45 seconds after the last operation to conserve battery power.
- Page 6 Cleaned thoroughly on all surfaces with a clean damp cloth and the battery removed before storage at the end of the season. If the above instructions and guidelines are followed you can expect a long and excellent performance from your Sinar Model 6095 AgriPro Moisture Analyzer. - 5 -...
