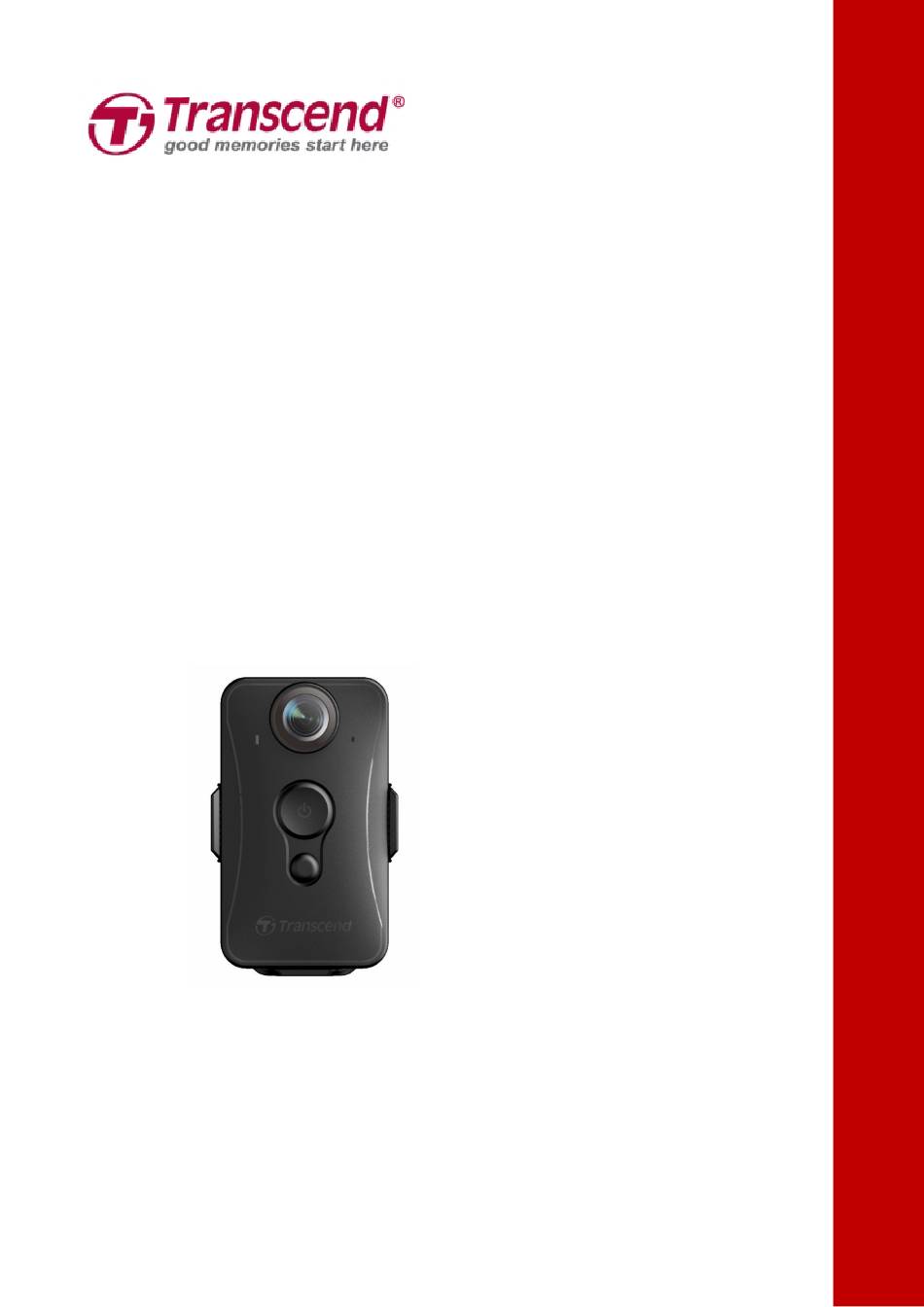

- Page 1 User’s Manual Body Camera DrivePro™ Body 20 (Version 1.0)
-
Page 2: Table Of Contents
Table of Contents 1. Introduction............................ 2 2. System Requirements........................3 3. Getting Started..........................4 3-1 Function Buttons.........................4 3-2 Charging the DrivePro™ Body 20..................5 3-3 LED Indicator Table......................5 4. Recording Videos..........................6 5. Taking Photos..........................7 6. Using the DrivePro™ Body App....................7 6-1 Downloading and Installing the App................ -
Page 3: Introduction
The handy snapshot function allows you to take photos while recording. Transcend’s DrivePro™ Body 20 has a built-in Li-Polymer battery that can record up to 3.5 hours and only takes approximately 1.5 hours to be fully recharged. -
Page 4: System Requirements
2. System Requirements System requirements for connecting the DrivePro™ Body 20 to a computer and for using the DrivePro™ Body Toolbox: A desktop or a laptop with a working USB port Windows ® Windows ® Windows ® ... -
Page 5: Getting Started
3. Getting Started 3-1 Function Buttons Warning Indicator Lanyard Loop Lens Built-in Microphone Recording / Wi-Fi Indicator Buzzer Power Button Snapshot / Wi-Fi Button Connection Socket Reset Button Velcro Holder 360° Rotatable Clip... -
Page 6: Charging The Drivepro™ Body 20
Connect the bundled 3.5mm to USB cable to a wall outlet with the included adapter Connect the bundled 3.5mm to USB cable to a computer Connect the DrivePro™ Body 20 to Transcend’s Docking Station (Optional) WARNING: 1. The DrivePro™ Body 20 only supports FAT32 file format. -
Page 7: Recording Videos
Front View Status Definition Flashing Recording Flashing Recording with Wi-Fi on Solid Browse / Settings 4. Recording Videos To start recording, long press the button; you will hear 1 beep, and the red LED light of the recording indicator will flash during recording. To activate Wi-Fi, long press the button while recording, and the LED light will flash from red to blue. -
Page 8: Taking Photos
5. Taking Photos To take photos while recording, quickly press the button, you will hear 1 beep. 6. Using the DrivePro™ Body App Developed for iOS and Android devices, the free DrivePro™ Body App allows you to wirelessly adjust the settings of the camera and to live-stream video on your smart device. 6-1 Downloading and Installing the App 1. - Page 9 2. Tap “Connect”. Please wait for a few seconds for the network to appear. 3. Select the “DrivePro™Body20” Wi-Fi link (default password is 12345678). 4. Tap the DrivePro™ Body icon on the home screen of your device to use the App. Note: The camera stops recording when you tap using the App, the front LED turns solid blue.
-
Page 10: Playing Videos And Browsing Photos
6-3 Playing Videos and Browsing Photos To play videos and browse photos, tap To play the videos recorded, tap VIDEO. - Page 11 Select the desired file to play the video. To browse the photos, tap PHOTO.
- Page 12 Select the desired file to view the photo.
-
Page 13: Android
Android To play videos and browse photos, tap Select the desired file to play the video. -
Page 14: Settings
To browse photos, tap Note: The camera stops recording when you tap using the App, the front LED turns solid blue. The camera will resume recording when you quit. 6-4 Settings to enter the Settings menu. In the Settings menu, you can adjust the settings of video, device, Wi-Fi and System. -
Page 15: Using The Drivepro™ Body Toolbox Software
Video Label: Tap to edit the video label to be displayed (default label is Transcend DPB20) Microphone: Turn on/off the microphone during video recording. Available options: Disable / Enable Date Format: Set the date format. Available options: YY/MM/DD or MM/DD/YY or DD/MM/YY 24-Hour Time: Select the 24-hour or 12-hour time format. -
Page 16: Status
To use for the first time, please change your password with the default password “12345678”. Download the installation files from: http://www.transcend-info.com/downloads Install DrivePro™ Body Toolbox software on your desktop or laptop. 7-1 Status On the Status page, the basic information of the DrivePro™ Body is displayed, including device serial number, firmware version, user label and model name. -
Page 17: Settings
7-2 Settings On the Settings page, you can adjust the Device settings, Video settings or change password (for DrivePro™ Body 20P only). Device Settings Microphone: Turn on/off the microphone during video recording. Available options: Disable / Enable Light Frequency: Select the appropriate frequency to avoid flashing A/C light. Available options: 50Hz / 60Hz Time Format: Select the 24-hour or 12-hour AM/PM time format. -
Page 18: Tools
Change Password (For DrivePro™ Body 20P only) Change your password with the default password 12345678. 7-3 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro™ Body to its default status. Note: Formatting the disk and resetting the device will permanently remove all data. 7-4 Preference Click on on top of the page to adjust the settings of the DrivePro™... -
Page 19: Docking Station (Optional)
2 additional docking stations in series, allowing up to 18 DrivePro™ Body 20 or DrivePro™ Body 20P to charge and upload at the same time. Paired with Transcend’s DrivePro™ Body Toolbox, the docking station is also equipped with an auto upload function, capable of automatically upload videos and photos while charging. -
Page 20: Ipx4 Water Resistant
When there are fingerprints on the lens surface When the lens is exposed to salty air such as at the seaside Store in a well-ventilated location subject to little dirt or dust To prevent mold, periodically clean the lens as described above Cleaning Clean the DrivePro™... - Page 21 Do not use the DrivePro™ Body 20 in high temperature and high humidity environments (i.e. saunas, steam and shower rooms). Do not use the DrivePro™ Body 20 for a long time in heavy rains to avoid the moisture from penetrating.
-
Page 22: Package Contents
11. Package Contents DrivePro™ Body 20 Adapter 3.5mm to USB cable Velcro... - Page 23 Clip & Velcro holders Note: When removing the DrivePro™ Body from the holder, please pull from left and right side. When reassembling, make sure the DrivePro™ Body is securely attached to the holder. Quick Start Guide Warranty Card...
-
Page 24: Specifications
12. Specifications Connect Interface USB 2.0 Storage Capacity Internal MLC-based storage 88.4 mm (L) × 52.2 mm (W)× 19.4 mm (H) Dimensions 3.48” (L) x 2.06” (W) x 0.76” (H) 88g (123g with holder attached) Weight 3.1 oz (4.34 oz with holder attached) Battery Li-Polymer 1530mAh Input: AC100V-240V, 50-60Hz, 0.4A Max... -
Page 25: Frequently Asked Questions
DrivePro™ for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website (http://www.transcend-info.com/) for more FAQs and Technical Support services (http://www.transcend-info.com/Support/contact_form). -
Page 26: Recycling And Environmental Protection
14. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste. -
Page 27: Two-Year Limited Warranty
Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products. -
Page 28: Gnu General Public License (Gpl) Disclosure
17. End-User License Agreement (EULA) Software license terms and conditions 1. Generally. Transcend Information, Inc. ("Transcend") is willing to grant the following license to install or use the software and/or firmware (“Licensed Software”) pursuant to this End-User License Agreement (“Agreement”), whether provided separately or associated with a Transcend product (“Product”), to the original purchaser of the Product upon or with which the Licensed Software was installed or associated as of the time of purchase ("Customer") only if Customer accepts all of the terms and conditions of this Agreement. - Page 29 Licensed Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
- Page 30 (d) A waiver by either party of any term or condition of this Agreement or any breach thereof, in any one instance, will not waive such term or condition or any subsequent breach thereof. (e) Transcend may assign its rights under this Agreement without condition. (f) This Agreement will be binding upon and will inure...
-
Page 31: Federal Communications Commission (Fcc) Statement
18. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
