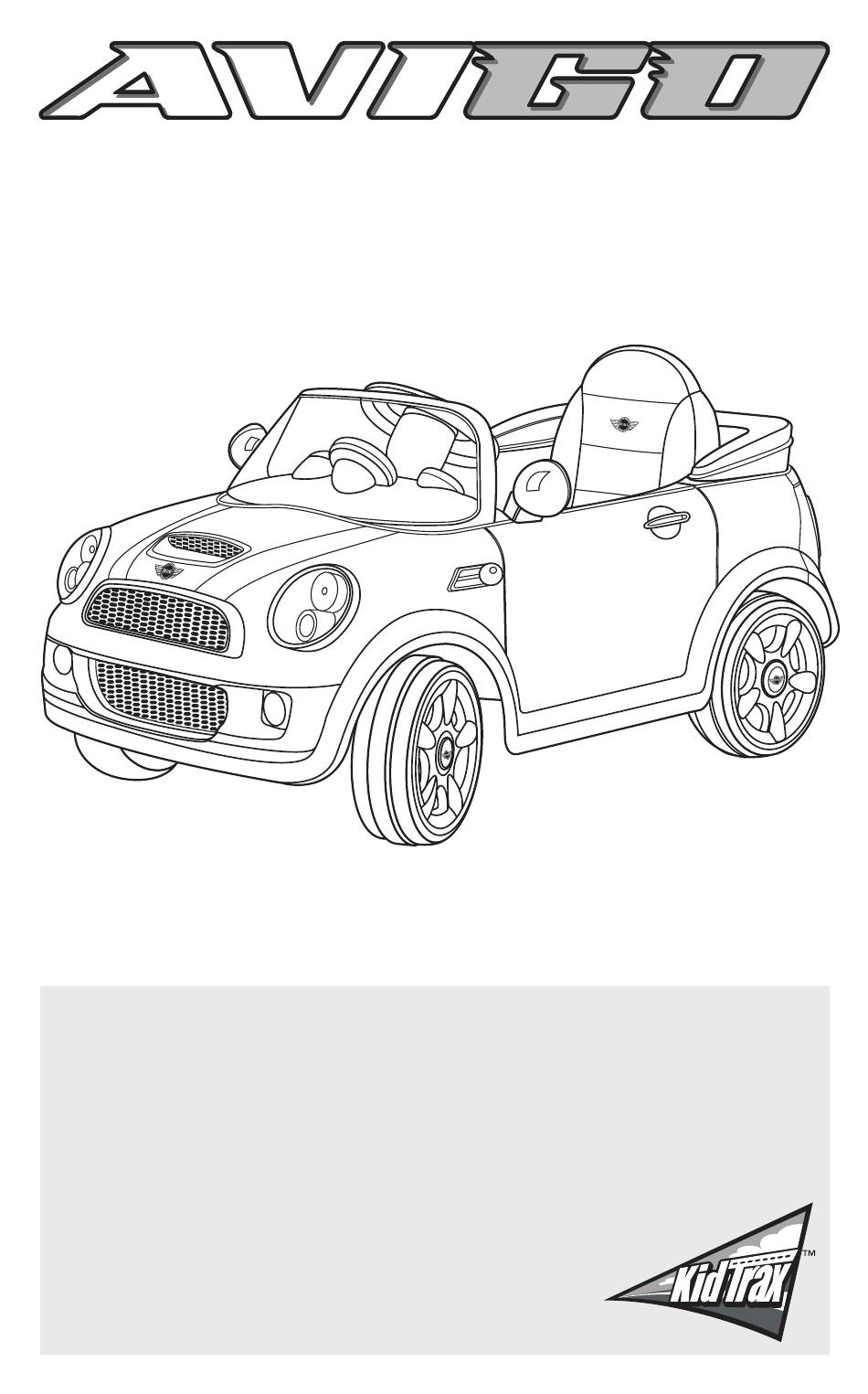

Mini Cooper S
Owner's Manual
Model Number: 5F5F3F8
Do not return to store. Call toll free (877) 741-6154 for assistance and
replacement parts.
The Owner's manual contains assembly, use and maintenance
instructions. The Avigo Cooper must be assembled by an adult who
has read and understands the instructions in this manual. Keep the
packaging away from children and dispose all packaging before use.
Styles and Colors may vary
Made in China
Keep instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avigo 5F5F3F8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KID Trax Avigo 5F5F3F8

Summary of Contents for KID Trax Avigo 5F5F3F8

  • Page 1 Mini Cooper S Owner’s Manual Model Number: 5F5F3F8 Do not return to store. Call toll free (877) 741-6154 for assistance and replacement parts. The Owner’s manual contains assembly, use and maintenance instructions. The Avigo Cooper must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 The MINI COOPER S will bring your child fun and riding enjoyment for years to come. Please call us at Kid Trax Toys Consumer Relations at 877-741-6154 with comments or questions. Customer Service hours are 8AM - 5PM Monday thru Friday CST.

  • Page 3: Table Of Contents

    Contents Safety........1 Parts ........2 Assembly .

  • Page 4: Safety

    Safety WARNING! The following safety hazards may result in serious injury or death to the user of the MINI Copper S: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly.

  • Page 5: Parts

    Parts windshield seat soft top battery Please note: Battery is already installed in sealed rear compartment. mirrors (L & R) speedometer steering wheel body charger front wheel x2 rear wheel x2 wheel cover x4 hub cap x4...
  • Page 6 WARNING! • Contact or exposure to battery leakage (lead acid) may cause serious injury. If contact or exposure occurs immediately call your physician. If the chemical is on the skin or in the eyes, flush with cool water for 15 minutes. If the chemical was swallowed, immediately give the person water or milk.

  • Page 7: Assembly

    Charge Battery Before Assembly ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY. NOTE: It is not necessary to remove the battery from the vehicle for charging. However, if the adapter cord will not safely reach a 120-volt wall outlet, the battery can be removed for charging. Connect Charger to Battery 1.

  • Page 8: Install The Front Wheels

    Install the Front Wheels 1. Slide large washer onto axle as shown. 2. Locate a wheel marked front. Slide the wheel onto the axle with the word front facing in, towards the vehicle. 3. Align the five posts on the back of the wheel cover with the holes in the wheel and slide the wheel cover into the wheel.

  • Page 9: Install The Rear Wheels

    Install the Rear Wheels 1. Locate a wheel (marked “rear” with gear shaped protrusion). 2. Slide the wheel onto the axle with protrusion facing toward the vehicle. 3. Fit the gear shape protrusion into the gear box. 4. Align the five locating pins on the inside of the wheel cover into the wheel holes, and push the wheel cover into place.

  • Page 10: Attaching The Steering Wheel

    Attaching the Steering Wheel 1. Remove the battery compartment cover and insert (2) AA batteries into the top of the steering wheel. Place and screw the cover back on. 2. Place the steering wheel onto the steering column and line up the screw holes.

  • Page 11: Assemble The Speedometer And Windshield

    Assemble the Speedometer Align the speedometer with the slot of the dashboard. Push it slightly until you hear the “click” to complete the assembly. Speedometer Assemble the Windshield Align the windshield with the two side slots between the dashboard and the body and push it at the same time. NOTE: the two sides of the windshield must be inserted evenly.

  • Page 12: Assemble Soft Roof And Mirror

    Assemble Soft Top Align the clip of the soft top with the slot of the rear body, push it slightly until you hear a “click” to complete the assembly. soft top Assemble the Mirror Insert the clip of the mirror into the slot of the body, push it into the slot until you hear a “click”...

  • Page 13: Using The Controls

    Using the Controls foot pedal forward/reverse shifter power switch Turn the switch to “I”, set the shifter to forward, the car will go forward and front light is working; release pedal switch, the car stop and front light turn off. Turn to the “reverse”, press on pedal, the car will go reverse, release it and the car stop.

  • Page 14: Maintenance

    Water will damage the motor, electrical system and battery. • Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call Kid Trax Toys Consumer Relations at 877-741-6154 for an authorized service center.
  • Page 15 The following safety hazards may result in serious injury or death to the user of the MINI Copper S: • Use of a battery or charger other than the supplied Kid Trax Toys 6V rechargeable battery and charger may cause a fire or explosion.
  • Page 16 • Check the battery and charger (supply chord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Only replace with a Kid Trax Toys 6V rechargeable battery and charger. The battery should be charged after each use, or if not used regularly, once a month at a minimum.
  • Page 17 It is illegal in most areas to incinerate lead acid batteries or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler, such as a Kid Trax Toys authorized service center or your local automotive battery retailer.
  • Page 18 10. Replace the seat. Battery Fuse The Kid Trax Toys features a thermal fuse with a reset fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 5 Minutes and then turned ON again.

  • Page 19: Troubleshooting Guide

    The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service.
  • Page 20 Problem Possible Cause Remedy Vehicle runs Vehicle is overloaded Reduce weight on vehicle sluggishly or (see User Requirements beeping occurs and Safety Warnings) Vehicle is being used in Operate the vehicle level harsh conditions ground and firm surfaces (see User Requirements and Safety Warnings) Vehicle needs a Poor contact of wires or...

  • Page 21: Services Repairs And Parts

    Services, Repairs and Parts Do not return this product to the place of purchase. If your MINI Cooper S needs service, repairs or replacement parts, call: Kid Trax Toys Consumer Relations Hours: 8:00am – 5:00pm (CST) Monday - Friday Phone: 877-741-6154 Email: customerservice@kidtraxtoys.com...

  • Page 22: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

  • Page 23: Warranty

    Under no circumstances does this limited warranty include the cost of shipment or transportation to or from an authorized Kid Trax repair center or Kid Trax retailer. Limitation of Damages: The warranty and remedies as set forth are exclusive and in lieu of all others, oral or written, expressed or implied.

  • Page 24: Limitation Of Damages

    Limitation of warranties and other warranty terms: Any implied warranties, including implied warranties of the merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations as the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
