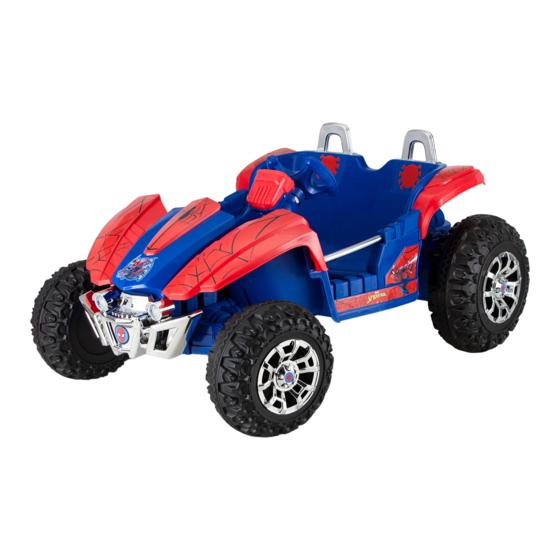

12V DUNE BUGGY
OWNER'S MANUAL
KT1311, KT1312, KT1335, KT1415
Age: 3 - 7 yrs
Weight: Maximum 88 lbs (40 kg)
Maximum Speed: 4 MPH
Battery: 12V
t
WARNING!
This manual contains important safety
and use information. Keep this manual for
future reference.
• An adult must read this entire manual
• Adult supervision is required at
all times
Advertisement
Table of Contents
Related Manuals for KID Trax KT1311
Summary of Contents for KID Trax KT1311
- Page 1 12V DUNE BUGGY OWNER’S MANUAL KT1311, KT1312, KT1335, KT1415 Age: 3 - 7 yrs Weight: Maximum 88 lbs (40 kg) Maximum Speed: 4 MPH Battery: 12V WARNING! This manual contains important safety and use information. Keep this manual for future reference.
- Page 2 Safety WARNING! FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner’s manual contains assembly, use and maintenance instructions. Child Safety Warnings • Riding a motorized ride-on toy toy can be a dangerous activity, even under the best of circumstances.
- Page 3 WARNING! Safe Riding Warnings • Never use the ride-on toy in an unsafe manner. Examples include but are not limited to: Before using the ride-on toy the child should understand the controls and safety issues. They must also demonstrate the •...
- Page 4 WARNING! WARNING! Battery and Charging Warnings Safe Riding Warnings (continued) The following safety hazards may result in serious injury or • Do not ride in wet conditions such as rain and snow. Doing so death to the user of the ride-on: may result in unexpected action such as tip over and skidding, as well as damage to the electrical system and battery.
- Page 5 WARNING! Battery and Charging Warnings (continued) Electric Shock / Fire Warnings Flammable and Explosive Materials Warnings • Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and keep the • Use of a battery or charger other than the supplied rechargeable battery dry.
- Page 6 WARNING! CAUTION! Product Warning Re-Charge Interval and Time • This product contains or emits chemicals known to the state of Important! California to cause cancer or birth defects or other reproductive • Damage to the battery may occur if it is allowed to drain harm.
- Page 7 PRE-RIDE SAFETY CHECKLIST Ride-on (To be performed by a supervising adult) For all electrical components, make sure: Before every ride, it is important to carry out the following • The battery is fully charged safety checks. Do not ride a battery powered ride-on toy that is •...
- Page 8 Parts ❶ ❸ ❹ ❽ ❾ ❻ ❼ ❺ ❷ ⓫ ❿ ⓰ ⓬ ⓭ ⓮ ⓯...
-
Page 9: Parts List
Parts List Hardware (actual size) Part name Quantity ❶ Headrests ❷ Steering Wheel ❸ Fender ❹ Fender Cap ❺ Hood ❻ Rear Wheel ❼ Rear Wheel insert ❽ Rear Wheel Rim Tools Required ❾ Wheel Snapcap ❿ Front Wheel Rim ⓫... - Page 10 Assembly Fender Assembly ❶ ❶ ❷ ❷...
- Page 11 ❹ ❹ ❸ ❸ TIP! Reuse the screws removed from the Dune Buggy (step 1) to reattach the fender caps (step 4).
- Page 12 Connecting the Battery to the Motor ❶ ❸ ❷ TIP! Reuse the screws removed from the Dune Buggy (step 1) to reattach the battery cover (step 3).
-
Page 13: Steering Rod Assembly
Steering Rod Assembly ❸ ❷ ❶... - Page 14 Front Wheel Assembly ❸ ❸ ❺ ❺ ❽ ❼ ❻ ❹ ❷ ❶ ❶❷ ❹ ❻ ❼❽ Note • Place the insert (step 2 & 4) into the wheel before sliding the wheel onto the axle. • Ensure sure the tab on wheel rim (step 5) aligns with the slot in the wheel.
-
Page 15: Rear Axle Assembly
Rear Axle Assembly ❶... -
Page 16: Rear Wheel Assembly
Rear Wheel Assembly ❶ ❶ ❸ ❸ ❻ ❺ ❹ ❷ ❷ ❹ ❺❻ TIP! When you tighten the nuts (step 5), if you attempt to tighten one nut at a time the axle will spin preventing the nut from properly tightening. -
Page 17: Steering Wheel Assembly
Steering Wheel Assembly ❷ ❸ ❶ ❹ Note Make sure the stoppers located on both sides of the steering rod are in the horizontal position, so that they align with the slots in the steering wheel. - Page 18 Front Bumper Assembly Front Hood Assembly ❶ ❷ ❷...
-
Page 19: Headrest Assembly
Headrest Assembly ❶ ❶ ❷ ❷... -
Page 20: Charging The Battery
Charging the Battery WARNING! • A battery contains hazardous material that may cause serious • A damaged supply cord, connector, or charger could cause injury or death if handled, connected, or charged improperly. burns to the skin, an electrical fire, serious injury, death, or Only an adult who has read and understands the warnings property damage. - Page 21 ❶ ❸ ❹ ❷ TIP! Charge the battery Do not charge the for 18 hours battery for more The product will not turn on while plugged into the charger. before first use than 24 hours Remove from charger prior to turning on.
-
Page 22: Controls And Functions
Controls & Functions On/Off switch High Speed, Low Speed, Reverse switch Lift foot off pedal to stop Depress pedal to accelerate Storage drawer Note Maximum Speed: 4 MPH Minimum Speed: 2 MPH... -
Page 23: Maintenance
Maintenance Battery Replacement and Disposal The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery. Important! Recycle the dead battery responsibly. - Page 24 ❸ ❹...
- Page 25 The ride-on toy should be checked for damage, missing or badly ❺ worn parts before each use. • Check the tightness of the fasteners before each use. • Check the tightness of the wheels before each use. • Ensure the battery is securely in place before each use. ❻...
-
Page 26: Fcc Statement
Service FCC Statement Do not return this product to the place of purchase. If your ride-on toy needs service, repairs or replacement parts, call: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority Pacific Cycle Consumer Relations to operate the equipment. - Page 27 1-800-858-2800, 24 hours a day; write limited to the duration and terms of the express written warranty. to Kid Trax Consumer Relations Department, Kid Trax Toys, This warranty gives you specific legal rights, and you may have P.O.
- Page 28 © 2017 Pacific Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Styles and colors may vary. Made in China...
