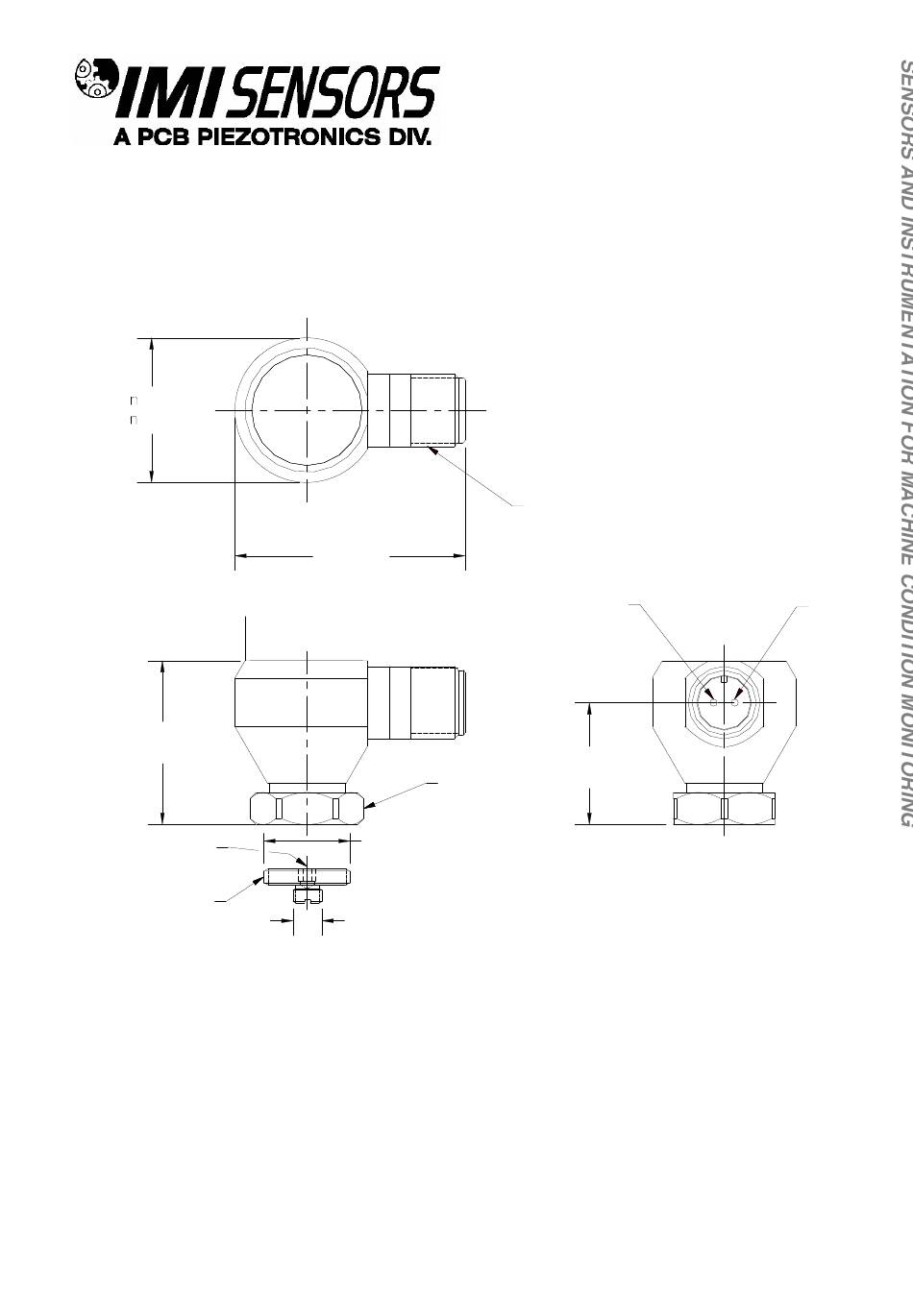

Dimension Drawing

1.24
[ 31.5]
1.41
[35.8]
1/8" HEX ALLEN
KEY REQUIRED
MOUNTING STUD
MODEL 080A162
(SUPPLIED)
1.98[45.7]
7/8 (22) HEX
3/4-16 UNF-2A
1/4-28 UNF-2A
Inch (mm)
ELECTRICAL CONNECTOR
5/8-24 UNEF-2A
2 - PIN (MIL-C-5015)
PIN A:
POSITIVE
4-20 mA
1.05
[26.7]
PIN B:
NEGATIVE
4-20 mA
