PCB Piezotronics IMI SENSORS 642A10/034BZ Installation And Operating Manual page 18

PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
1.41 [35.8]
1
MOUNTING STUD
MODEL 080A162
A
(SUPPLIED)
1
FOR METRIC ACCELEROMETER (M642A1X, M643A1X, M647A1X, M648A1X), MOUNTING STUD
MODEL M080A163A REPLACES 080A162, 3mm HEX ALLEN KEY REQUIRED.
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.03
XXX ±.010

ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
2

1.24 [31.5]
4.5 [114] (TO TYPICAL BENDING RADIUS)
.88 [22.3] HEX
.125 [3.12] HEX ALLEN
KEY REQUIRED
3/4-16 UNF - 2A
1/4-28 UNF - 2A
(METRIC VERSION
M6 X 1.0-6g)
DIMENSIONS IN MILLIMETERS
JDM
[ IN BRACKETS ]
TITLE
DECIMALS X ± 0.8
XX ± 0.25

ANGLES 2 DEGREES
4-20 VIBRATION SENSING TRANSMITTER
FILLETS AND RADII
0.07 - 0.13
2
REV
B
BLUE:
NEGATIVE
4-20mA
RED:
POSITIVE
4-20mA
DRAWN CHECKED
10/6/14 ECB 10/6/14

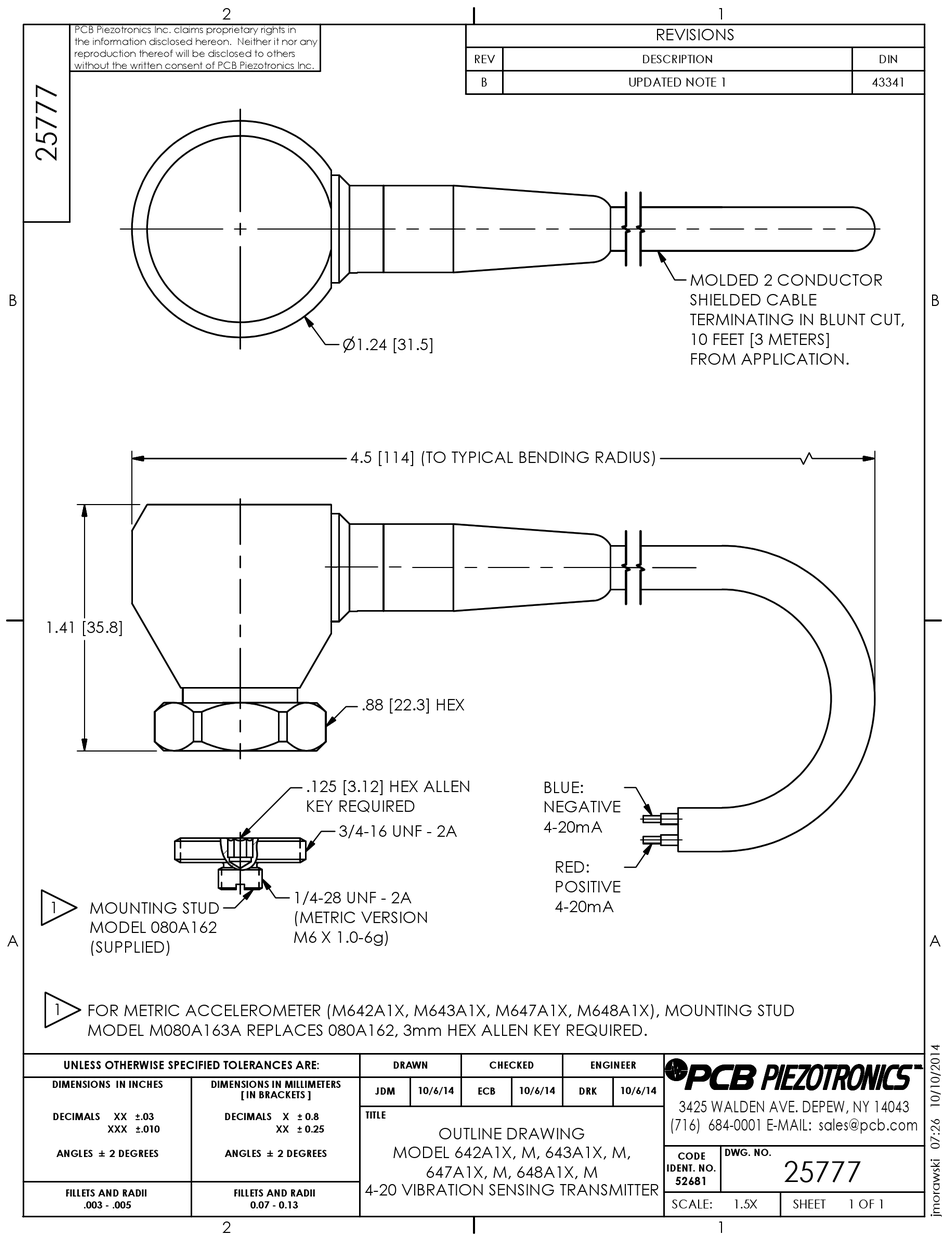

OUTLINE DRAWING
MODEL 642A1X, M, 643A1X, M,
647A1X, M, 648A1X, M
1
REVISIONS
DESCRIPTION
UPDATED NOTE 1
MOLDED 2 CONDUCTOR
SHIELDED CABLE
TERMINATING IN BLUNT CUT,
10 FEET [3 METERS]
FROM APPLICATION.
ENGINEER
DRK 10/6/14
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: 1.5X
1
DIN
43341
B
A
25777
SHEET 1 OF 1
