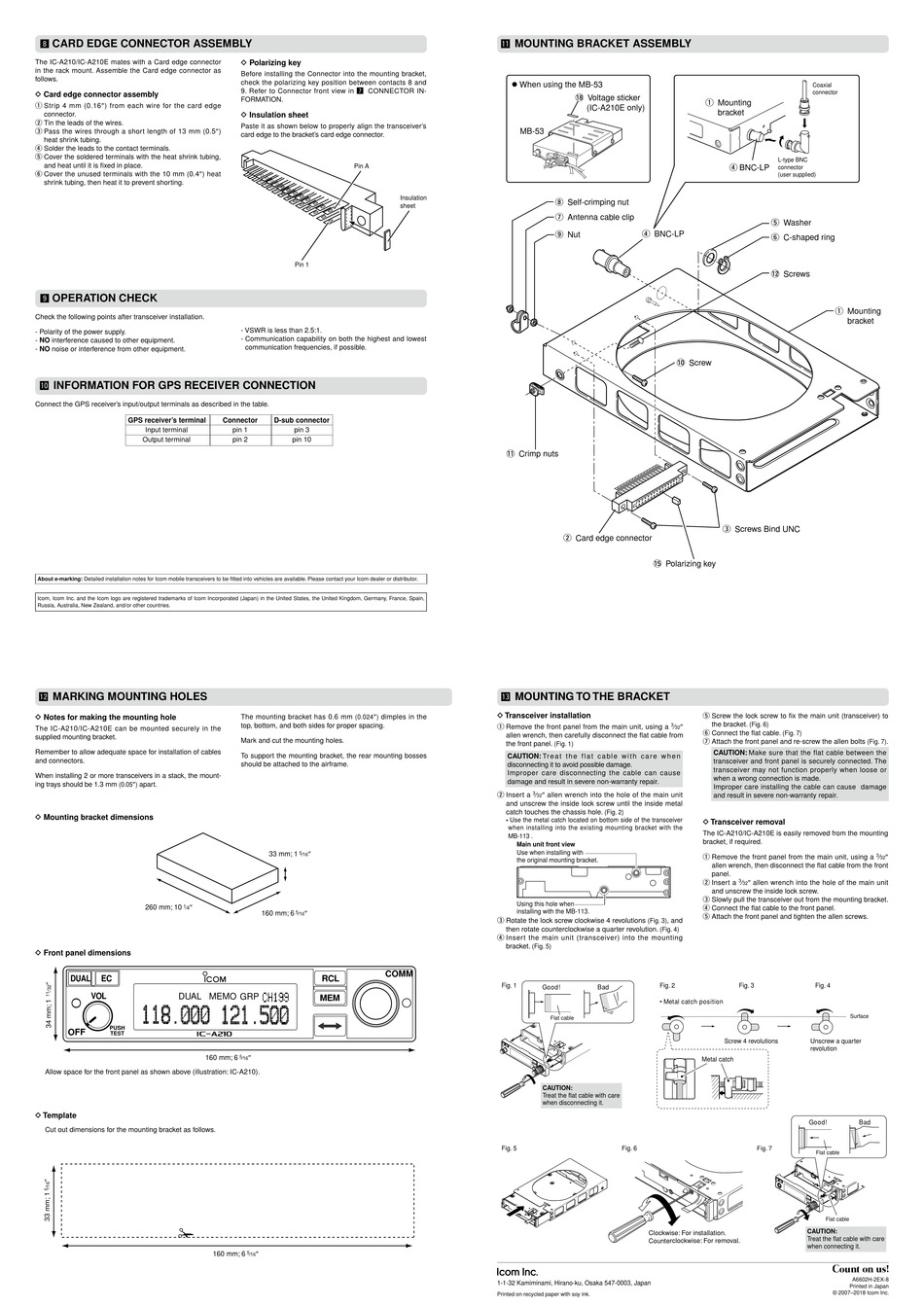

, CARD EDGE CONNECTOR ASSEMBLY
The IC-A210/IC-A210E mates with a Card edge connector
in the rack mount. Assemble the Card edge connector as
follows.
D Card edge connector assembly
q Strip 4 mm (0.16") from each wire for the card edge
connector.
w Tin the leads of the wires.
e Pass the wires through a short length of 13 mm (0.5")
heat shrink tubing.
r Solder the leads to the contact terminals.
t Cover the soldered terminals with the heat shrink tubing,
and heat until it is fixed in place.
y Cover the unused terminals with the 10 mm (0.4") heat
shrink tubing, then heat it to prevent shorting.
. OPERATION CHECK
Check the following points after transceiver installation.
- Polarity of the power supply.
- NO interference caused to other equipment.
- NO noise or interference from other equipment.
⁄0 INFORMATION FOR GPS RECEIVER CONNECTION
Connect the GPS receiver's input/output terminals as described in the table.
GPS receiver's terminal
Input terminal
Output terminal
About e-marking: Detailed installation notes for Icom mobile transceivers to be fitted into vehicles are available. Please contact your Icom dealer or distributor.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain,
Russia, Australia, New Zealand, and/or other countries.
⁄2 MARKING MOUNTING HOLES
D Notes for making the mounting hole
The IC-A210/IC-A210E can be mounted securely in the
supplied mounting bracket.
Remember to allow adequate space for installation of cables
and connectors.
When installing 2 or more transceivers in a stack, the mount-
"
ing trays should be 1.3 mm (0.05 ) apart.
D Mounting bracket dimensions
"
260 mm; 10 1
⁄
4
D Front panel dimensions
DUAL EC
DUAL MEMO
VOL
PUSH
OFF
TEST iA210
160 mm; 6
Allow space for the front panel as shown above (illustration: IC-A210).
D Template
Cut out dimensions for the mounting bracket as follows.
D Polarizing key
Before installing the Connector into the mounting bracket,
check the polarizing key position between contacts 8 and
9. Refer to Connector front view in m CONNECTOR IN-
FORMATION.
D Insulation sheet
Paste it as shown below to properly align the transceiver's
card edge to the bracket's card edge connector.
Pin A
Pin 1
- VSWR is less than 2.5:1.
- Communication capability on both the highest and lowest
communication frequencies, if possible.
Connector D-sub connector
pin 1 pin 3
pin 2 pin 10
"
The mounting bracket has 0.6 mm dimples in the
(0.024 )
top, bottom, and both sides for proper spacing.
Mark and cut the mounting holes.
To support the mounting bracket, the rear mounting bosses
should be attached to the airframe.
"
33 mm; 1 5
⁄
16
"
160 mm; 6 5
⁄
16
COMM
RCL
GRP
MEM
"
5
⁄
16
"
160 mm; 6
5 ⁄
16
⁄1 MOUNTING BRACKET ASSEMBLY
When using the MB-53
MB-53
Insulation
i Self-crimping nut
sheet
u Antenna cable clip
o Nut
!1 Crimp nuts
w Card edge connector
⁄3 MOUNTING TO THE BRACKET
D Transceiver installation
q Remove the front panel from the main unit, using a
allen wrench, then carefully disconnect the flat cable from
the front panel. (Fig. 1)
CAUTION: Tr e a t t h e f l a t c a b l e w i t h c a r e w h e n
disconnecting it to avoid possible damage.
Improper care disconnecting the cable can cause
damage and result in severe non-warranty repair.
" allen wrench into the hole of the main unit
w Insert a 3
⁄
32
and unscrew the inside lock screw until the inside metal
catch touches the chassis hole.
• Use the metal catch located on bottom side of the transceiver
when installing into the existing mounting bracket with the
MB-113 .
Main unit front view
Use when installing with
the original mounting bracket.
Using this hole when
installing with the MB-113.
e Rotate the lock screw clockwise 4 revolutions
then rotate counterclockwise a quarter revolution.
r Insert the main unit (transceiver) into the mounting
bracket.
(Fig. 5)
Fig. 1
Good!
Flat cable
CAUTION:
Treat the flat cable with care
when disconnecting it.
Fig. 5
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Printed on recycled paper with soy ink.
!8 Voltage sticker
q Mounting
(IC-A210E only)
bracket
r BNC-LP
r BNC-LP
!0 Screw
e Screws Bind UNC
!5 Polarizing key
t Screw the lock screw to fix the main unit (transceiver) to
" the bracket.
(Fig. 6)
3 ⁄
32
y Connect the flat cable.
u Attach the front panel and re-screw the allen bolts
CAUTION: Make sure that the flat cable between the
transceiver and front panel is securely connected. The
transceiver may not function properly when loose or
when a wrong connection is made.
Improper care installing the cable can cause damage
and result in severe non-warranty repair.
(Fig. 2)
D Transceiver removal
The IC-A210/IC-A210E is easily removed from the mounting
bracket, if required.
q Remove the front panel from the main unit, using a
allen wrench, then disconnect the flat cable from the front
panel.
" allen wrench into the hole of the main unit
w Insert a 3
⁄
32
and unscrew the inside lock screw.
e Slowly pull the transceiver out from the mounting bracket.
r Connect the flat cable to the front panel.
t Attach the front panel and tighten the allen screws.
(Fig. 3) , and
(Fig. 4)
Bad Fig. 2 Fig. 3
• Metal catch position
Screw 4 revolutions
Metal catch
Fig. 6
Coaxial
connector
L-type BNC
connector
(user supplied)
t Washer
y C-shaped ring
!2 Screws
q Mounting
bracket
(Fig. 7)
(Fig. 7) .
"
3 ⁄
32
Fig. 4
Surface
Unscrew a quarter
revolution
Good! Bad
Flat cable
Flat cable
CAUTION:
Treat the flat cable with care
when connecting it.
A6602H-2EX-8
