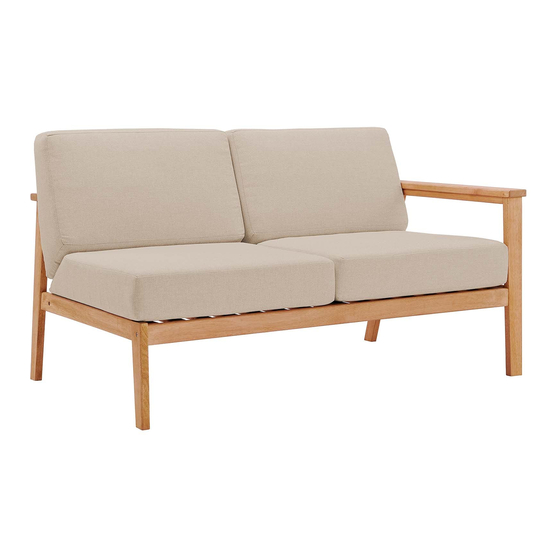

modway EEI-3678-NAT-TAU Manual

EEI-3678/3679-NAT-TAU
Thank you for purchasing the MODWAY CHAIR!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
EEI-3678
Component:
1
4
Customer Service 609-256-9000 www.modway.com
CHAIR
EEI-3679
The assembly steps are the same as EEI-3678
3
2
5
Hardware: Hardware:
A A
Bolt M6x110mm x 1 Bolt M6x110mm x 1
B B
Bolt M6x90mm Bolt M6x90mm
C
Bolt M6x70mm
D Nut M6
E Screw M6x60mm x 1
F F Screw M6x40mm x 8 Screw M6x40mm x 8
G G
Allen Wrench M4 x 2 Allen Wrench M4 x 2
1. Back
2. Seat
3. Leg Frame 1
4. Leg Frame 2
5. Brace Rail
6. Back Cushion
7. Seat Cushion
6
6
7
7
x 1 x 1
x 3
x 5
x1
x2
x1
x1
x1
x2
x2
