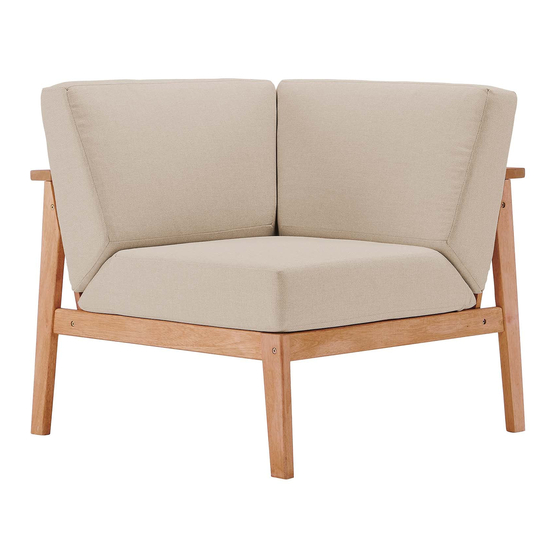

modway EEI-3680-NAT-TAU CORNER Manual

EEI-3680-NAT-TAU CORNER
Thank you for purchasing the MODWAY CORNER!
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the corner, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Component:
1
7
Customer Service 609-256-9000 www.modway.com
1. Back 1
2. Leg 1
3. Back 2
4. Leg 2
3
2
6
5
Hardware:
A
B
C
D
E
F
G
x1
x1
x1
x1
8
4
Bolt M6x110mm
Bolt M6x70mm
Nut M6
Screw M6x60mm
Screw M6x45mm
Screw M6x40mm
Allen Wrench M4
5. Brace Rail
6. Seat
7. Leg Frame
8. Back Cushions
9. Seat Cushion
8
9
Page 1 of 5
x 2
x 3
x 5
x 3
x 2
x 4
x 2
x1
x1
x1
x2
x1
