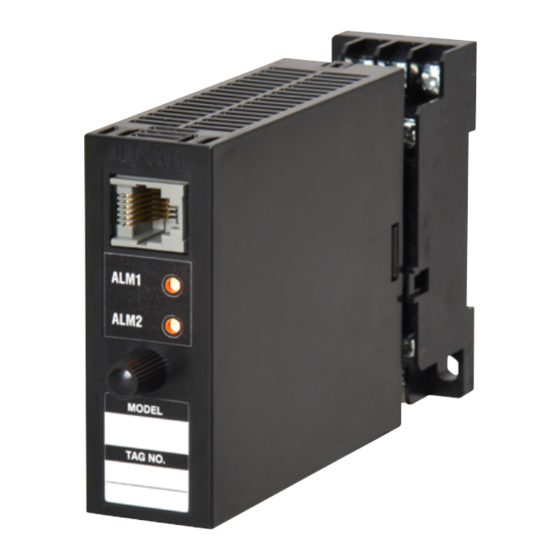

YOKOGAWA JUXTA VJQ8 User Manual

Userʼs
Model VJQ8
Pulse to Analog Converter
Manual
(Multi-function)
(Isolated Single-output and Isolated Dual-
output Types)
Thank you for purchasing the JUXTA Signal Conditioner.
Please read through this manual before use for correct handling.
CAUTIONARY NOTES FOR SAFE USE OF THE
PRODUCT
This User's Manual should be carefully read before installing
and operating the product. Please keep this User's Manual for
future reference.For more information of the safety precautions,
please refer to the "Precautions on the Use of the JUXTA
Series (IM 77J01A00-91Z1)". The related manuals and general
specifications are shown in the table below.
Doc. Name
Precautions on the Use of the JUXTA Series (User's
Manual)
Model VJQ8 Pulse to Analog Converter (User's Manual)
Model VJQ8 Pulse to Analog Converter (General
Specifications)
User's manuals in the above table are essential parts of the
product; keep it in a safe place for future reference.
This manual is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance
of the equipment.
• Personnel responsible for normal daily operation of the
equipment.
The following symbol is used on the product and in this manual to
ensure safe usage.
WARNING
Calls attention to actions or conditions that could
cause serious or fatal injury to the user, and indicates
precautions that should be taken to prevent such
occurrences.
CAUTION
Calls attention to actions or conditions that could
cause injury to the user or damage to the instrument
or property and indicates precautions that should be
taken to prevent such occurrences.
QR Code
The product has a QR Code pasted for efficient plant
maintenance work and asset information management.
It enables confirming the specifications of purchased products
and user's manuals.
For more details, please refer to the following URL.
https://www.yokogawa.com/qr-code
* QR Code is a registered trademark of DENSO WAVE
INCORPORATED.
IM 77J01Q08-01E
8th Edition July 2023(YK)
Doc. Number
IM 77J01A00-91Z1
IM 77J01Q08-01E
(This manual)
GS 77J01Q08-01E
1
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/im/
CHECKCHECKING PRODUCT SPECIFICA-
TIONS AND PACKAGE
(1) Checking the Model and Product Specifications
Check that the model and specifications indicated on the
nameplate attached to the main unit are as ordered.
(2) Packaged Items
Check that the package contains the following items:
• VJQ8: 1 unit
Standard Accessories:
• Tag number label: 1 sheet
• Range label: 1 sheet
• Socket (T9093FL): 1 piece
(when /SN option is not specified.)
• Shunt resistor:1 piece
(When optional code /R□ is specified)
• User's Manual (IM 77J01Q08-01E
• User's manual (IM 77J01A00-91Z1): 1 copy
GENERAL
This compact plug-in type pulse-to-analog converter receives
pulse signals from the field and converts them into isolated DC
current or DC voltage signals.
this manual): 1 copy
,
