YOKOGAWA JUXTA VJP8 Series User Manual

User's
Model VJP8
Pulse Rate Converter
Manual
(Multi-function)
(Isolated Single-output and Isolated Dual-
output Types)
Thank you for purchasing the JUXTA Signal Conditioner.
Please read through this manual before use for correct handling.
CAUTIONARY NOTES FOR SAFE USE OF THE
PRODUCT
This User's Manual should be carefully read before installing and
operating the product. Please keep this User's Manual for future
reference.
Doc. Name
Model VJP8 Pulse Rate Converter (User's Manual)
Model VJP8 Pulse Rate Converter (General Specifications) GS 77J01P08-01E
User's manuals in the above table are essential parts of the
product; keep it in a safe place for future reference.
This manual is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance
of the equipment.
• Personnel responsible for normal daily operation of the
equipment.
The following symbol is used on the product and in this manual to
ensure safe usage.
WARNING
Calls attention to actions or conditions that could
cause serious or fatal injury to the user, and indicates
precautions that should be taken to prevent such
occurrences.
CAUTION
Calls attention to actions or conditions that could
cause injury to the user or damage to the instrument
or property and indicates precautions that should be
taken to prevent such occurrences.
CHECKING PRODUCT SPECIFICATIONS
AND PACKAGE
(1) Checking the Model and Product Specifications
Check that the model and specifications indicated on the
nameplate attached to the main unit are as ordered.
(2) Packaged Items
Check that the package contains the following items:
• VJP8: 1 unit
• Tag number label: 1 sheet
• Range label: 1 sheet
• Shunt resistor (when optional code "/R" is specified): 1
piece
• User's Manual (this manual): 1 copy
IM 77J01P08-01E
5th Edition Aug. 2020 (YK)
Doc. Number
IM 77J01P08-01E
(This manual)
1
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/im/
GENERAL

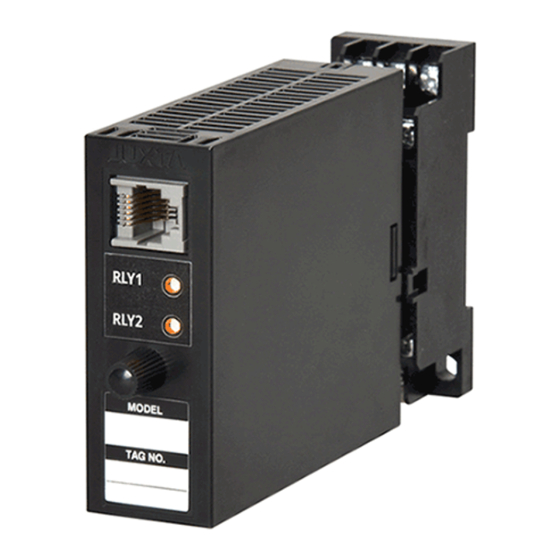

The VJP8 is a plug-in pulse rate converter that receives contact,
voltage or current pulse from a field, and converts it into isolated
transistor-contact pulse or contactless AC switch pulse at a preset
pulse rate. The VJP8 can also be used as a pulse signal repeater
by setting the pulse rate and pulse width type.
• Either pulse output or communication function (RS-485) is
selectable as Output-2.
• Various parameters can be set and modified using a PC
(VJ77 (sold separately)) or Handy Terminal (JHT200 (sold
separately)) and the like.
MODEL AND SUFFIX CODES
Model Suffix codes
VJP8
-0 □ □ -□ □ □ 0
-0
Output 1
configuration
2
Power supply 6
7
Transmitter Power -1
Supply
-2
Output-1 1
3
Output-2 1
3
P
N
Options
*1 Operating range: 85-264 V
*2 Operating range: 12-36 V
Description
/□ Pulse Rate Converter
(Multi-function)
Always -0
1 output
2 outputs
100-240 V AC/DC
(*1)
15-30V DC
(*2)
12V DC±10%
24V DC±10%
Open collector
Contactless AC switch
Open collector
Contactless AC switch
Communication (RS-485)
None
0 Always 0
Blank: With socket
/SN
Without socket
/R With 200 Ω shunt resistor
(Specify when current pulse input.)
