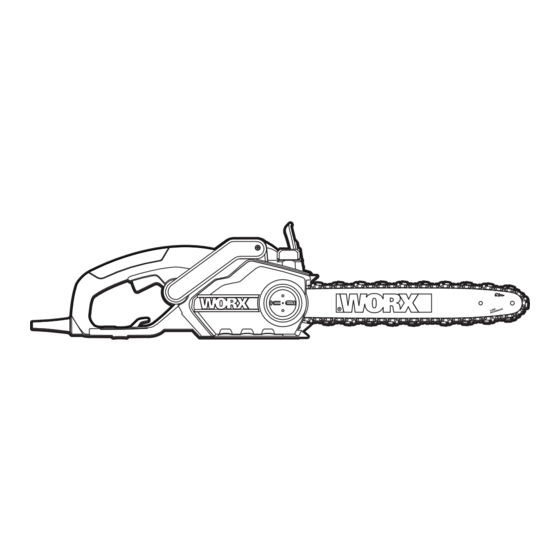

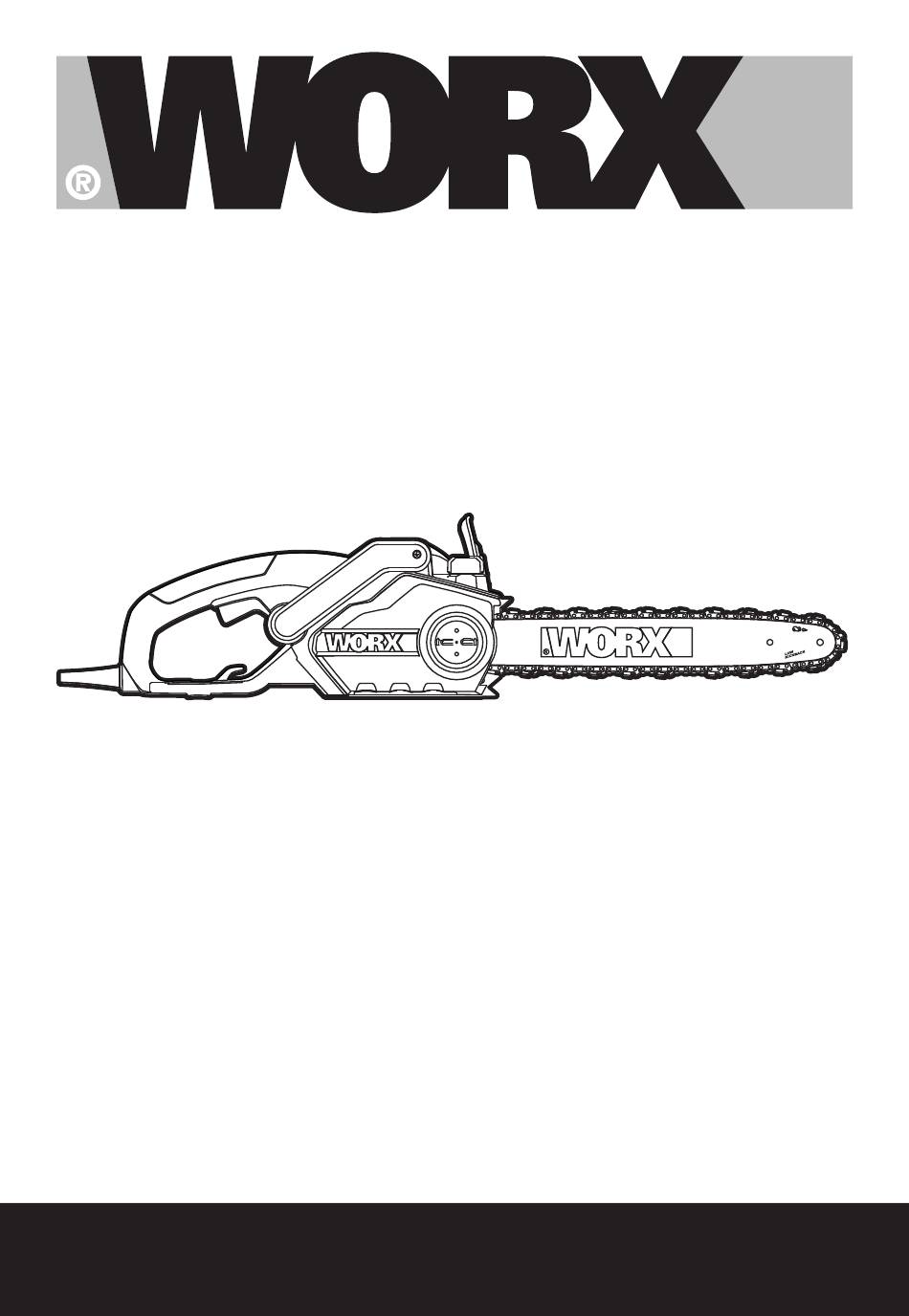

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS Chain Saw WG303E WG303E.X...
-
Page 2: General Power Tool Safety Warnings
When operating a power tool collection facilities, ensure these are outdoors, use an extension cord connected and properly used. Use of suitable for outdoor use. Use of a cord Chain Saw WG303E WG303E.X... -
Page 3: Chain Saw Safety Warnings
When those intended could result in a hazardous the tension in the wood fibres is released situation. the spring loaded limb may strike the operator and/or throw the chain saw out of control. Chain Saw WG303E WG303E.X... - Page 4 Do not rely cleared as necessary before cuts are started. exclusively upon the safety devices built into The escape path should extend back and your saw. As a chain saw user, you should Chain Saw WG303E WG303E.X...
- Page 5 When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut as illustrated in Figure 2. Branches under tension should be cut from the bottom up to avoid binding the chain saw. Chain Saw WG303E WG303E.X...
- Page 6 Don’t let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chain saw. Always stop the motor before moving from tree to tree. Fig.5 Fig.6 Chain Saw WG303E WG303E.X...
- Page 7 Contact of the guide bar tip with any object should be avoided Do not use one handed when operating the chain saw. Always use two hands when operating the chain saw. Double insulation. Do not expose to rain Chain Saw WG303E WG303E.X...
- Page 8 14 15 Chain Saw WG303E WG303E.X...
- Page 9 15. GUIDE FINS FOR CHAIN BAR 16. OIL OUTLET 17. FASTENING BOLT 18. CHAIN TENSIONING CATCH 19. OIL LEVEL GAUGE(SEE FIG. H) 20. CHAIN CATCHER (SEE FIG. C2) Not all the accessories illustrated or described are included in standard delivery. Chain Saw WG303E WG303E.X...
-
Page 10: Technical Data
TECHNICAL DATA Type WG303E WG303E.X (3- designation of machinery, representative of Chain Saw) WG303E WG303E.X * Voltage 220-240V~50/60Hz Rated power 2000W Bar length 400mm Chain speed 12m/s Oil tank capacity 200ml Chain pitch 3/8” Number of chain links Chain gauge 0.05”... - Page 11 If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10 C or less. Plan your work schedule to spread any high vibration tool use across a number of days. Chain Saw WG303E WG303E.X...
-
Page 12: Chain And Guide Bar Assembly
CHAIN AND GUIDE BAR ASSEMBLY 1. Unpack all parts carefully. 2. Place the chain saw on a solid, level surface. 3. Use only genuine WORX chains designed for chainbar. 4. Slide the chain (8) in the slot around the chain bar (7). -
Page 13: Tensioning Chain
1. Set chain saw on any suitable surface with oil filler cap facing upward. 2. Clean area around the oil filler cap with cloth unscrew cap. 3. Add Worx chain saw oil until reservoir is full. Chain Saw WG303E WG303E.X... -
Page 14: Operation
Push front hand guard (5) forwards (position ) and start the chain saw. The chain must not start. To deactivate the kickback brake, pull hand guard (5) backwards (position ). and release On/Off switch (2) Chain Saw WG303E WG303E.X... - Page 15 If there is no oil pattern, despite a full oil reservoir, see “Troubleshooting” or contact WORX customer service agent or approved service agent. Kickback (See Fig. G) Kickback is the sudden backward/upward motion of the...
- Page 16 Use of the saw to thin out branches or bushes is not approved. Length cuts must be carried out with care, as leverage with the gripping teeth(9)is not possible. Saw at a flat angle to avoid kickback. Chain Saw WG303E WG303E.X...
-
Page 17: Maintenance
180° to allow even wear, thus extending chain bar life. Check drive sprocket. If it is worn out or damaged due to strain, have it exchanged by an authorized service agent. Chain Saw WG303E WG303E.X... - Page 18 Do not place other objects on the chain saw. To prevent leakage ensure machine is left in a horizontal position (oil filler cap 4 uppermost). When storing machine in original packaging the oil tank must be completely emptied. Chain Saw WG303E WG303E.X...
-
Page 19: Troubleshooting
In the case of all other types of technical faults, please contact helpline or local service center. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Chain Saw WG303E WG303E.X... -
Page 20: Declaration Of Conformity
IMPORTANT Declare that the product, The wires in the mains lead are colored in Description Worx Chain saw accordance with the following code: Type WG303E WG303E.X (3-designation Blue = Neutral of machinery, representative of Chain Brown = Live Saw) As the colors of the wires in the mains lead of... - Page 21 Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P . R. China Chain Saw WG303E WG303E.X...
- Page 24 Copyright © 2021, Positec. All Rights Reserved. AR01166303...
