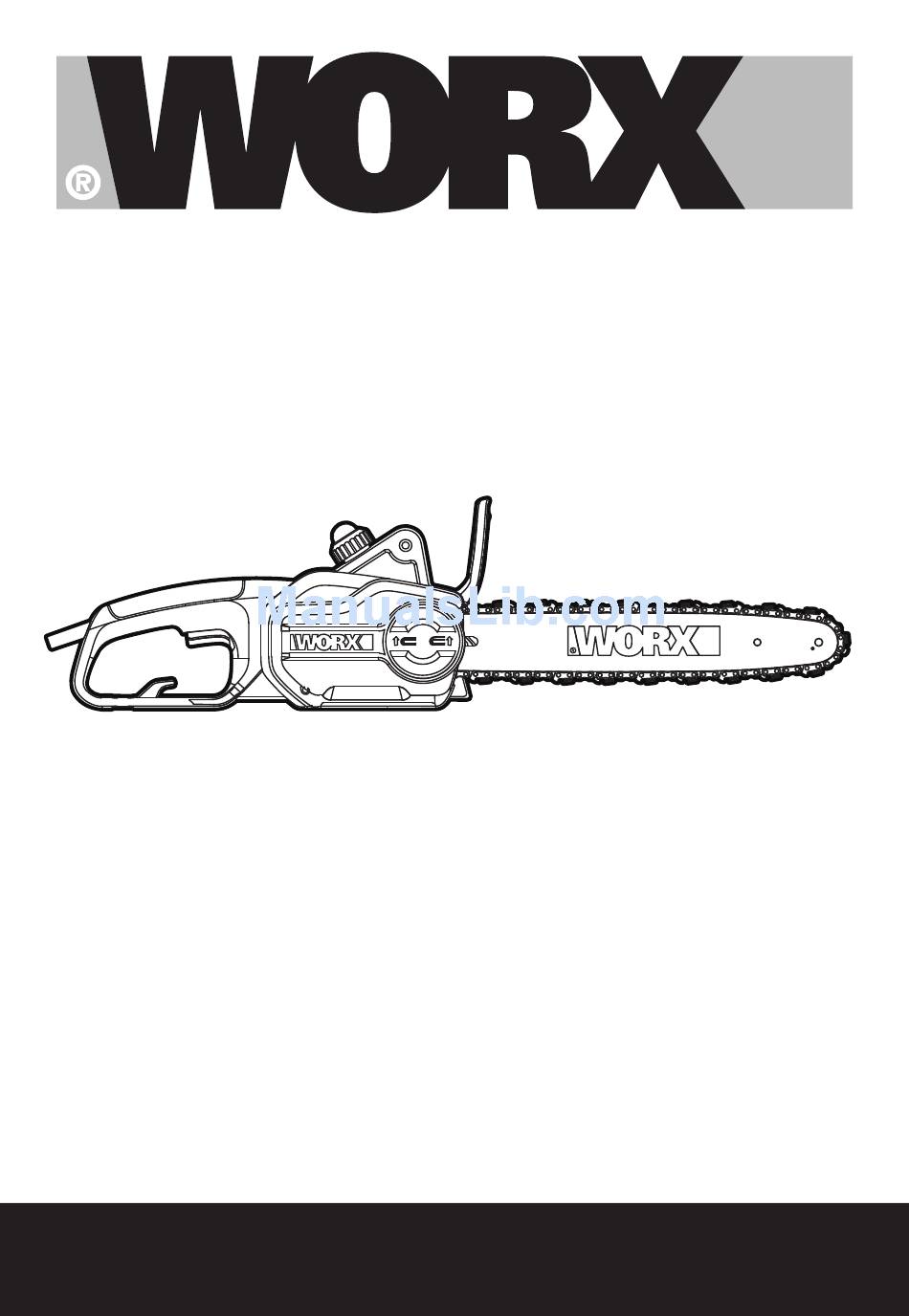

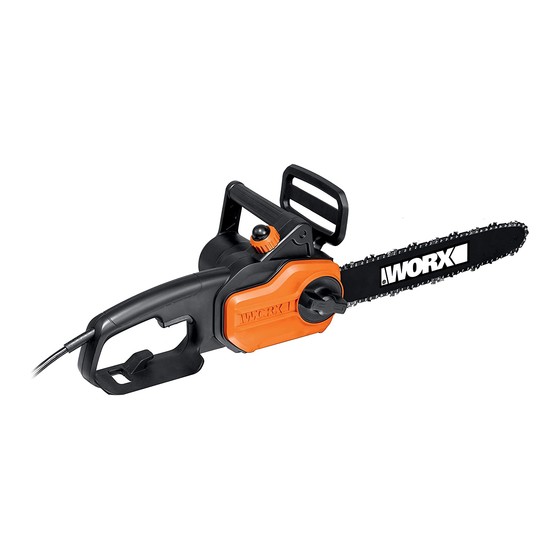

  • Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS Chain saw WG305E...

  • Page 3: General Power Tool Safety Warnings

    Keep moving parts. Loose clothes, jewellery or cord away from heat, oil, sharp long hair can be caught in moving parts. edges or moving parts. Damaged Chain saw WG305E...

  • Page 4: Chain Saw Safety Warnings

    When the work to be performed. Use of the tension in the wood fibres is released the power tool for operations different the spring loaded limb may strike the Chain saw WG305E...
  • Page 5 Do not rely An escape path should be planned and Chain saw WG305E...
  • Page 6 ( ). Be alert for overhead limbs falling and watch your footing. Figure.5 Figure.4 Figure.1 50 mm 50 mm Figure.5 Fig.VI Chain saw WG305E Figure.2...
  • Page 7 SYMBOLS When the log is supported on one end, as Figure.3 illustrated in Figure 4, cut 1/3 the diameter from the underside (underbuck) (1). Then WARNING make the finished cut by overbucking (2) to meet the first cut. Read the manual Figure.4 Wear eye protection Figure.4...
  • Page 9 19. FASTENING BAR HOLE 20. BAR LOCATING TABS 21. BAR AND CHAIN STORAGE/TRANSPORTATION COVER(SHEATH)* 22. BAR TENSIONING PLATE (See Fig. A) 23. PUMP BUTTON/BULB * Not all the accessories illustrated or described are included in standard delivery. Chain saw WG305E...

  • Page 10: Technical Data

    TECHNICAL DATA WG305E (3- designation of machinery, representative of chain saw ) Type Voltage 230-240V~ 50Hz Power 1100W Bar length 25cm Chain speed 8.5m/s Oil tank capacity 120ml Chain pitch 3/8” Number of chain drive links Chain gauge 0.050’’ Saw Chain type...
  • Page 11 Chain Guide Bar Transportation cover We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Chain saw WG305E...

  • Page 12: Chain And Chain Bar Assembly

    CHAIN AND CHAIN BAR ASSEMBLY 1. Unpack all parts carefully. 2. Place the chain saw on a solid, level surface. 3. Use only genuine WORX chains or those recommended for Guide Bar. 4. Slide the Chain (10) in the slot around the Guide Bar (9).
  • Page 13 (See Fig. E2) NOTE: The Chain (10) is properly tensioned when it can be lifted off of the Guide Bar (9) and the drivelink is within the rail of the Guide Bar (9). Chain saw WG305E...
  • Page 14 To oil chain, press Bulb (23). Oil will feed through the Oil Outlet (17) onto the Guide Bar (9) and chain. Press Bulb (23) on Oil Filler Cap at least once before each cut (See Fig. F). Chain saw WG305E...

  • Page 15: Operation

    This will turn the saw on. Releasing the trigger will turn the saw off. Make sure the saw is running at full speed before starting a cut. (6) When starting a cut, slowly place moving chain Chain saw WG305E...
  • Page 16 Never use a dull or loose chain. Keep chain sharp with proper tension. How to use Saw Safely 1. Use the chain saw only with secure footing. 2. Hold the chain saw at the right-hand side of your body (See Fig. J). Chain saw WG305E...

  • Page 17: Maintenance And Storage Of Chain Saw

    When not in use • Before moving from one place to another • Before servicing • Before changing accessories or attachments, such as saw chain and guard 2. Inspect chain saw before and after each use. Check Chain saw WG305E...

  • Page 18: Bar Maintenance

    Check for broken or damaged parts. Do not use chain saw if damage affects safety or operation. Have damage repaired by authorized service center. To locate an authorized service center, visit www.worx.com. 3. Maintain chain saw with care. •...
  • Page 19 WARNING: Wear heavy duty gloves when performing any maintenance or service to this tool. Always unplug the tool before performing any service or maintenance on this tool. NOTE: It is not necessary to remove the chain or bar when Chain saw WG305E...

  • Page 20: Environmental Protection

    Repeat the lubrication procedure. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Chain saw WG305E...

  • Page 21: Troubleshooting

    Chain tension too loose Adjust locking knob Dull chain Sharpen chain or replace Chain saw rips, vibrates, Chain worn out Replace chain does not saw properly Chain teeth are facing in the Reassemble with chain in correct wrong direction direction Chain saw WG305E...

  • Page 22: Plug Replacement

    Declare that the product, accordance with the following code: Description WORX Chain saw Blue – Neutral Type WG305E (3-designation of Brown – Live machinery, representative of Chain Saw) As the colors of the wires in the mains lead of Function cutting wood...
