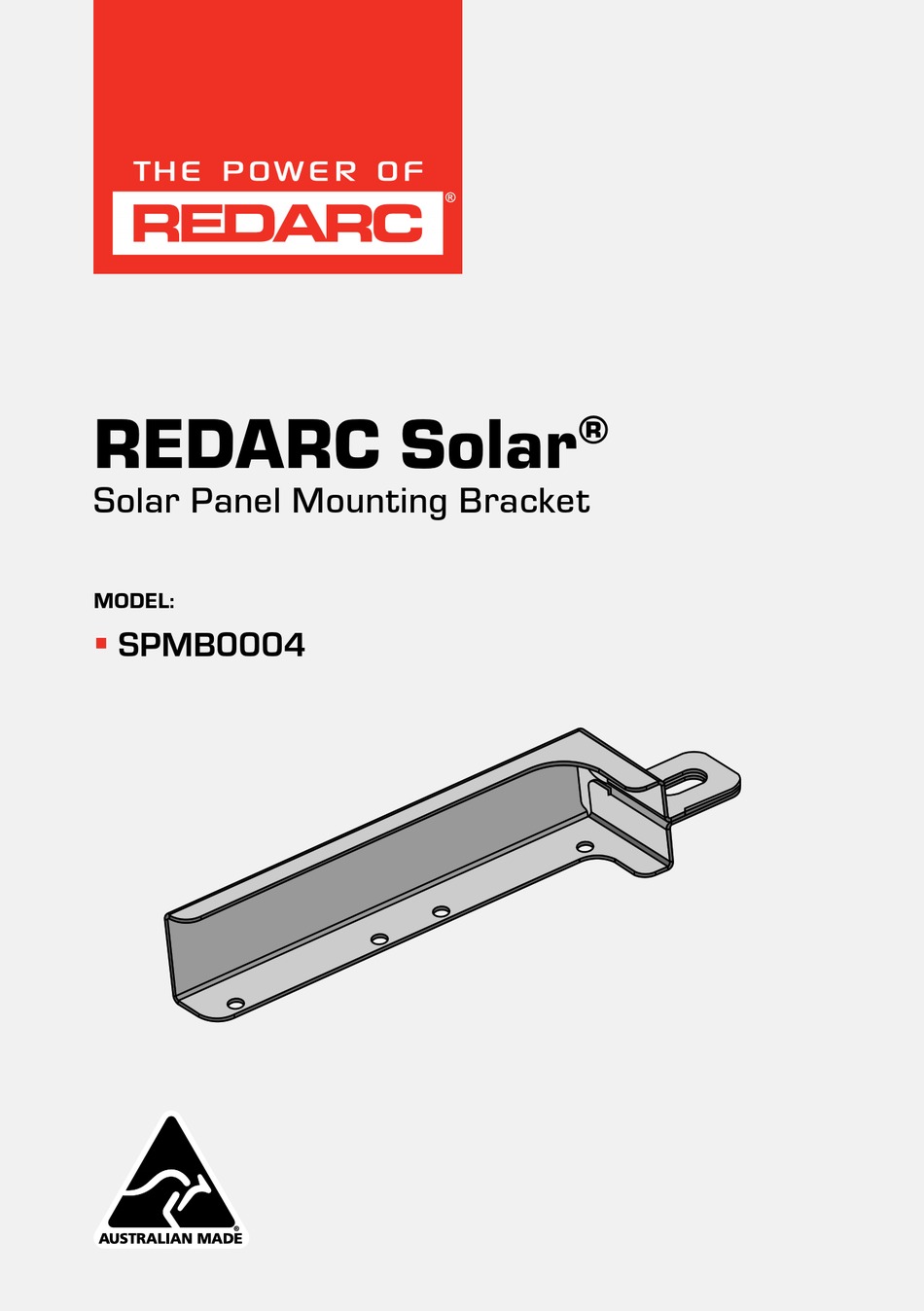

- Page 1 REDARC Solar ® Solar Panel Mounting Bracket MODEL: SPMB0004 ƒ...
- Page 2 Solar Panel Mount Bracket The SPMB0004 Solar Brackets is designed and compatible to mount solar panels to Unistrut Series Channel systems and EzyStrut Plain Channel systems. The suitability of this product depends on the vehicle and solar panel used with the mounting bracket. The solar panel can have a maximum thickness of 35 mm (1.3").
- Page 3 Do not install the mounting brackets unless you have read and understood this manual. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products.
- Page 4 SOLAR BRACKET PARTS 1. Solar Panel Bracket 5. M8 Channel Nut Supplied with 4 brackets. Supplied with 4 nuts. 2. M6 S/S Nyloc Nut 6. M8 × 20 mm S/S Allen Key Bolt Supplied with 16 nuts. Supplied with 4 bolts. 3. M6 × 12 mm S/S Flat Washer 7.
- Page 5 INSTALLATION DETERMINE THE MOUNTING POSITION The Solar Brackets must be bolted and fitted to the solar panel then mounted to the crossbars. Do not install the Solar Brackets to the crossbars first. To determine where to bolt each mounting bracket to the solar panel, measure the distance between the channel of the two crossbars on the vehicle.
- Page 6 ASSEMBLE BRACKETS TO PANEL Slide the Solar Bracket over the solar panel edge and align Solar Panel it with the drilled holes Use the Nyloc Nuts, M6 Flat Washers and M6 Bolts supplied to fix the brackets to the solar panel. CAUTION Leave adequate clearance around the Solar Panels to ensure the panels do not become partially shaded when...
- Page 7 +52 (558) 526-2898 Design and specifications are subject to change without notice. | Copyright © 2022 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd. | REDARC®, THE POWER OF REDARC®, and REDARC Solar®...
- Page 8 CONTACT Tech Support 1300 REDARC Head Office +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 redarc.com.au +1 (704) 247 5150 Canada +1 (604) 260 5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST139-3...
